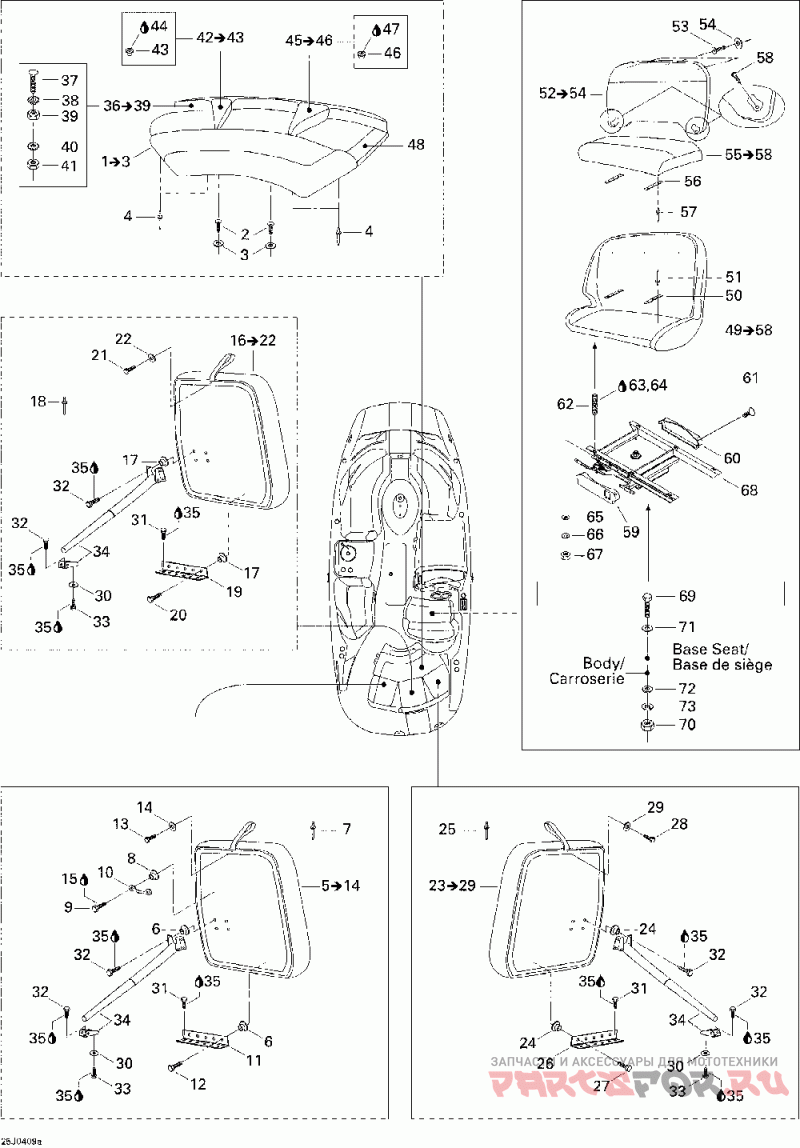

09- seat (driver seat and rear seat)

Sea-Doo (Bombardier) Islandia, 250 OPTI, 240 EFI

Sea-Doo (Bombardier)
#oem кодцена
3
234062600
Шайба
4
293150013
Заклепка 3/16
5
204612909
Dossier Ass.*backrest Assy/port Includes 5 To 14
6
204100021
Tee-nut 4-prong 1/4x20-ss
7
293150043
Заклепка 3/16
8
204100044
Tee-nut 3-prong 10-32/ss
9
204100045
Screw-socket Ctsk.fl.hd.cap 10-32x .75
10
204610988
Ancrage-chaine *eye-pad/chain
11
204610750
Charn.dossier *hinge-backrest
12
204100035
"screw-socket Bn.hd. 1/4x20x3/4"""
13
204100054
"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4"""
14
234042600
Шайба
15
293800060
Фиксатор резьбы loctite-243
16
204612911
Dossier Ass.*backrest Assy/cent. Includes 16 To 22
23
204612913
Dossier Ass.*backrest Assy/stbd. Includes 23 To 29
31
204100036
"screw-socket Bn.hd. 1/4x20x1-1/4"""
32
204100037
"screw-socket Bn.hd. 1/4x20x1"""
34
204610749
Support-barrure*support-locking
37
204000130
Bolt-elevator
38
234461608
Washer-lock Serrated Din.6798a-a2
39
211100026
Nut-hexagonal 1/4-20
40
234082600
Шайба
49
204612922
Siege Cond.ass.*seat-driver Assy. Includes 49 To 58
50
293740007
Bande-velcro *strip-velcro
51
293150065
Rivet *rivet(tec-plus)
52
204612924
Dossier Ass.*backrest Assy. Includes 52 To 54
53
293730014
Пистон черный
55
204612926
Coussin Ass.*cushion Assy. Includes 55 To 58
56
293740004
Bande-velcro *strip-velcro
57
293150008
Заклепка 3/16
58
209943260
Screw-tapp.ctsk.ov.hd.din.7983c-a2
59
204610375
Protect.avant *protector-front
60
204610376
Protect.arriere*protector-rear
61
293730006
Пистон черный
62
204100077
"stud-threaded 1/4""-20 X 1 1/4"" Ss"
63
293800005
Смазка Loctite 271
64
293800041
Appret Loctite *primer-loctite
65
211200019
Washer-flat 1/4 Ss-316
66
211200025
"rondelle Frein *washer-lock 1/4"""
67
212000005
Nut-stop Elastic Ms-17830
68
204611540
Base Pivot. *base-swivel/slide
69
207185560
Винт
70
232581600
Гайка
71
234081600
Шайба
73
234181601
Шайба Din.127b-a2
