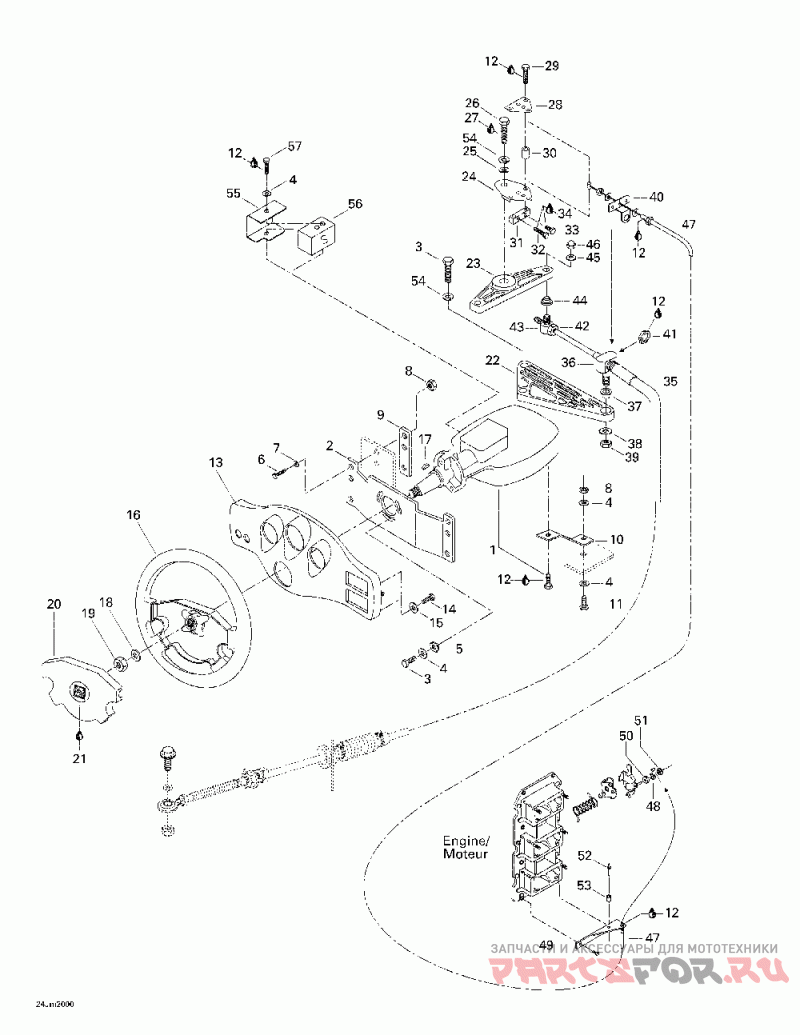

Рулевая система

Sea-Doo (Bombardier) Speedster, 5690

Sea-Doo (Bombardier)
#oem кодцена
1
204390244
Gouvernail Ass.*helm-assy.
2
204390247
Supp.conduite *support-steering
3
211000050
Screw-hex.s.grip #2353 Yellow
4
234062600
Шайба
5
234481608
Washer-lock Serrated Din.6798a-a2
6
207163060
Винт
7
234061600
Шайба
8
232561600
Гайка стопорная эластичная 985-A2
9
204390130
Plaque Renfort *plate-reinf.
10
204390243
Supp.conduite *support-steering
11
208662560
Винт
12
293800060
Фиксатор резьбы loctite-243
15
234042600
Шайба
16
204390440
Volant Direct.*wheel-steering/blk.
17
277000384
Шпонка
18
211200006
Washer-flat Stlss 1/2
19
211100021
Nut-locking
20
204390076
Centre Volant *center-steering
21
413705800
Loctite 414 *loctite-414
22
204390125
Support Cable *support-cable
23
204390250
Bras Gouvernail*arm-helm
25
204390057
Втулка
26
211000054
Screw-hex.s.grip #2353 Yellow
27
293800005
Смазка Loctite 271
28
204390267
Att.sup.cable *clip-upper
29
207162560
Винт
30
277000584
Втулка
31
204390056
Bloc Ajustement*block-adjustment
32
207153560
Винт
33
207152560
Винт
35
204390212
Cable Direct. *cable-steering
36
277000461
Pivot 3/8 *pivot-3/8
37
293350014
Douille Epaul. *flange Bushing
38
234001600
Шайба
39
211100024
Nut-locking
42
277000439
Ecrou 5/16-24 *nut-5/16-24
43
277000456
Pivot Teleflex *pivot-teleflex
44
293350012
Втулка
45
211200019
Washer-flat 1/4 Ss-316
46
212000005
Nut-stop Elastic Ms-17830
48
204390180
Кольцо уплотнитнльное
50
204390268
Attache Cable *attach-cable/lsc
51
204390269
Couvre Cable *cover-cable/lsc
52
293150006
Заклепка
54
211200025
"rondelle Frein *washer-lock 1/4"""
55
204390245
Sup.butee Gouv.*support-helm Bumper
56
204390246
Butee Gouvern. *bumper-helm
57
204100014
"screw-hex 1/4""-20 X 2 1/2"" Ss-304"
