Рулевая система

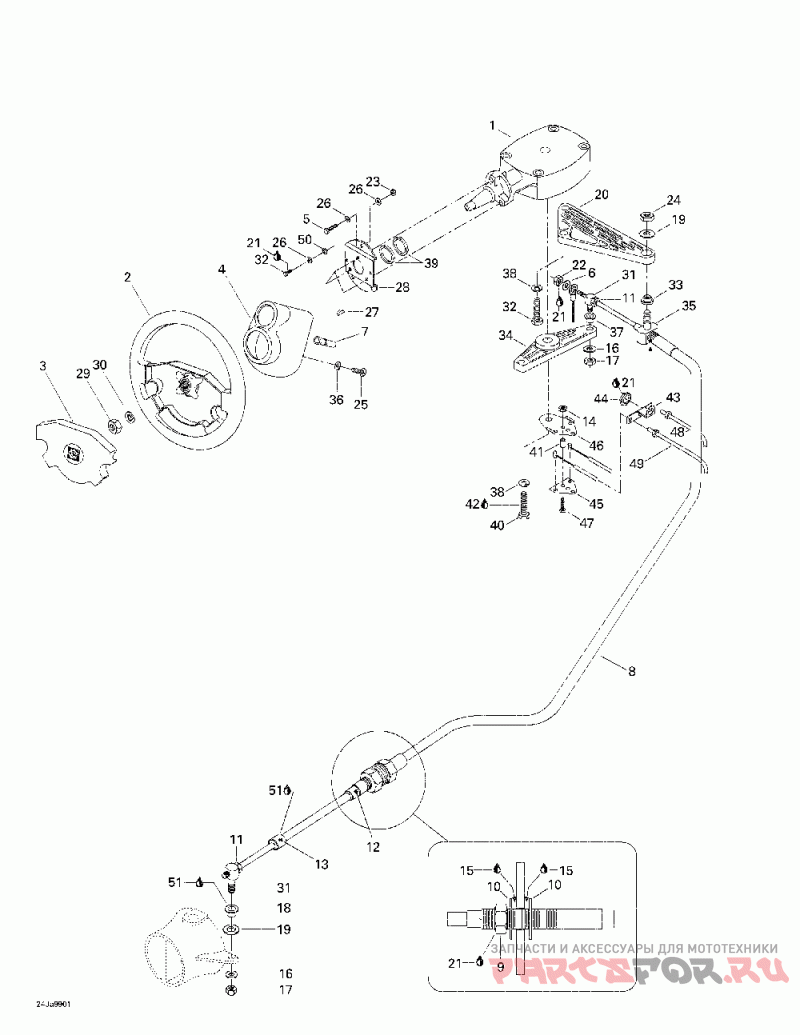

Sea-Doo (Bombardier) Challenger, 5672

Sea-Doo (Bombardier)
#oem кодцена
1
204390038
Gouvernail Ass.*helm-assy.
2
204390440
Volant Direct.*wheel-steering/blk.
5
207163060
Винт
6
234080600
Шайба DIN.433A2 (отпуск.по 10 шт)
7
204070238
Люверс
8
204390144
Cable Direct. *cable-steering Includes 8 - 10.
11
277000439
Ecrou 5/16-24 *nut-5/16-24
12
277000440
Env.etanche *swivel-seal
13
277000441
Racleur *wiper-terminal
14
232561600
Гайка стопорная эластичная 985-A2
16
211200019
Washer-flat 1/4 Ss-316
17
212000005
Nut-stop Elastic Ms-17830
18
204390134
Douille-buse A1*sleeve-nozzle A1
19
234001600
Шайба
20
277000458
Support Cable *support-cable
21
293800060
Фиксатор резьбы loctite-243
24
211100024
Nut-locking
25
241142560
Screw-pt.hex.flange K40 X 25
26
234061600
Шайба
27
277000384
Шпонка
28
277000383
Supp.gouvernail*supp-helm
29
211100021
Nut-locking
30
211200006
Washer-flat Stlss 1/2
31
277000456
Pivot Teleflex *pivot-teleflex
32
211000050
Screw-hex.s.grip #2353 Yellow
33
293350014
Douille Epaul. *flange Bushing
34
204390040
Bras *arm
35
277000461
Pivot 3/8 *pivot-3/8
36
234042600
Шайба
37
293350012
Втулка
38
211200025
"rondelle Frein *washer-lock 1/4"""
39
277000593
Втулка
40
211000054
Screw-hex.s.grip #2353 Yellow
41
277000584
Втулка
42
293800005
Смазка Loctite 271
43
204390035
Support Cable *support-cable
44
204390053
Nut-hex.jam
45
204390267
Att.sup.cable *clip-upper
48
204390065
Cable Accelerat*cable-lh.
49
204390066
Cable Accelerat*cable-rh.
50
234461608
Washer-lock Serrated Din.6798a-a2
51
293550010
Graisse Synth. *grease-synth.
