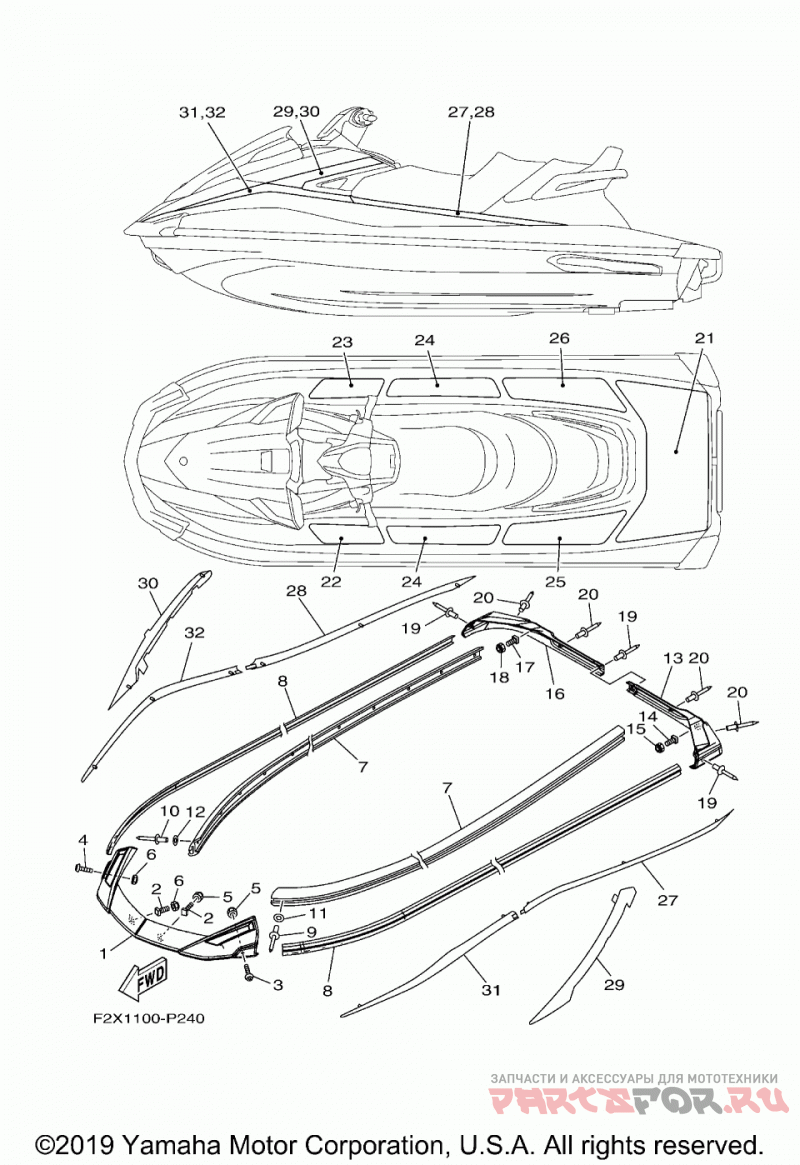

Фальшборт и маты

Yamaha VX CRUISER HO (VC1800U)

Yamaha
#oem кодцена
1
F2X-U2511-10-00
GUNWALE, BOW (YB)
10
90267-489U8-00
Заклёпка
11
9299R-05200-00
Шайба
12
9299R-05200-00
Шайба
13
F2X-U251D-10-00
GUNWALE, STERN 1 (YB)
14
F1W-U491K-00-00
Болт
15
F2N-U142L-00-00
Гайка
16
F2X-U251E-10-00
GUNWALE, STERN 2 (YB)
17
F1W-U491K-00-00
Болт
18
F2N-U142L-00-00
Гайка
19
90267-48825-00
Заклёпка
2
F1W-U491K-00-00
Болт
20
90267-48825-00
Заклёпка
21
F2X-U3581-01-00
MAT, UPPER
22
F2X-U351H-00-00
MAT, STEP 1
23
F2X-U351J-00-00
MAT, STEP 2
24
F2X-U351K-00-00
MAT, STEP 3
25
F2X-U351M-00-00
MAT, STEP 4
26
F2X-U351N-00-00
MAT, STEP 5
27
F2X-U89A8-50-00
ORNAMENT, STERN LH (PURW)
27
F2X-U89A8-41-00
ORNAMENT, STERN LH (RED)
28
F2X-U89A9-41-00
ORNAMENT, STERN RH (RED)
28
F2X-U89A9-50-00
ORNAMENT, STERN RH (PURW)
29
F2X-U89AA-50-00
ORNAMENT, MIDDLE LH (PURW)
29
F2X-U89AA-41-00
ORNAMENT, MIDDLE LH (RED)
3
90110-06191-00
BOLT, HEXAGON SOCKET HEAD
30
F2X-U89AB-50-00
ORNAMENT, MIDDLE RH (PURW)
30
F2X-U89AB-41-00
ORNAMENT, MIDDLE RH (RED)
31
F2X-U89AC-50-00
ORNAMENT, BOW LH (PURW)
31
F2X-U89AC-41-00
ORNAMENT, BOW LH (RED)
32
F2X-U89AD-50-00
ORNAMENT, BOW RH (PURW)
32
F2X-U89AD-41-00
ORNAMENT, BOW RH (RED)
4
90110-06191-00
BOLT, HEXAGON SOCKET HEAD
5
F2N-U142L-00-00
Гайка
6
F2N-U142L-00-00
Гайка
7
F2X-U2512-10-00
GUNWALE, SIDE (YB)
8
F2X-U2519-B0-00
INNER,GUNWALE (ORANGE)
8
F2X-U2519-60-00
INNER,GUNWALE (WHITE)
9
90267-489U8-00
Заклёпка
