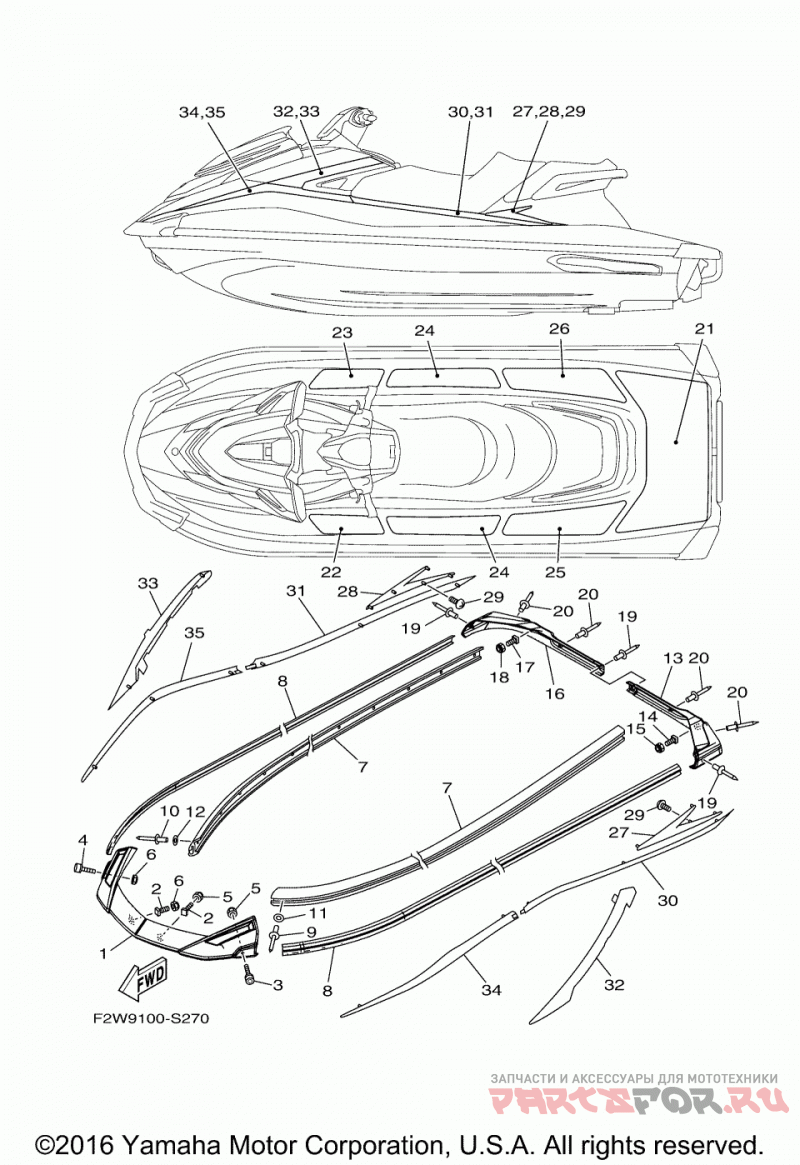

Фальшборт и маты

Yamaha VXR (VX1800AS)

Yamaha
#oem кодцена
1
F2X-U2511-20-00
GUNWALE, BOW (PURW)
2
F1W-U491K-00-00
Болт
3
90110-06191-00
BOLT, HEXAGON SOCKET HEAD
4
90110-06191-00
BOLT, HEXAGON SOCKET HEAD
5
F2N-U142L-00-00
Гайка
6
F2N-U142L-00-00
Гайка
7
F2X-U2512-20-00
GUNWALE, SIDE (PURW)
8
F2X-U2519-90-00
INNER,GUNWALE (GREEN)
8
F2X-U2519-10-00
INNER,GUNWALE (YB)
9
90267-489U8-00
Заклёпка
10
90267-489U8-00
Заклёпка
11
9299R-05200-00
Шайба
12
9299R-05200-00
Шайба
13
F2X-U251D-20-00
GUNWALE, STERN 1 (PURW)
14
F1W-U491K-00-00
Болт
15
F2N-U142L-00-00
Гайка
16
F2X-U251E-20-00
GUNWALE, STERN 2 (PURW)
17
F1W-U491K-00-00
Болт
18
F2N-U142L-00-00
Гайка
19
90267-48825-00
Заклёпка
20
90267-48825-00
Заклёпка
21
F2X-U3581-01-00
MAT, UPPER
22
F2X-U351H-00-00
MAT, STEP 1
23
F2X-U351J-00-00
MAT, STEP 2
24
F2X-U351K-00-00
MAT, STEP 3
25
F2X-U351M-00-00
MAT, STEP 4
26
F2X-U351N-00-00
MAT, STEP 5
27
F2W-U517W-00-00
ORNAMENT, LH
28
F2W-U517X-00-00
ORNAMENT, RH
29
F2W-U13C1-01-00
Винт
30
F2X-U89A8-00-00
ORNAMENT, STERN LH (YB)
30
F2X-U89A8-50-00
ORNAMENT, STERN LH (PURW)
31
F2X-U89A9-00-00
ORNAMENT, STERN RH (YB)
31
F2X-U89A9-50-00
ORNAMENT, STERN RH (PURW)
32
F2X-U89AA-00-00
ORNAMENT, MIDDLE LH (YB)
32
F2X-U89AA-50-00
ORNAMENT, MIDDLE LH (PURW)
33
F2X-U89AB-50-00
ORNAMENT, MIDDLE RH (PURW)
33
F2X-U89AB-00-00
ORNAMENT, MIDDLE RH (YB)
34
F2X-U89AC-00-00
ORNAMENT, BOW LH (YB)
34
F2X-U89AC-50-00
ORNAMENT, BOW LH (PURW)
35
F2X-U89AD-00-00
ORNAMENT, BOW RH (YB)
35
F2X-U89AD-50-00
ORNAMENT, BOW RH (PURW)
