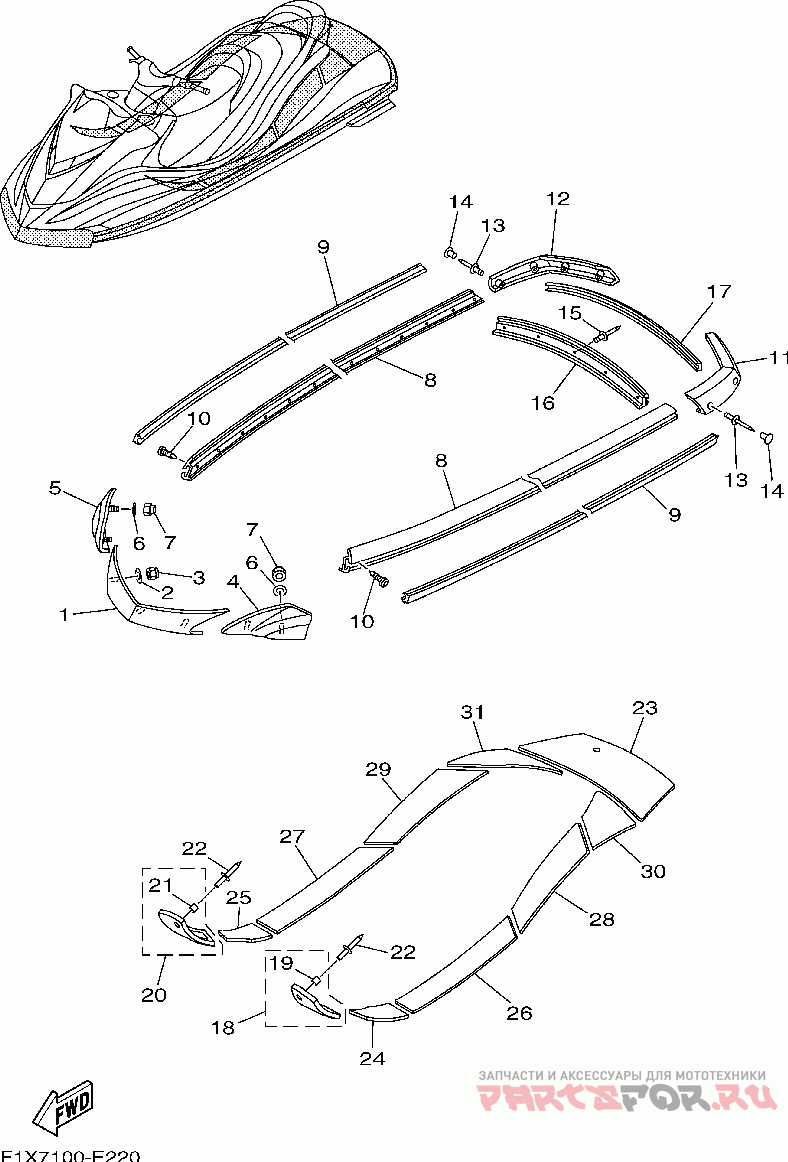

Gunwale mat

Yamaha FX1100B-E /FX1100B-E /FX1100B-E

Yamaha
#oem кодцена
1
F1S-U2501-02-00
Bow Gunwale Comp(bla Bl
2
9299R-06200-00
Шайба
3
9572R-06300-00
Гайка
4
F1S-U252E-01-00
Joint, Gunwale Lh(bl Bl
5
F1S-U252F-01-00
Joint, Gunwale Rh(bl Bl
8
F1B-U2512-10-00
Gunwale, Side(black) Yb
9
F1B-U2519-00-00
Inner, Gunwale(silver Ls 1
10
90169-059U1-00
Screw, Self Tapping
11
F1B-U251D-10-00
Gunwale, Stern 1(bla Yb
12
F1B-U251E-10-00
Gunwale, Stern 2(bla Yb
13
90267-489UT-00
Заклёпка
14
F0D-U352E-10-00
Plug, Mushroom (blac Yb
15
90267-489US-00
Заклёпка
16
F1B-U252C-10-00
Cover, Gunwale 1(bla Yb
17
F1B-U252D-01-00
Cover, Gunwale 2(gre Sg C
18
F1S-U350V-00-00
Foot, Step Lh(black) Bl
20
F1S-U350W-00-00
Foot, Step Rh(black) Bl
22
90267-48819-00
Заклёпка
23
F1S-U3581-10-00
Mat, Upper (gray) Gray
24
F1S-U351H-01-00
Mat, Step 1(gray) Gray
25
F1S-U351J-01-00
Mat, Step 2 (gray) Gray
26
F1S-U351K-10-00
Mat, Step 3 (gray) Gray
27
F1S-U351M-10-00
Mat, Step 4 (gray) Gray
28
F1S-U351N-10-00
Mat, Step 5 (gray) Gray
29
F1S-U351P-10-00
Mat, Step 6 (gray) Gray
30
F1S-U351R-10-00
Mat, Step 7 (gray) Gray
31
F1S-U351S-10-00
Mat, Step 8 (gray) Gray
