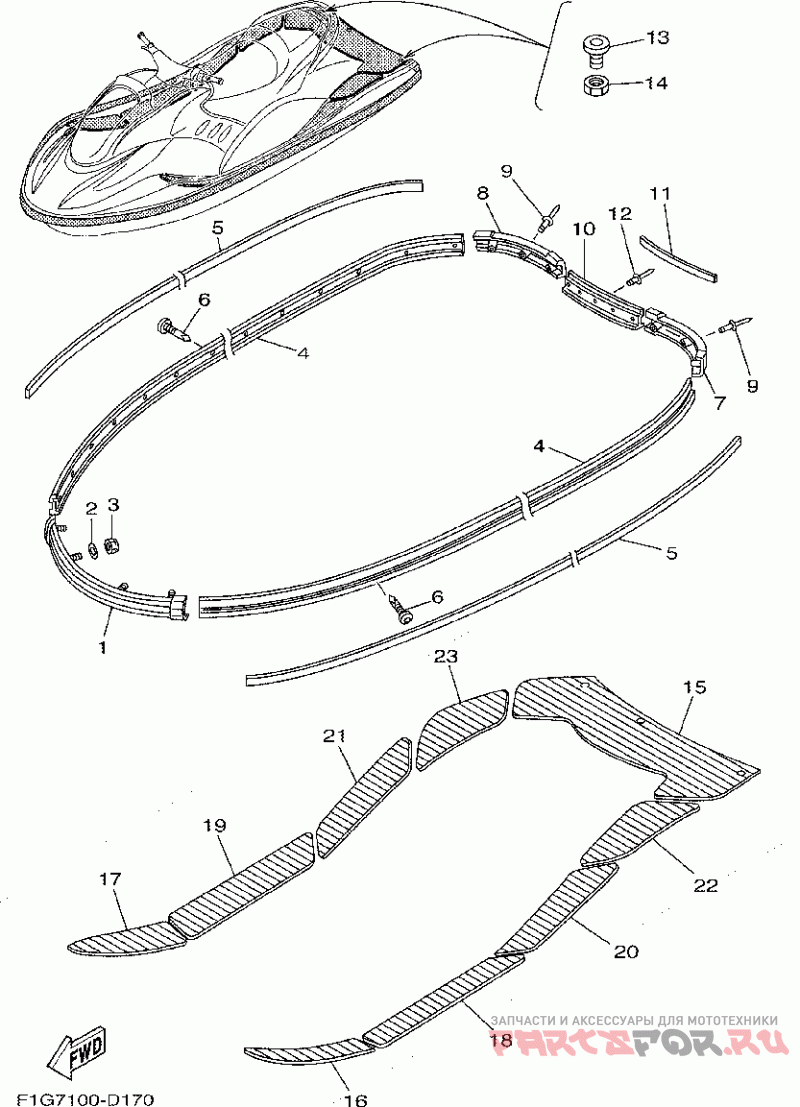

Gunwale mat

Yamaha GP1300-D_3

Yamaha
#oem кодцена
1
GP7-U2501-20-00
Bow Gunwale Comp (bl Yb, Ymus
2
9299R-06200-00
Washer Ymus
3
9572R-06300-00
Nut, Flange Ymus
4
F0X-U2512-00-00
Gunwale, Side (black Yb, Ymus
5
F0X-U2519-02-00
Gunwale,inner (black Yb, Ymus
6
90169-059U1-00
Screw, Self Tapping Ymus
7
F0X-U251D-00-00
Gunwale, Stern 1(bla Yb, Ymus
8
F0X-U251E-00-00
Gunwale, Stern 2 (bl Yb, Ymus
9
90267-47801-00
Rivet, Blind Ymus
10
F0X-U252C-00-00
Cover, Gunwale 1(bla Yb, Ymus
11
F0X-U252D-01-00
Cover, Gunwale 2(bla Yb, Ymus
12
90267-489US-00
Rivet, Blind Ymus
13
FN8-61651-01-00
Rope Hole
14
EU0-61652-00-00
Гайка
15
F1G-U3581-00-00
Mat, Upper Ymus
16
F1G-U351H-00-00
Mat, Step 1 Bl, Ymus
17
F1G-U351J-00-00
Mat, Step 2 Bl, Ymus
18
F1G-U351K-00-00
Mat, Step 3 Bl, Ymus
19
F1G-U351M-00-00
Mat, Step 4 Bl, Ymus
20
F1G-U351N-00-00
Mat, Step 5 Bl, Ymus
21
F1G-U351P-00-00
Mat, Step 6 Bl, Ymus
22
F1G-U351R-00-00
Mat, Step 7 Bl, Ymus
23
F1G-U351S-00-00
Mat, Step 8 Bl, Ymus
