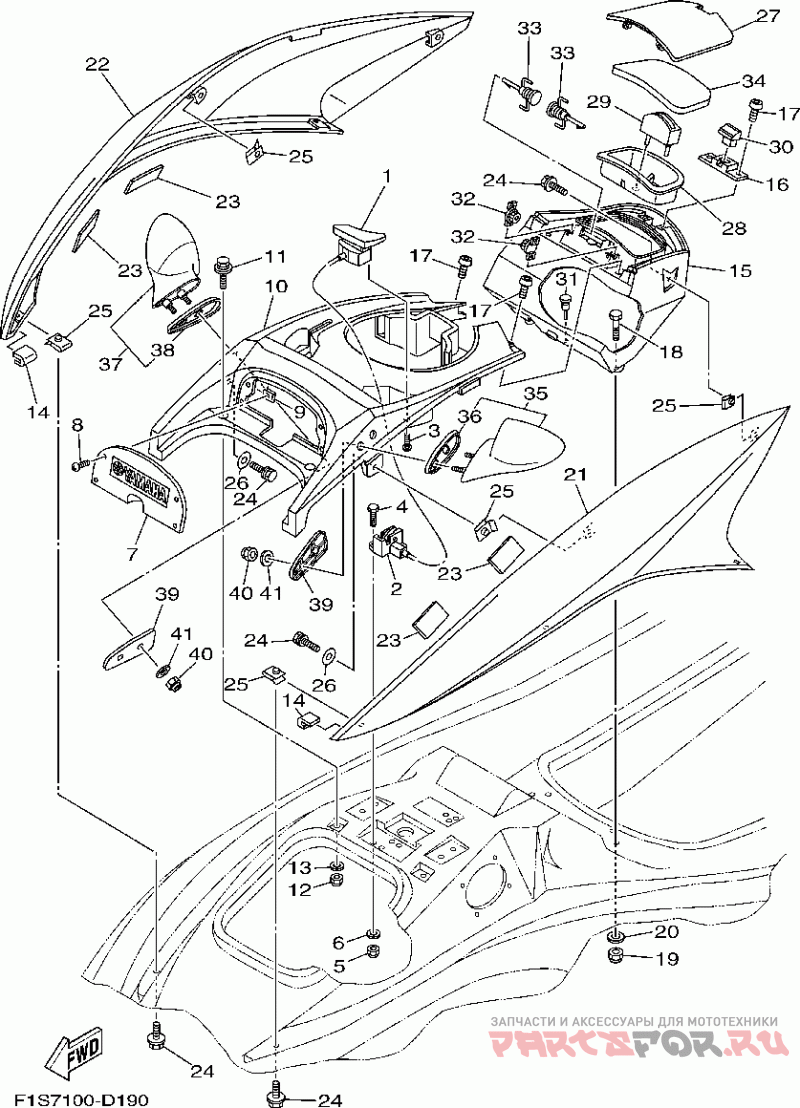

Капот

Yamaha FX Cruiser High Output-FX1100-D/FX1100-D/FX1100A-D/FX1100-D

Yamaha
#oem кодцена
1
F1B-651A1-00-00
Lever, Lid Lock
2
F1B-6517C-01-00
Замок
3
90149-05946-00
Винт (отпускается по 5 шт)
4
90119-06837-00
Bolt, With Washer Ymus
5
9572R-06300-00
Nut, Flange Ymus
6
9299R-06200-00
Washer Ymus
7
F1B-U555B-00-00
Seal, Cover Center Ymus
8
90149-05959-00
Винт (отпускается по 5 шт)
9
FJ0-61432-00-00
Гайка
10
F1B-U5554-13-00
Cover, Center Ymus
11
90119-06934-00
Bolt, W/wshr (gh1)
14
F1B-U5115-00-00
Trim, Hatch 1 Ymus
15
F1B-U516P-00-00
Box Glove Yb, Ymus
16
F1B-65193-00-00
Пластина
17
90111-06033-00
Винт, шестигранное углубление
18
97080-08030-00
Болт
19
95780-08300-00
Nut Self-locking Ymus
20
9299R-08200-00
Washer Ymus
21
F1B-U377B-20-P0
Cover,side 1(black M Smf, Ymus
21
F1B-U377B-40-P0
Cover,side 1(carbon Cruiser Dnmc, Ymus
21
F1B-U377B-50-P0
Cover,side 1(light S Cruiser Lnmp, Ymus
22
F1B-U377C-29-P0
Cover,side 2(black M Smf, Ymus
22
F1B-U377C-40-P0
Cover,side 2(carbon Cruiser Dnmc, Ymus
22
F1B-U377C-50-P0
Cover,side 2 (light Cruiser Lnmp, Ymus
23
GJ1-U759C-00-00
Mat 2 Ymus
24
90119-06858-00
Bolt, With Washer Ymus
25
90183-06902-00
Гайка пружинная
26
90201-06802-00
Washer, Plate Ymus
27
F1B-U517H-00-00
Lid Hatch Ymus
28
F1B-U5633-01-00
Holder, Drink Ymus
29
F1S-U827C-01-00
Holder Ymus
30
F0D-62875-00-00
Замок
31
90605-502U2-00
Plug Ymus
32
F1B-60210-00-00
Gear Assy
33
F1B-6517R-00-00
Палец петли
34
F1B-U519D-00-00
Packing Case Ymus
35
F0V-U596B-04-00
Mirror Lh (black) Yb, Ymus
35
F0V-U596B-10-00
Mirror Lh Cruiser, Ymus
36
F0V-U471E-00-00
Spacer, Mirror Ymus
37
F0V-U596C-04-00
Mirror Rh (black) Yb, Ymus
37
F0V-U596C-10-00
Mirror Rh Cruiser, Ymus
38
F0V-U471F-00-00
Spacer, Mirror Ymus
39
F1B-U5646-00-00
Plate Ymus
