07- body - system

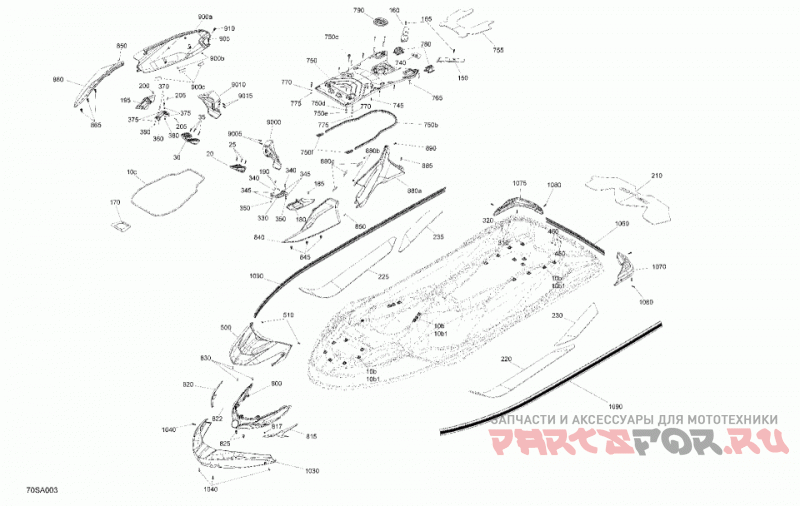

Sea-Doo (Bombardier) 006 - GTX PRO 130 iBR (Rental)

Sea-Doo (Bombardier)
#oem кодцена
1030
291004452
Front Bumper.
1040
250000828
Screw Torx M6.81 X 30.
1060
291004468
Bumper.
1070
291004465
LH Rear Bumper.
1075
291004466
RH Rear Bumper.
1080
250000828
Screw Torx M6.81 X 30.
1090
291004468
Bumper.
10b
291004813
Housing Nut M6. Includes 10b to 10b1a.
10b1
291004662
Housing Nut Overmolded. Includes 10b1 to 10b1a.
10b1a
232561200
Elastic Stop Nut M6, Brass. Not shown.
10c
293250401
Gasket.
150
291005176
LH Shim.
160
291005177
RH Shim.
165
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
170
293250451
Gasket.
180
291004661
LH Shell Cleat.
185
293730011
Black, Dart.
190
211000023
Hex. Screw 10-14 X 7/8”.
195
291004719
RH Shell Cleat.
20
291004714
LH Support.
200
293730011
Black, Dart.
205
211000023
Hex. Screw 10-14 X 7/8”.
210
291005453
Anti Slip Deck Mat.
220
291005351
LH Front Anti Slip Mat.
225
291005350
RH Front Anti Slip Mat.
230
291005353
LH Rear Anti Slip Mat.
235
291005352
RH Rear Anti Slip Mat.
25
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
30
291004715
RH Support.
310
293150016
Rivet 1/8
320
293000014
Black, Snap Cap.
330
291004559
LH Cleat.
340
207083560
Hex. Screw M8 X 35.
345
234081600
Flat Washer 8 mm, Stainless.
35
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
350
232581200
Hex. Elastic Nut M8 Brass.
360
291004720
RH Cleat.
370
207083560
Hex. Screw M8 X 35.
375
234081600
Flat Washer 8 mm, Stainless.
380
232581200
Hex. Elastic Nut M8 Brass.
400
292000933
U-Clamp. Not shown.
410
293050001
Washer Flat M8.5 x 18. Not shown.
450
234082600
Flat Washer 8 mm, Stainless.
460
232581200
Hex. Elastic Nut M8 Brass.
500
291005579
Deep Black, Hood.
510
250001087
Screw Plastite Flanged #10, 14 X 7/8
740
291004941
Hose Protector.
745
293730011
Black, Dart.
750b
293200124
Seal, 1 PAC = 3 M.
750c
291005183
Stud.
750d
234062600
Flat Washer M6, Stainless.
750e
232561200
Elastic Stop Nut M6, Brass.
750f
291004717
Seal.
755
291004668
Black, Mat Cover.
765
250000827
Screw-Torx Truss Cone HD.M6X50.
770
234062600
Flat Washer M6, Stainless.
775
232561200
Elastic Stop Nut M6, Brass.
780
295100858
LinQ Bases Kit.
800
291004454
Black, Front Grill.
815
291005533
Reef Blue, LH Trim.
817
211100002
Push Nut.
820
291005534
Reef Blue, RH Trim.
822
211100002
Push Nut.
825
293730071
Dard.
830
211000023
Hex. Screw 10-14 X 7/8”.
840
291005547
Reef Blue, LH Front Body Panel.
845
293730071
Dard.
850
211000023
Hex. Screw 10-14 X 7/8”.
860
291005548
Reef Blue, RH Front Body Panel.
865
293730071
Dard.
880a
291005541
Reef Blue, LH Central Body Panel.
880b
293830005
Rubber Bumper.
880c
278003860
Stopper.
885
250000828
Screw Torx M6.81 X 30.
890
293150230
Tuflok Plastic Rivet.
9000
291004455
LH Side Grill.
9005
250000828
Screw Torx M6.81 X 30.
900a
291005542
Reef Blue, RH Central Body Panel.
900b
293830005
Rubber Bumper.
900c
278003860
Stopper.
9010
291004456
RH Side Grill.
9015
250000828
Screw Torx M6.81 X 30.
905
250000828
Screw Torx M6.81 X 30.
910
293150230
Tuflok Plastic Rivet.
