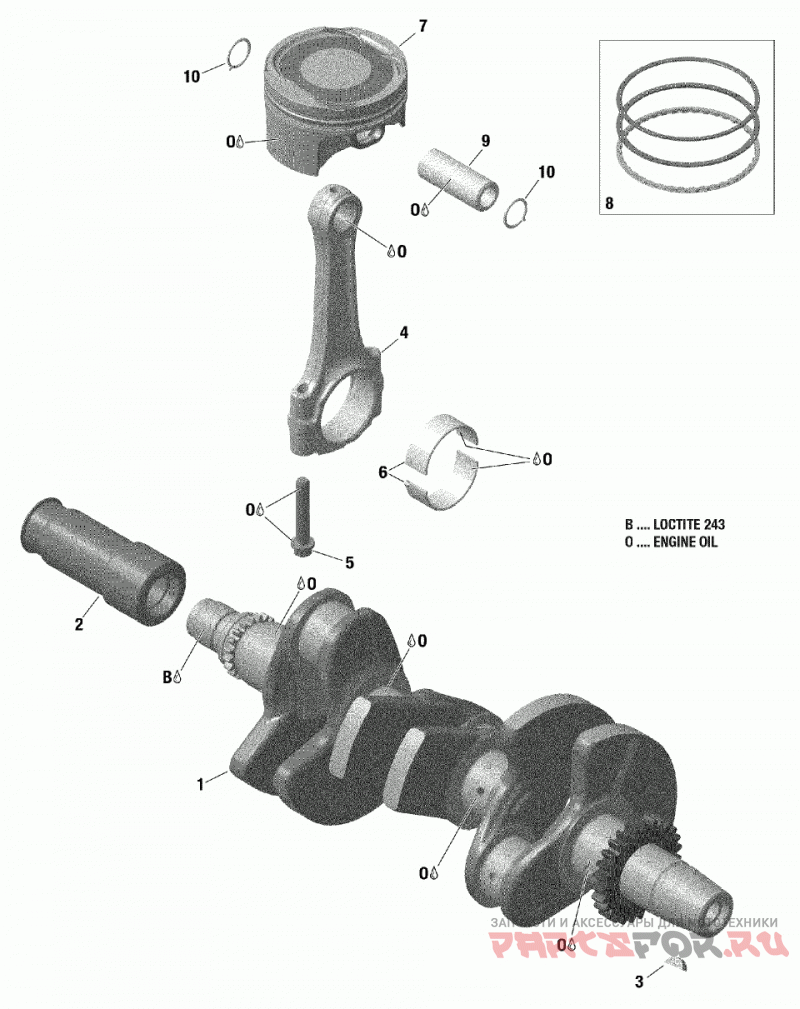

01- crankshaft and pistons - 903
Sea-Doo (Bombardier) 002 - Spark 900 HO ACE
| # | oem код | название | цена |
|---|---|---|---|
1>3 | 420819801 Crankshaft. | Crankshaft. | |
10 | 420845810 Piston Circlip. | Piston Circlip. | |
2 | 420947573 Output Sleeve. | Output Sleeve. | |
3 | 420246571 Woodruff Key. | Woodruff Key. | |
4>5 | 420917706 Connecting Rod. | Connecting Rod. | |
5 | 420641790 Connecting Rod Screw M7 X 1. | Connecting Rod Screw M7 X 1. | |
6>3 | 420933191 Plain Bearing. | Plain Bearing. | |
8 | 420892824 Piston Ring Set. | Piston Ring Set. | |
9 | 420916510 Piston Pin. | Piston Pin. |
