04- drive - propulsion / built before july 26th 2020

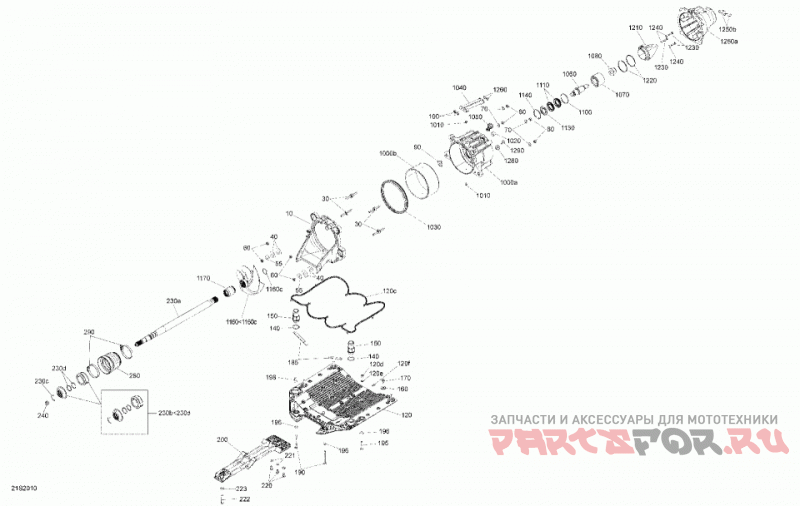

Sea-Doo (Bombardier) 001 - RXP X 300 - North America

Sea-Doo (Bombardier)
#oem кодцена
10
271001931
Pump Support.
100
293250084
Watertight Seal.
1000a
271002018
Housing Impeller.
1000b
267000917
Wear Ring.
1010
204100269
Hex. Screw 10-32 X 3/8
1020
267000469
Plug Plastic, Black.
1030
293200087
Neoprene Seal.
1040
271000785
Water Outlet.
1050
267000282
Plug.
1060
267000388
Impeller Shaft.
1070
267000900
Angled Bearing.
1080
250100104
Elastic Flanged Nut M20.
1100
293300090
O-Ring.
1110
271002071
Seal.
1130
293200089
Oil Seal.
1140
293370038
Circlip.
1160<1160c
267000951
Impeller Assembly. Includes 1160 TO 1160c.
1160c
293300044
O-Ring.
1170
267000929
Impeller Boot.
120c
271002024
Gasket.
120d
250000384
Torx Screw M6 X 14.
120e
250200114
Sealing Washer.
120f
250500005
Socket Drain Plug M6 X 12.
1210
267000428
Impeller Cover.
1220
293300086
O-Ring.
1230
205562560
Socket Head Screw M6 X 25, Scotch Grip.
1240
234061600
Stainless, Flat Washer M6.
1250a
267000845
Venturi.
1250b
271001885
Siphon Tube.
1260
293300013
O-Ring.
1280
271001920
Anode Zinc.
1290
250000965
Hex Screw M6 X 20.
140
293300121
O-Ring.
150
293710124
Strait Fitting.
160
271001920
Anode Zinc.
170
250000965
Hex Screw M6 X 20.
185
293250087
Neoprene Seal, 410 MM.
190
250000812
Hexagonal Head Cap Screw M8 X 75.
195
250000782
Hexagonal Head Cap Screw M8 X 45.
196
293050001
Washer Flat M8.5 x 18.
198
293000105
Cap Plug.
200
271001971
Pump Grate.
220
207381660
Hex. Screw M8 X 16, Scotch Grip.
221
234081600
Flat Washer 8 mm, Stainless.
222
250000782
Hexagonal Head Cap Screw M8 X 45.
223
293050001
Washer Flat M8.5 x 18.
230a
271001719
Drive Shaft.
230b<230d
295501199
Carbon Ring Kit. Includes 230b TO 230d.
230c
271001577
C-Clip.
230d
293300107
O-Ring.
240
272000173
Drive Shaft Plug.
280
271001933
Bellow.
290
293650079
Norma Clamp.
30
250300046
Square Stud.
40
272000053
Shim, 0.3 mm.
55
279000326
Flat Washer.
60
232581200
Hex. Elastic Nut M8, Brass.
70
293050001
Washer Flat M8.5 x 18.
80
232581200
Hex. Elastic Nut M8, Brass.
90
271002029
Reducer, Green.
