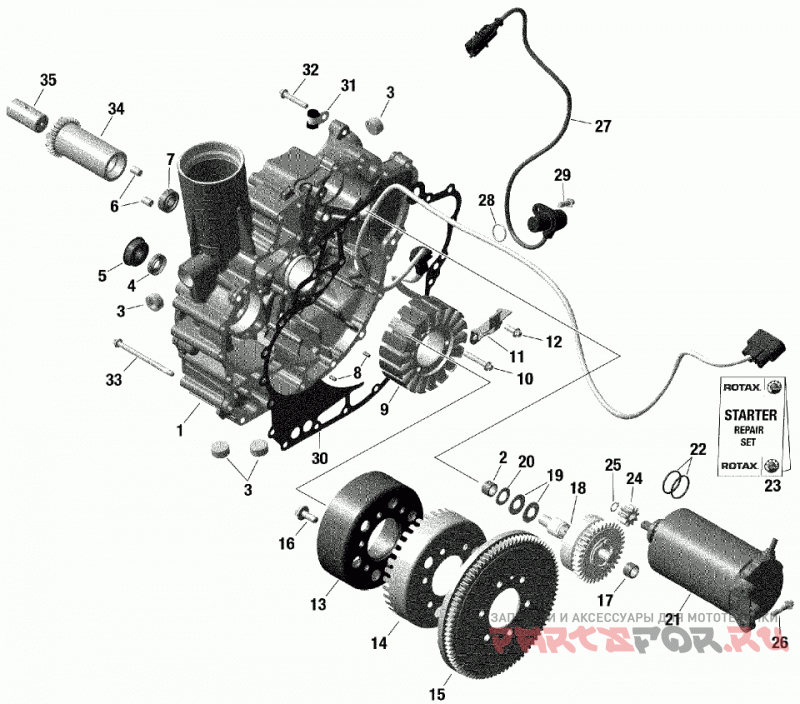

01- rotax - magneto and electric starter - with idf

Sea-Doo (Bombardier) 001 - GTX 170

Sea-Doo (Bombardier)
#oem кодцена
1
420912263
Timing Drive Cover. Includes 1 to 8.
10
420641258
Flanged Torx Screw M6 X 35.
11
420926300
Retaining Plate.
12
420641048
Flanged Torx Screw M6 X 16.
13
420296900
Magneto Flywheel.
14
420966851
Trigger Wheel.
15
420835163
Starter Gear, 86 Teeth.
16
295501162
Hex Screw.
17
420232482
Needle Bushing.
18
420888041
Starter Drive.
19
420238300
Spring Washer.
2
420232482
Needle Bushing.
20
420827280
Thrust Washer.
22
420631310
O-Ring.
23
420881340
Carbon Brush Set.
24
420834522
Starter Gear, 9 Teeth.
25
420845601
Retaining Ring.
26
420641238
Flanged Torx Screw M6 X 25.
28
420431580
O-Ring.
29
420641048
Flanged Torx Screw M6 X 16.
3
420641317
Plug Screw M20 X 1.5.
30
420931130
Gasket.
31
420853414
Clamp.
32
420641258
Flanged Torx Screw M6 X 35.
33
420641228
Flanged Torx Screw M6 X 85.
34
420820460
Input Shaft.
35
420244037
Spacer.
4
420650315
Oil Seal.
5
420650370
Rotary Seal.
6
420632010
Center Pin 8 X 12.
7
420232100
Ball Bearing.
8
420929070
Needle Pin.
9
420889728
Stator Plate.
