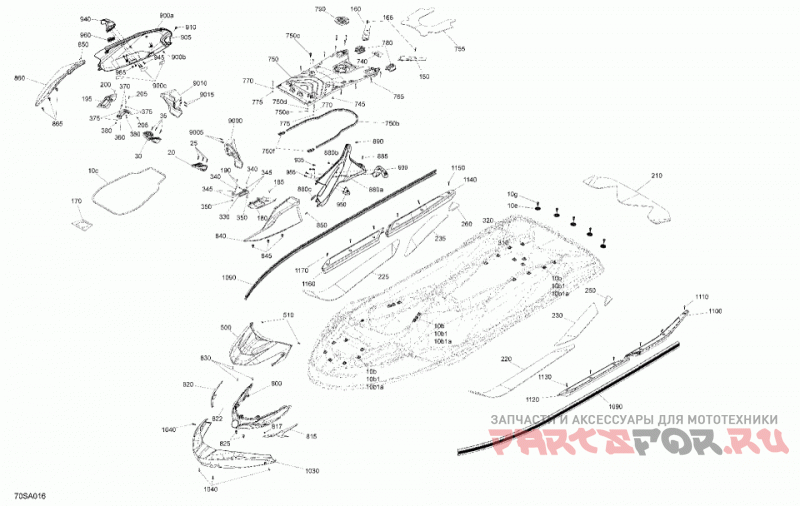

07- body - system

Sea-Doo (Bombardier) 001 - FISH PRO 170

Sea-Doo (Bombardier)
#oem кодцена
1030
291004452
Front Bumper.
1040
250000828
Screw Torx M6.81 X 30.
1090
291004468
Bumper.
10b
291004813
Housing Nut M6. Includes 10b to 10b1a.
10b1
291004662
Housing Nut Overmolded. Includes 10b1 to 10b1a.
10b1a
232561200
Elastic Stop Nut M6, Brass.
10c
293250401
Gasket.
10e
293450387
Housing Nut M8.
10g
207682534
Hex. Flanged Screw M8 X 25.
1100
291005123
Footrest Rear LH Assy. Model Olive Night.
1100
291005561
Gulfstream Blue, LH Rear Footrest. Model Flint Grey.
1110
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
1120
291005124
Footrest Front LH Assy. Model Olive Night.
1130
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
1140
291005125
Footrest Rear RH Assy. Model Olive Night.
1150
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
1160
291005126
Footrest Front RH Assy. Model Olive Night.
1170
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
150
291005176
LH Shim.
160
291005177
RH Shim.
165
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
170
293250451
Gasket.
180
291004661
LH Shell Cleat.
185
293730011
Black, Dart.
190
211000023
Hex. Screw 10-14 X 7/8”.
195
291004719
RH Shell Cleat.
20
291004714
LH Support.
200
293730011
Black, Dart.
205
211000023
Hex. Screw 10-14 X 7/8”.
210
291005019
Rear Plat-Form Carpet.
220
291005351
LH Front Anti Slip Mat.
225
291005350
RH Front Anti Slip Mat.
230
291005353
LH Rear Anti Slip Mat.
235
291005352
RH Rear Anti Slip Mat.
25
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
250
291004516
LH Anti-Skid Pad.
260
291004517
RH Anti-Skid Pad.
30
291004715
RH Support.
310
293150016
Rivet 1/8
320
293000014
Black, Snap Cap.
330
291004559
LH Cleat.
340
207083560
Hex. Screw M8 X 35.
345
234081600
Flat Washer 8 mm, Stainless.
35
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
350
232581200
Hex. Elastic Nut M8 Brass.
360
291004720
RH Cleat.
370
207083560
Hex. Screw M8 X 35.
375
234081600
Flat Washer 8 mm, Stainless.
380
232581200
Hex. Elastic Nut M8 Brass.
500
291005023
Olive Night, Hood. Model Olive Night.
500
291005549
Dusty Navy, Hood. Model Flint Grey.
510
250001087
Screw Plastite Flanged #10, 14 X 7/8
740
291004941
Hose Protector.
745
293730011
Black, Dart.
750b
293200124
Seal, 1 PAC = 3 M.
750c
291005183
Stud.
750d
234062600
Flat Washer M6, Stainless.
750e
232561200
Elastic Stop Nut M6, Brass.
750f
291004717
Seal.
755
291004668
Black, Mat Cover.
765
250000827
Screw-Torx Truss Cone HD.M6X50.
770
234062600
Flat Washer M6, Stainless.
775
232561200
Elastic Stop Nut M6, Brass.
780
295100858
LinQ Bases Kit.
800
291004454
Black, Front Grill.
815
291005529
Gulfstream Blue, LH Trim. Model Flint Grey.
815
291005038
Mango Orange, Trim LH. Model Olive Night.
817
211100002
Push Nut.
820
291005530
Gulfstream Blue, RH Trim. Model Flint Grey.
820
291005039
Mango Orange, Trim RH. Model Olive Night.
822
211100002
Push Nut.
825
293730071
Dard.
830
211000023
Hex. Screw 10-14 X 7/8”.
840
291005041
Flint Grey, Body Panel Front LH.
845
293730071
Dard.
850
211000023
Hex. Screw 10-14 X 7/8”.
860
291005040
Flint Grey, Body Panel Front RH.
865
293730071
Dard.
880a
291005583
Flint Grey, LH Central Body Panel. Includes 880a to 880a1.
880a1
291005042
Flint Frey, Body Panel Central LH. Not shown.
880b
293830005
Rubber Bumper.
880c
278003860
Stopper.
885
250000828
Screw Torx M6.81 X 30.
890
293150230
Tuflok Plastic Rivet.
9000
291004455
LH Side Grill. Without Sound System.
9005
250000828
Screw Torx M6.81 X 30. Without Sound System.
900a
291005584
Flint Grey, RH Central Body Panel. Includes 900a to 900a1.
900a1
291005043
Flint Frey, RH Central Body Panel. Not shown.
900b
293830005
Rubber Bumper.
900c
278003860
Stopper.
9010
291004456
RH Side Grill. Without Sound System.
9015
250000828
Screw Torx M6.81 X 30. Without Sound System.
905
250000828
Screw Torx M6.81 X 30.
910
293150230
Tuflok Plastic Rivet.
930
295100948
SUPPORT_ACCESSORY FL KIT.
935
250001087
Screw Plastite Flanged #10, 14 X 7/8
940
295100949
SUPPORT_ACCESSORY FR KIT.
945
250001087
Screw Plastite Flanged #10, 14 X 7/8
950
295100948
SUPPORT_ACCESSORY FL KIT.
955
250001087
Screw Plastite Flanged #10, 14 X 7/8
960
295100949
SUPPORT_ACCESSORY FR KIT.
965
250001087
Screw Plastite Flanged #10, 14 X 7/8
