Рулевая

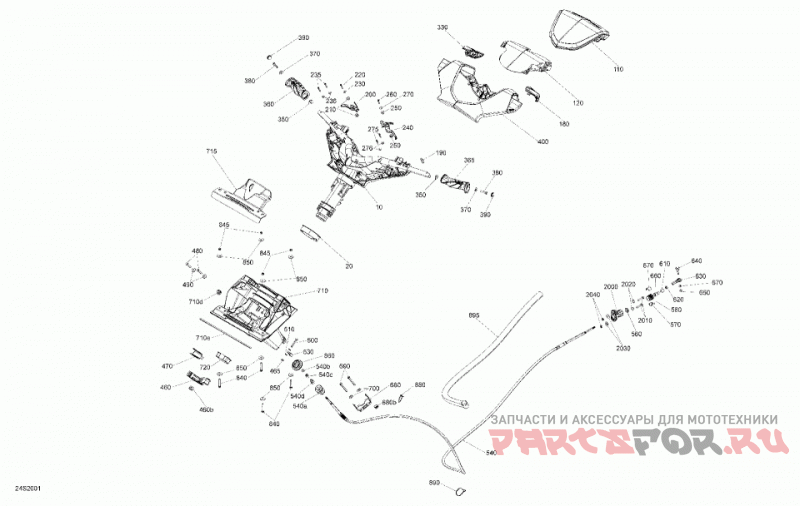

Sea-Doo (Bombardier) 005 - GTI 130 PRO (Rental)

Sea-Doo (Bombardier)
#oem кодцена
10
277001963
Steering Column.
110
277002096
Trim Steering Column Manta Green.
120
277001921
Handle Bar Foam.
180
277001860
Housing Cover LH.
190
277001887
Red, Knob Switch.
20
277001653
Wear Ring.
200
277002138
Hand Lever Accelerator.
2010
207063060
Hex. Screw M6 X 30.
2020
250200114
Sealing Washer.
2030
234062600
Flat Washer M6, Stainless.
2040
232561200
Elastic Stop Nut M6, Brass.
210
293900091
Bushing.
220
241142560
Hex. Flanged Screw K40 X 25.
230
234042600
Flat Washer 4 mm, Stainless.
235
241142560
Hex. Flanged Screw K40 X 25.
236
234042600
Flat Washer 4 mm, Stainless.
240
277001945
Reverse Handle. IBR.
250
293900091
Bushing. IBR.
260
241142560
Hex. Flanged Screw K40 X 25. IBR.
270
234042600
Flat Washer 4 mm, Stainless. IBR.
275
241142560
Hex. Flanged Screw K40 X 25. IBR.
276
234042600
Flat Washer 4 mm, Stainless. IBR.
330
277001755
Housing Cover RH.
350
277001863
Insert Grip Handle.
360
277002101
Handlebar Grip RH.
365
277002102
Handlebar Grip LH.
370
234062600
Flat Washer M6, Stainless.
380
250000002
Hex. Screw M6 X 30, Scotch Grip.
390
277000203
Black Cap.
400
277001969
Steering Cover. IBR.
400
277001970
Steering Cover. IBR-NO.
465
232561200
Elastic Stop Nut M6, Brass.
470
277001654
Spacer.
480
207163560
Hex. Screw M6 X 35.
490
234062600
Flat Washer M6, Stainless.
500
207064060
Hex. Screw M6 X 40.
510
234061600
Flat Washer M6, Stainless.
530
277001180
Ball Joint.
540a
277000782
Ajustment Knob.
540b
211100056
Hex. Nut 1/4
540c
277001582
Wiper Rod.
540d
277001583
End Piece.
560
293830063
Rubber Washer.
570
277001527
Half Ring.
580
277001729
Steering Cable Lock.
610
277001582
Wiper Rod.
620
211100056
Hex. Nut 1/4
630
277000775
Ball Joint.
640
250000970
Hex Sems Screw M6X35.
650
232561200
Elastic Stop Nut M6, Brass.
660
277001583
End Piece.
670
234061600
Flat Washer M6, Stainless.
690
207165060
Hex. Screw M6 X 50.
700
234062600
Flat Washer M6, Stainless.
710d
517302716
Cap.
710e
293250008
Gasket. 1 PAC = 1.000m.
715
293000116
Deflector.
720
277001741
Wear Ring.
840
207164060
Hex. Screw M6 X 40.
845
232561200
Elastic Stop Nut M6, Brass.
850
250200022
Flat Washer M6.6 X 22.
860
293720090
Cable Grommet.
880
414115200
Tie-Rap 180 mm.
890
293750008
Tie-Rap 350 mm.
895
276000470
Shield Corrugated 22MM - 1100MM.
