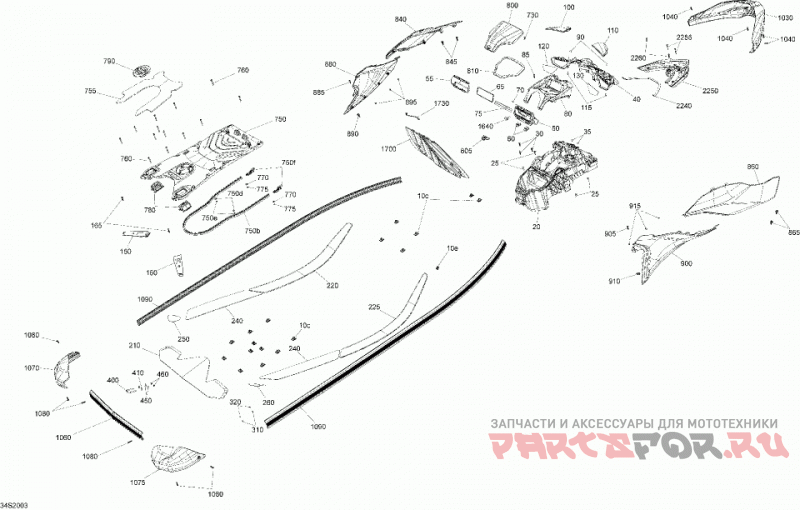

Кузов

Sea-Doo (Bombardier) 003 - GTI SE 130

Sea-Doo (Bombardier)
#oem кодцена
100
269502427
Deep Black, Mirror Cover LH.
1030
291005082
Bumper Front.
1040
250001007
Screw Torx M6.81 X 30.
1060
291005400
Bumper Lateral.
1070
291005083
Bumper Corner Rear LH.
1075
291005084
Bumper Corner Rear RH.
1080
250001007
Screw Torx M6.81 X 30.
1090
291005400
Bumper Lateral.
10c
291004813
Housing Nut M6.
10e
293750025
Tie-Rap Mount.
110
269502428
Deep Black, Mirror Cover RH.
115
211000023
Hex. Screw 10-14 X 7/8”.
120
269502274
LH Mirror Glass.
130
269502276
RH Mirror Glass.
150
291005127
Spacer LH.
160
291005182
Spacer RH.
1640
269502324
USB Plug.
165
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
1730
269502111
Holding Strap.
20
291005079
Console.
210
291005258
Anti Slip Mat Deck Rear.
220
291005171
Anti Slip Mat Deck Front LH. Without Sound System.
220
291005289
Anti Slip Mat Deck Front LH. With Sound System.
2240
293250087
Neoprene Seal, 410 MM.
225
291005172
Anti Slip Mat Deck Front RH. Without Sound System.
225
291005290
Anti Slip Mat Deck Front RH. With Sound System.
2250
291005108
Body Deflector.
2255
250000827
Screw-Torx Truss Cone HD.M6X50.
2260
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
240
291005173
Anti Slip Mat Side Rear LH & RH.
25
250000969
Hex Screw SEMS M6X35, SS.
250
291005325
Anti Slip Mar Footrest Rear LH.
260
291005326
Anti Slip Mar Footrest Rear RH.
30
250001007
Screw Torx M6.81 X 30.
310
293150016
Rivet 1/8
320
293000014
Black, Snap Cap.
35
293830005
Rubber Bumper.
40
291005178
Mirror Support.
400
292000933
U-Clamp.
410
293050001
Washer Flat M8.5 x 18.
450
234082600
Flat Washer 8 mm, Stainless.
460
232581200
Hex. Elastic Nut M8, Brass.
50
291005122
Black, Storage Bin.
55
264000134
Watertight Door.
60
269501718
Clip.
65
293250412
Gasket.
70
264000137
Vent Membrane.
730
264000150
Clip.
75
264000135
Sealed Compartment Foam.
750b
293200124
Seal, 1 PAC = 3 M.
750d
234062600
Flat Washer M6, Stainless.
750e
232561200
Elastic Stop Nut M6, Brass.
750f
291004717
Seal.
755
291004668
Black, Mat Cover.
760
250000827
Screw-Torx Truss Cone HD.M6X50.
770
234062600
Flat Washer M6, Stainless.
775
232561200
Elastic Stop Nut M6, Brass.
780
295100858
LinQ Bases Kit.
80
291005085
Black, Console Panel.
800
291005056
Black, Glove Box Lid.
805
264000133
Glove Box Latch.
810
293250498
Gasket.
840
291005080
Iceland Grey, Body Panel Front LH.
845
293730071
Dard.
85
250001007
Screw Torx M6.81 X 30.
860
291005081
Iceland Grey, Body Panel Front RH.
865
293730071
Dard.
880
291005298
Stone Grey, Body Panel Center LH. Model Blue Long Beach.
880
291005297
Orange Crush, Body Panel Center LH. Model Orange Crush.
885
250001007
Screw Torx M6.81 X 30.
890
293730071
Dard.
895
293830005
Rubber Bumper.
90
293830005
Rubber Bumper.
900
291005294
Stone Grey, Body Panel Center RH. Model Blue Long Beach.
900
291005292
Orange Crush, Body Panel Center RH. Model Orange Crush.
905
250001007
Screw Torx M6.81 X 30.
910
293730071
Dard.
915
293830005
Rubber Bumper.
