Кузов

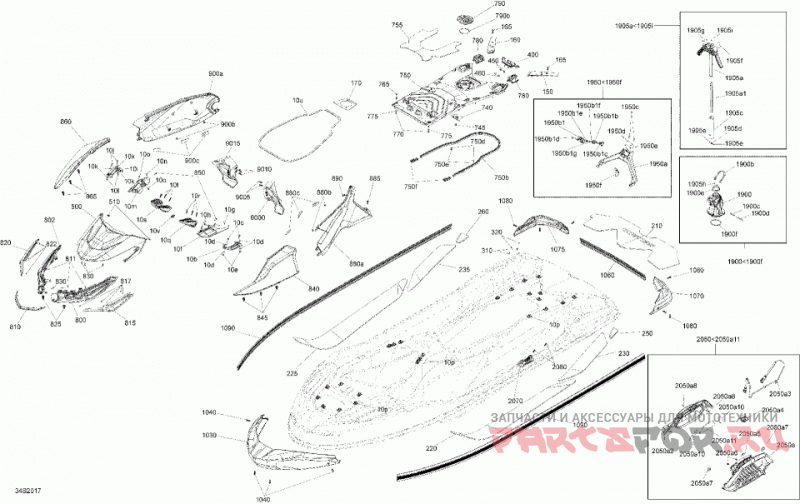

Sea-Doo (Bombardier) 002 - WAKE PRO 230

Sea-Doo (Bombardier)
#oem кодцена
1030
291004452
Front Bumper.
1040
250001007
Screw Torx M6.81 X 30.
1060
291004468
Bumper.
1070
291004465
Bumper Rear LH.
1075
291004466
Bumper Rear RH.
1080
250001007
Screw Torx M6.81 X 30.
1090
291004468
Bumper.
10b
291004559
LH Cleat.
10c
207083560
Hex. Screw M8 X 35.
10d
234081600
Flat Washer 8 mm, Stainless.
10e
232581200
Hex. Elastic Nut M8, Brass.
10f
291004661
LH Shell Cleat.
10g
293730011
Black, Dart.
10h
211000023
Hex. Screw 10-14 X 7/8”.
10i
291004720
RH Cleat.
10j
207083560
Hex. Screw M8 X 35.
10k
234081600
Flat Washer 8 mm, Stainless.
10l
232581200
Hex. Elastic Nut M8, Brass.
10m
291004719
RH Shell Cleat.
10n
293730011
Black, Dart.
10o
211000023
Hex. Screw 10-14 X 7/8”.
10p
291004813
Housing Nut M6.
10q
291004714
LH Support.
10r
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
10s
291004715
RH Support.
10t
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
10u
293250401
Gasket.
10v
293750025
Tie-Rap Mount.
150
291005176
Shim LH.
160
291005177
Shim RH.
165
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
170
293250451
Gasket.
1900<1900f
291004994
Pylon Base Assembly. Includes 1900 TO 1900f.
1900b
295100740
Replacing Kit for Pylon Strap. Includes 1900c and 1900d.
1905a<1905
291005230
Ski Handles. Includes 1905a TO 1905a1.
1905c
291004948
Aluminum Post.
1905d
269501651
Ball Spring.
1905e
293350062
Шарик 1/4
1905f
219905699
Warning Decal Ski Post.
1905g
219905700
Warning Decal Ski Post.
1905h
293150167
Type
1905i
291001519
Bumper Plug, Black.
1950<1950f
291005180
Wishbone Support Assembly. Includes 12950 TO 1950f.
1950b1b
708200374
RH Lever.
1950b1f
232551200
Elastic Stop Nut 5 mm.
1950b1g
211200035
Flat Washer.
1950c
205451660
Socket Head Screw M5 X 16.
1950d
234051600
Flat Washer M5, Stainless.
1950e
232551200
Elastic Stop Nut 5 mm.
1950f
273000344
Strap.
2050<2050a
295100838
Wakeboard Support Kit. Includes 2050 TO 2050a11.
2050a4
291002980
Latch.
2050a5
219903228
Warning WAKE.
2050a6
293830005
Rubber Bumper.
2050a7
293830119
Rubber Buffer.
2050a8
250000287
Flanged Torx Screw K40 X 16.
2070
291004675
Upper Anchorage.
2080
250001007
Screw Torx M6.81 X 30.
210
291005078
Rear Plat-Form Carpet.
220
291005351
Anti Slip Mat Front LH.
225
291005350
Anti Slip Mat Front RH.
230
291005353
Anti Slip Mat Rear LH.
235
291005352
Anti Slip Mat Rear RH.
250
291004516
Anti-Skid Pad LH.
260
291004517
Anti-Skid Pad RH.
310
293150016
Rivet 1/8
320
293000014
Black, Snap Cap.
400
291004597
Cleat.
450
234082600
Flat Washer 8 mm, Stainless.
460
232581200
Hex. Elastic Nut M8, Brass.
500
291005195
Galactic Blue, Hood.
510
250001087
Screw Plastite Flanged #10, 14 X 7/8
740
291004941
Hose Protector.
745
293730011
Black, Dart.
750b
293200124
Seal, 1 PAC = 3 M.
750d
234062600
Flat Washer M6, Stainless.
750e
232561200
Elastic Stop Nut M6, Brass.
750f
291004717
Seal.
755
291004668
Black, Mat Cover.
765
250000827
Screw-Torx Truss Cone HD.M6X50.
770
234062600
Flat Washer M6, Stainless.
775
232561200
Elastic Stop Nut M6, Brass.
780
295100858
LinQ Bases Kit.
810
291004814
Black, Trim Front.
811
211100002
Push Nut.
815
291005199
Neon Yellow, Trim LH.
817
211100002
Push Nut.
820
291005198
Neon Yellow, Trim RH.
822
211100002
Push Nut.
825
293730071
Dard.
830
211000023
Hex. Screw 10-14 X 7/8”.
840
291004776
Deep Black, Body Panel Front LH.
845
293730071
Dard.
850
211000023
Hex. Screw 10-14 X 7/8”.
860
291004677
Deep Black, Body Panel Front LH.
865
293730071
Dard.
880a
291004780
Deep Black, Body Panel Central LH.
880b
293830005
Rubber Bumper.
880c
278003618
Stopper.
885
250001007
Screw Torx M6.81 X 30.
890
293150230
Tuflok Plastic Rivet.
9000
291004455
LH Side Grille. Without Sound System.
9005
250001007
Screw Torx M6.81 X 30. Without Sound System.
900a
291004782
Deep Black, Body Panel Central RH.
900b
293830005
Rubber Bumper.
900c
278003618
Stopper.
9010
291004456
RH Side Grille. Without Sound System.
9015
250001007
Screw Torx M6.81 X 30. Without Sound System.
