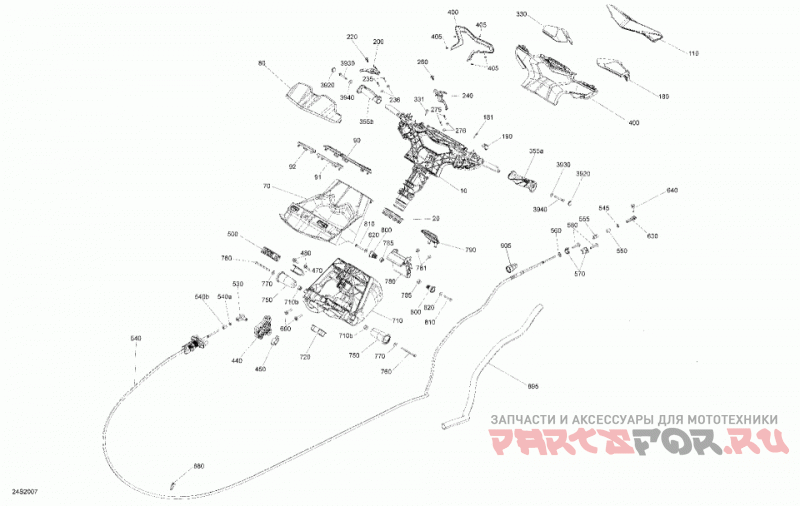

Рулевая

Sea-Doo (Bombardier) 002 - GTX 230

Sea-Doo (Bombardier)
#oem кодцена
10
277002134
Steering Column.
110
277002063
Stone Grey, Steering Pad. Model Metalic Blue Long Beach.
110
277002156
Swift Silver, Steering Pad. Model Liquid Metal.
180
277001983
Deep Black, Housing Cover LH.
181
211000023
Hex. Screw 10-14 X 7/8”.
190
277002052
Stop/Start Button.
20
277001874
Wear Ring.
200
277002138
Hand Lever Accelerator.
220
250001087
Screw Plastite Flanged #10, 14 X 7/8
235
241142560
Hex. Flanged Screw K40 X 25.
236
234042600
Flat Washer 4 mm, Stainless.
240
277001945
Reverse Handle.
260
250001087
Screw Plastite Flanged #10, 14 X 7/8
275
241142560
Hex. Flanged Screw K40 X 25.
276
234042600
Flat Washer 4 mm, Stainless.
330
277001984
RH Housing Cover. Package STD.
330
277002067
RH Housing Cover. Package LTD.
331
211000023
Hex. Screw 10-14 X 7/8”.
355a
277001958
Deep Black, Handle Grip LH.
355b
277001946
Deep Black, Handle Grip RH.
3920
277000203
Black Cap.
3930
234062600
Flat Washer M6, Stainless.
3940
207364560
Hex. Screw M6 x 45, Scotch Grip.
400
277001985
Steering Cover.
405
277002061
Limited Trim- Chrome. Model Liquid Metal.
410
250100206
Push Nut. Model Liquid Metal.
440<450
295501183
Arm Steering Kit. Includes 440 TO 450.
470
277001654
Spacer.
480
250000399
Hexagonal Cap Screw M6 X35.
500
277002085
Clamp C.
530
277002119
End Fitting Cable.
540<540b
277001989
Steering Cable. Includes 540 TO 540b.
540a
211100056
Hex. Nut 1/4
540b
277001582
Wiper Rod.
545
211100056
Hex. Nut 1/4
550
277001582
Wiper Rod.
555
277001583
End Piece.
560
293830063
Rubber Washer.
570
277001856
Ring Halves.
580
250000399
Hexagonal Cap Screw M6 X35.
630
277000775
Ball Joint.
640
250000970
Hex Sems Screw M6X35.
690
250000399
Hexagonal Cap Screw M6 X35.
70
277001980
Cluster Support.
710
277001993
Steering Support Assembly.
720
277001741
Wear Ring.
750
277001605
Steering Support Pivot.
760
207168060
Hex Screw M6 X 80.
770
234062600
Flat Washer M6, Stainless.
780
277001996
Adjustment Handle.
781
293830005
Rubber Bumper.
790
277002010
Lock.
80
277001981
Deep Black, Cluster Support Cover.
800
277001652
Pivot.
810
207064060
Hex. Screw M6 X 40.
820
234062600
Flat Washer M6, Stainless.
880
414115200
Tie-Rap 180 mm.
895
276000520
Sheath Corrugated 22MM - 1250MM.
90
705011286
Speed Indicator Bezel.
905
277002150
Rope Guide.
91
705012349
Deep Black, LH Trim Gauge. Model Metalic Blue Long Beach.
91
277002076
Hyper Silver, Trim Gauge LH. Model Liquid Metal.
92
705012351
Deep Black, RH Trim Gauge. Model Metalic Blue Long Beach.
92
277002077
Hyper Silver, Trim Gauge RH. Model Liquid Metal.
