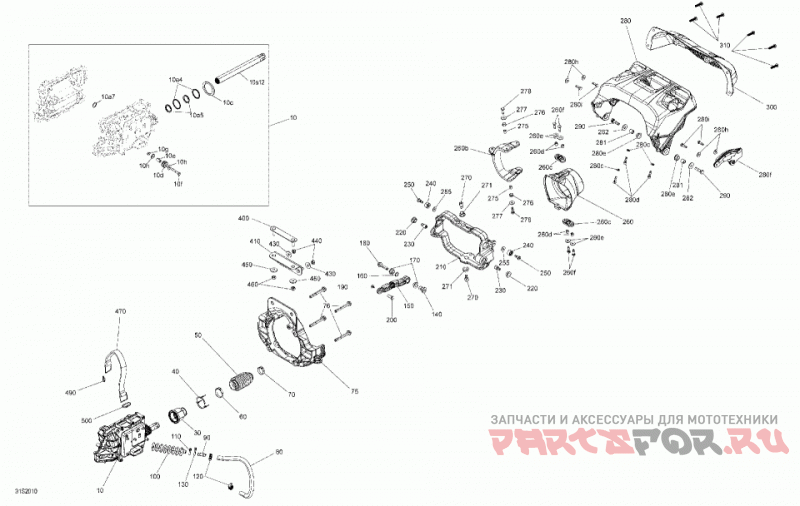

Задний ход

Sea-Doo (Bombardier) 001 - RXP 300

Sea-Doo (Bombardier)
#oem кодцена
10<10h
278003606
Actuator. Includes 10 TO 10h.
100
268000211
Inner Boot.
10a12
278003027
Output Shaft.
10a4
279000108
O-Ring.
10a5
293300107
O-Ring.
10a7
293300187
O-Ring.
10c
268000208
Gasket.
10d
293720104
Grommet.
10e
271001020
Spacer.
10f
207063560
Hex. Screw M6 X 35.
10g
232561200
Elastic Stop Nut M6, Brass.
10h
234062600
Flat Washer M6, Stainless.
110
293750002
Tie-Rap 142 mm.
120
293650171
Tridon Gear Clamp.
130
293750002
Tie-Rap 142 mm.
150
268000256
Linkage Arm.
160
293300187
O-Ring.
170
293900007
Venturi Bushing.
180
250000963
Screw-Hex.Flange Din.6921 S.Grip.
190
250000565
Hexalob Screw M4 X 10.
200
268000309
Shoulder Pin.
210
268000247
Trimming Ring.
220
293900007
Venturi Bushing.
230
250000837
Screw Socket S.Grip.
240
295501160
Roller Bushing Kit.
250
250000775
Screw-Socket Shoulder M8X8.
255
234062600
Flat Washer M6, Stainless.
260b
268000149
Lever Nozzle Steering.
260c
268000058
Direction Lever Arm.
260d
268000060
Spacer.
260e
234062600
Flat Washer M6, Stainless.
260f
250000891
Scotch Grip Hexagonal Screw M6 X 20.
270
250000837
Screw Socket S.Grip.
271
293900007
Venturi Bushing.
275
268000060
Spacer.
276
268000059
Bushing.
277
234062600
Flat Washer M6, Stainless.
278
207362060
Hex. Screw M6 X 20, Scotch Grip.
280c
234061600
Flat Washer M6, Stainless.
280d
205562060
Socket Head Screw M6 X 20, Scotch Grip.
280e
293900007
Venturi Bushing.
280h
234062600
Flat Washer M6, Stainless.
280i
207362060
Hex. Screw M6 X 20, Scotch Grip.
281
271001039
Spacer.
282
234082600
Flat Washer 8 mm, Stainless.
290
250000526
Hex. Screw M8 X 30, Scotch Grip.
30
268000308
IBR Nut.
300
268000162
Guard.
310
250001007
Screw Torx M6.81 X 30.
40
277001977
Rubber Gasket.
410
268000304
Reverse Bracket.
430
279000336
Flat Washer.
440
232581200
Hex. Elastic Nut M8, Brass.
450
279000336
Flat Washer.
460
232581200
Hex. Elastic Nut M8, Brass.
470
293850095
Fuel Tank Strap.
490
293750001
Tie-Rap 94 mm.
50
268000186
Boot.
500
293750002
Tie-Rap 142 mm.
60
509000529
Oetiker Gear Clamp, 36.5-706R.
70
293650099
Crimp Clamp.
75
268000266
Bracket.
76
250000835
Screw-Hex.Flange DIN.6921 S.Grip.
80
509000407
Hose 8 mm.
90
293710157
Fitting-Straig.
