Кузов

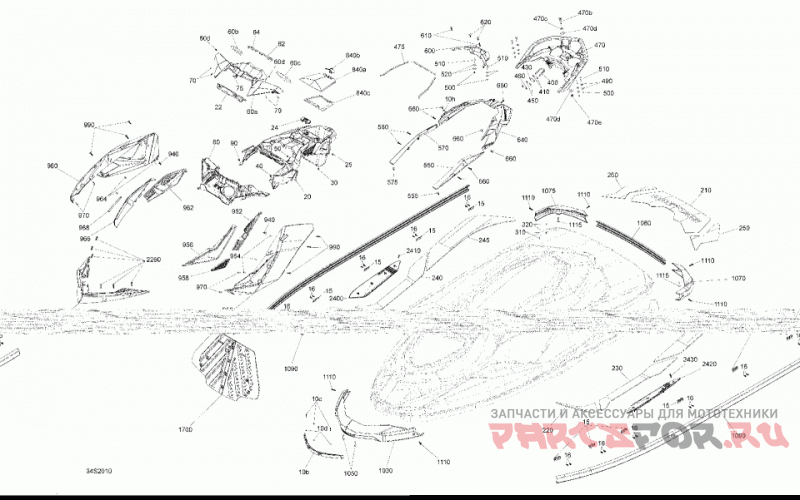

Sea-Doo (Bombardier) 001 - RXP 300

Sea-Doo (Bombardier)
#oem кодцена
1030
291005401
Deep Black, Bumper Front.
1050
250000399
Hexagonal Cap Screw M6 X35.
1060
291004451
Black, Side Bumper.
1070
291004278
Black, Corner Bumper.
1075
291004279
Black, Corner Bumper.
1090
291004451
Black, Side Bumper.
10b
291003897
Deck Nose.
10c
241142560
Hex. Flanged Screw K40 X 25.
10d
234042600
Flat Washer 4 mm, Stainless.
10h
293730011
Black, Dart.
1110
250001007
Screw Torx M6.81 X 30.
1115
250000399
Hexagonal Cap Screw M6 X35.
15
291005313
Bumper Anchorage.
16
278002475
Torx Screw, Stainless.
1730
269502111
Holding Strap.
20
291004654
Black, Console.
210
291003586
Platform Carpet.
22
291004655
Deep Black, Display Adaptor.
220
291005364
Anti-Slip Mat Front LH.
225
291005365
Anti-Slip Mat Front RH.
2250
291004367
Deflector.
2260
250001007
Screw Torx M6.81 X 30.
230
291005362
Anti-Slip Mat Center LH.
235
291005358
Anti Slip Mat Rear LH.
24
291004718
Deep Black, Console Cap.
240
291005363
Anti-Slip Mat Center RH.
2400
291004317
Footrest.
2410
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
2420
291004319
Footrest.
2430
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
245
291005359
Anti Slip Mat Rear RH.
25
414644300
Black, Dart.
250
291003593
Rear Carpet LH.
260
291003594
Rear Carpet RH.
30
293830005
Rubber Bumper.
310
293150016
Rivet 1/8
320
293000014
Black, Snap Cap.
40
293150123
Pop Rivet 3/16
400
292000933
U-Clamp.
410
293050001
Washer Flat M8.5 x 18.
430
291001386
Black, Finition Plate.
450
234082600
Flat Washer 8 mm, Stainless.
460
232581200
Hex. Elastic Nut M8, Brass.
470b
291003877
Stud Seat.
470c
232100600
Hex. Jam Nut M10.
470d
234002600
Flat Washer 10 mm, Stainless.
470e
232501200
Elastic Stop Nut M10, Brass.
475
293250289
Seal.
490
234062600
Flat Washer M6, Stainless.
50
293150186
Pop Rivet 3/16.
500
232561200
Elastic Stop Nut M6, Brass.
510
207164060
Hex. Screw M6 X 40.
520
250200022
Flat Washer M6.6 X 22.
550
291004989
Black, Trim Passenger Handle LH. Model Jungle Green.
550
291004991
Gold, Trim Passenger Handle LH. Model Dragon Red.
555
293730006
Black, Dart.
560
250001007
Screw Torx M6.81 X 30.
570
291004990
Black, Trim Passenger Handle RH. Model Jungle Green.
570
291004992
Gold, Trim Passenger Handle RH. Model Dragon Red.
575
293730006
Black, Dart.
580
250001007
Screw Torx M6.81 X 30.
600
291003372
Deep Black, Vent Cover.
60a
291004657
Deep Black, Gauge Bezel.
60b
291003090
Mirror RH, With Double-Face Tape.
60c
291003091
Mirror LH, With Double-Face Tape.
60d
293830005
Rubber Bumper.
610
250001007
Screw Torx M6.81 X 30.
62
705012354
Dragon Red, Trim Gauge LH.
620
293730006
Black, Dart.
64
705012355
Dragon Red, Trim Gauge RH.
640
291004365
Deep Black, Cosmetic Rear.
650
250001007
Screw Torx M6.81 X 30.
660
293730006
Black, Dart.
70
250000287
Flanged Torx Screw K40 X 16. Canada/USA.
75
250000735
Torx Screw K40 X 16. Canada/USA.
80
291004271
Deep Black, Mirror Support.
840a
291004579
Deep Black, Glove Box Door.
840b
264000091
Black, Latch.
840c
293250265
Urethane Seal.
90
293150123
Pop Rivet 3/16
940
293730006
Black, Dart. International.
950
291004504
Black, Side Cosmetic LH. Model Jungle Green.
950
291004958
Dragon Red, Side Cosmetic LH. Model Dragon Red.
952
291003348
Black, Side Grill LH.
954
250000287
Flanged Torx Screw K40 X 16.
956
291004962
Liquid Gold, Trim Panel Front LH. Model Dragon Red.
956
291005307
Carbon Black, Trim Panel Front LH. Model Jungle Green.
958
291005284
Krypton Green, Front Hood Grill LH. Model Jungle Green.
958
291003343
Deep Black, Front Hood Grill LH. Model Dragon Red.
960
291004959
Dragon Red, Side Cosmetic RH. Model Dragon Red.
960
291004506
Deep Black, Side Cosmetic RH. Model Jungle Green.
962
291003349
Deep Black, Side Grill RH.
964
250000287
Flanged Torx Screw K40 X 16.
966
291004964
Liquid Gold, Trim Panel Front RH. Model Dragon Red.
966
291005308
Carbon Black, Trim Panel Front RH. Model Jungle Green.
968
291005285
Krypton Green, Front Hood Grill RH. Model Jungle Green.
968
291003344
Deep Black, Front Hood Grill RH. Model Dragon Red.
970
211000023
Hex. Screw 10-14 X 7/8”. Canada/USA.
990
250001007
Screw Torx M6.81 X 30. Canada/USA.
