Кузов

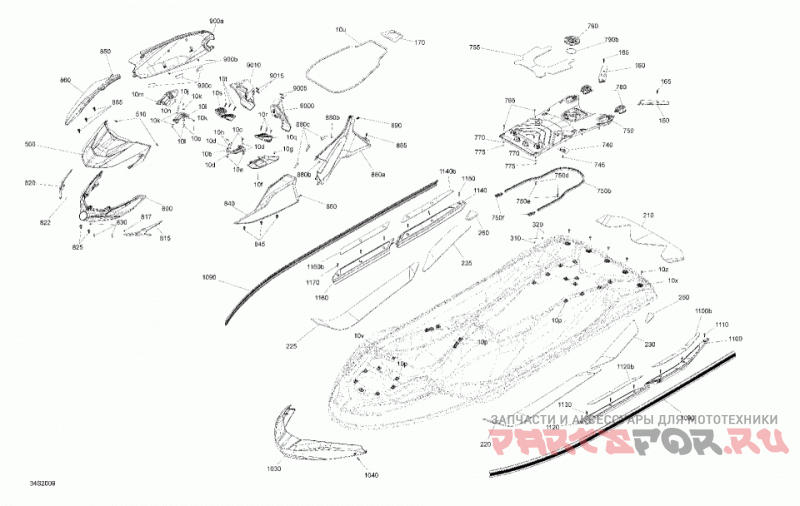

Sea-Doo (Bombardier) 001 - FISH PRO 170

Sea-Doo (Bombardier)
#oem кодцена
1030
291004452
Front Bumper.
1040
250001007
Screw Torx M6.81 X 30.
1090
291004468
Bumper.
10b
291004559
LH Cleat.
10c
207083560
Hex. Screw M8 X 35.
10d
234081600
Flat Washer 8 mm, Stainless.
10e
232581200
Hex. Elastic Nut M8, Brass.
10f
291004661
LH Shell Cleat.
10g
293730011
Black, Dart.
10h
211000023
Hex. Screw 10-14 X 7/8”.
10i
291004720
RH Cleat.
10j
207083560
Hex. Screw M8 X 35.
10k
234081600
Flat Washer 8 mm, Stainless.
10l
232581200
Hex. Elastic Nut M8, Brass.
10m
291004719
RH Shell Cleat.
10n
293730011
Black, Dart.
10o
211000023
Hex. Screw 10-14 X 7/8”.
10p
291004813
Housing Nut M6.
10q
291004714
LH Support.
10r
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
10s
291004715
RH Support.
10t
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
10u
293250401
Gasket.
10v
293750025
Tie-Rap Mount.
10x
293450363
Insert M8.
10z
207682534
Hex. Flanged Screw M8 X 25.
1100<1100b
291005123
Footrest Rear LH Assy. Includes 1100 TO 1100b.
1110
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
1120<1120b
291005124
Footrest Front LH Assy. Includes 1120 TO 1120b.
1130
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
1140<1140b
291005125
Footrest Rear RH Assy. Includes 1140 TO 1140b.
1150
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
1160<1160b
291005126
Footrest Front RH Assy.
1170
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
150
291005176
Shim LH.
160
291005177
Shim RH.
165
250001008
Screw-Pastite Torx Cone HD M6 81 X 30.
170
293250451
Gasket.
210
291005019
Rear Plat-Form Carpet.
220
291005351
Anti Slip Mat Front LH.
225
291005350
Anti Slip Mat Front RH.
230
291005353
Anti Slip Mat Rear LH.
235
291005352
Anti Slip Mat Rear RH.
250
291004516
Anti-Skid Pad LH.
260
291004517
Anti-Skid Pad RH.
310
293150016
Rivet 1/8
320
293000014
Black, Snap Cap.
500
291005023
Olive Night, Hood.
510
250001087
Screw Plastite Flanged #10, 14 X 7/8
740
291004941
Hose Protector.
745
293730011
Black, Dart.
750b
293200124
Seal, 1 PAC = 3 M.
750d
234062600
Flat Washer M6, Stainless.
750e
232561200
Elastic Stop Nut M6, Brass.
750f
291004717
Seal.
755
291004668
Black, Mat Cover.
765
250000827
Screw-Torx Truss Cone HD.M6X50.
770
234062600
Flat Washer M6, Stainless.
775
232561200
Elastic Stop Nut M6, Brass.
780
295100858
LinQ Bases Kit.
800
291004454
Black, Front Grille.
815
291005038
Mango Orange, Trim LH.
817
211100002
Push Nut.
820
291005039
Mango Orange, Trim RH.
822
211100002
Push Nut.
825
293730071
Dard.
830
211000023
Hex. Screw 10-14 X 7/8”.
840
291005041
Flint Grey, Body Panel Front LH.
845
293730071
Dard.
850
211000023
Hex. Screw 10-14 X 7/8”.
860
291005040
Flint Grey, Body Panel Front RH.
865
293730071
Dard.
880a
291005042
Flint Frey, Body Panel Central LH.
880b
293830005
Rubber Bumper.
880c
278003618
Stopper.
885
250001007
Screw Torx M6.81 X 30.
890
293150230
Tuflok Plastic Rivet.
9000
291004455
LH Side Grille. Without Sound System.
9005
250001007
Screw Torx M6.81 X 30. Without Sound System.
900a
291005043
Flint Frey, Body Panel Central RH.
900b
293830005
Rubber Bumper.
900c
278003618
Stopper.
9010
291004456
RH Side Grille. Without Sound System.
9015
250001007
Screw Torx M6.81 X 30. Without Sound System.
