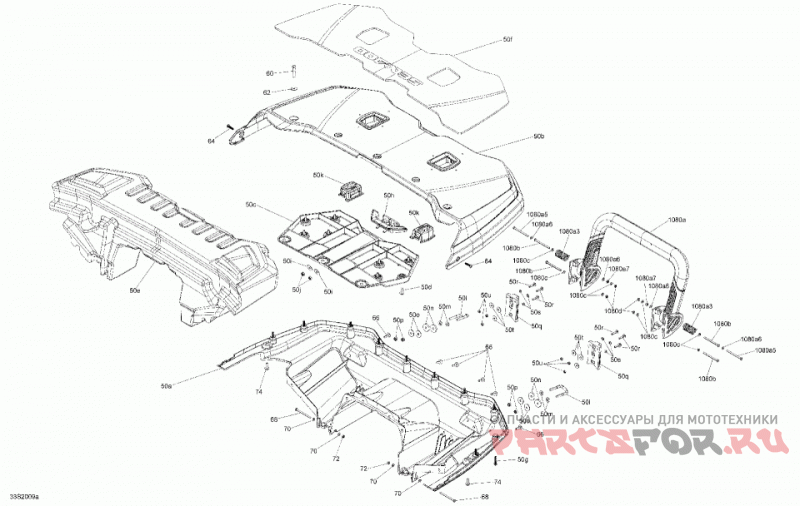

09- hull extension and ladder

Sea-Doo (Bombardier) 001 - FISH PRO 170

Sea-Doo (Bombardier)
#oem кодцена
1080a3
292002107
Spring.
1080a5
207068060
Hex. Screw M6 x 80.
1080a6
234061600
Flat Washer M6, Stainless.
1080a7
232561600
Hex. Elastic Stop Nut M6.
1080b
207068060
Hex. Screw M6 x 80.
1080c
234061600
Flat Washer M6, Stainless.
1080d
232561600
Hex. Elastic Stop Nut M6.
50a
292002138
Hull Extension.
50b
292002139
Body Extension.
50c
292002140
Reinforcement Body Extension.
50d
250001070
Hexagonal Cap Screw M6.8 X 25.
50e
292002142
Extension Float.
50f
292002210
Extension Carpet.
50g
243163560
Plastite Hex. Screw M6.8 X 35.
50h
291004597
Cleat.
50i
250200175
Flat Washer 8 mm, Stainless.
50j
232581200
Hex. Elastic Nut M8, Brass.
50k
295100858
LinQ Bases Kit.
50l
292000933
U-Clamp.
50m
293050001
Flat Washer.
50n
293830037
Rubber Washer.
50o
250200175
Flat Washer 8 mm, Stainless.
50p
232581200
Hex. Elastic Nut M8, Brass.
50q
292002113
Ladder Attachment.
50r
250000924
Truss Cone Torx Screw M6 X 30.
50s
234061600
Flat Washer M6, Stainless.
50t
250200022
Flat Washer M6.6 X 22.
50u
232561200
Elastic Stop Nut M6, Brass.
60
250000782
Hexagonal Head Cap Screw M8 X 45.
62
279000336
Flat Washer.
64
250001007
Screw Torx M6.81 X 30.
66
250001070
Hexagonal Cap Screw M6.8 X 25.
68
207068060
Hex. Screw M6 x 80.
70
234061600
Flat Washer M6, Stainless.
72
232561600
Hex. Elastic Stop Nut M6.
74
250001070
Hexagonal Cap Screw M6.8 X 25.
