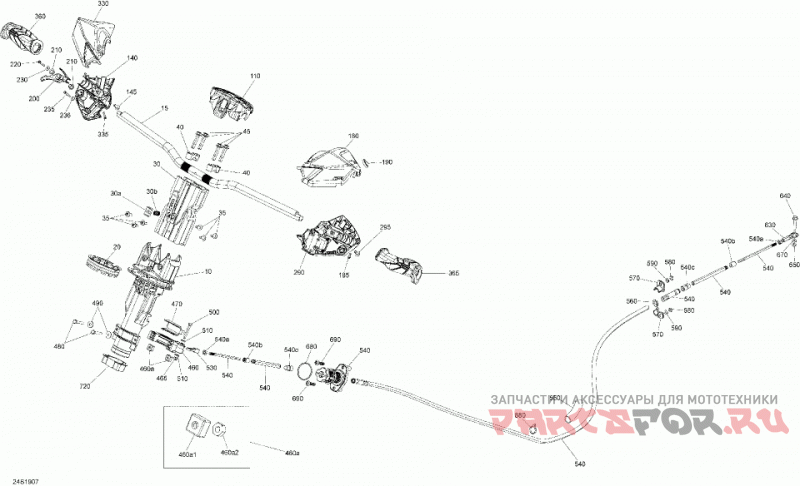

Рулевая

Sea-Doo (Bombardier) 003 - Spark TRIXX

Sea-Doo (Bombardier)
#oem кодцена
10
277001998
Steering Column
15
277002016
Руль
20
277001874
Wear Ring
30>30b
277002093
Adjustable Riser Block
30a
506153045
Compression Bloc
30b
506152820
Пружина
35
250000922
Torx Truss Screw M6 X 16
40
506152751
Steering Support
45
250000834
Винт
110
277002005
Steering Pad, Deep Black
140
277002007
Lower Housing RH
145
250000922
Torx Truss Screw M6 X 16
180
277002003
LH Cover
185
241141660
Flanged Hex. Screw K40 X 16
190
277001887
Red Knob Switch
200
277001944
Ручка газа
210
293900091
Втулка
220
241142560
Hex. Flanged Screw K40 X 25
230
234042600
Flat Washer 4 mm, Stainless
235
241142560
Hex. Flanged Screw K40 X 25
236
234042600
Flat Washer 4 mm, Stainless
290
277002006
Lower Housing LH
295
250000922
Torx Truss Screw M6 X 16
330
277002004
RH Cover
335
241141660
Flanged Hex. Screw K40 X 16
360
277002014
Handle Grip RH
365
277002015
Handle Grip LH
465
232561200
Elastic Stop Nut M6, Brass
470
277001654
Проставка
480
207163560
Hex. Screw M6 X 35
490
234062600
Flat Washer M6, Stainless
500
207064060
Hex. Screw M6 X 40
510
234061600
Flat Washer M6, Stainless
530
277001180
Шаровая опора
540>540c
277002065
Steering Cable
540a
211100056
Hex. Nut 1/4
540b
277001582
Small Boot
540c
277001583
Large Boot
550
276000446
Sheat Corrugated 19 MM ID
560
293830063
Rubber Washer
570
277001856
Ring Halves
580
232561200
Elastic Stop Nut M6, Brass
590
234061600
Flat Washer M6, Stainless
630
277000775
Шаровая опора
640
207663560
Hex. Screw M6 X 35
650
232561200
Elastic Stop Nut M6, Brass
670
234061600
Flat Washer M6, Stainless
680
293300176
Уплотнительное кольцо
690
250001007
Screw Torx M6.81 X 30
720
277001741
Wear Ring
880
414115200
Стяжка 180мм
