Рулевая

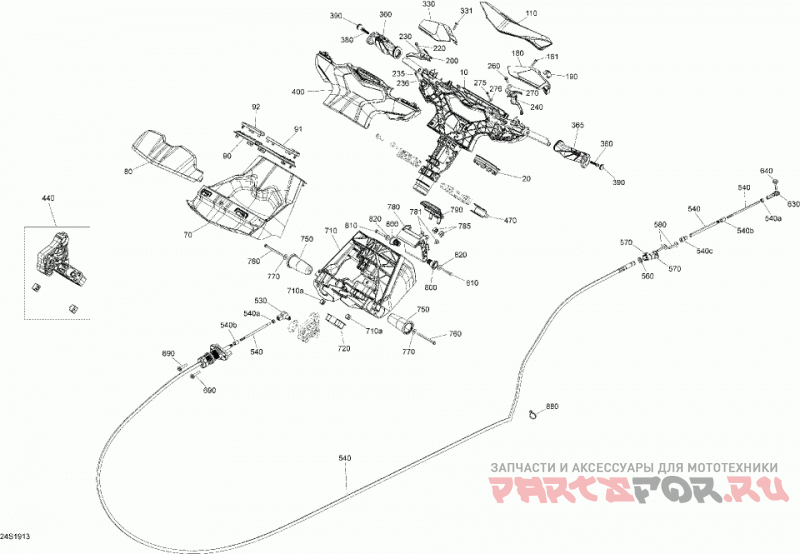

Sea-Doo (Bombardier) 002 - WAKE PRO 230

Sea-Doo (Bombardier)
#oem кодцена
10
277001979
Steering Column
20
277001874
Wear Ring
70
277001980
Cluster Support
80
277001981
Cluster Cover
90
705011286
Bezel For Speed Indicator
91
705012354
LH Trim Dragon Red
92
705012355
RH Trim Dragon Red
110
277001988
Steering Pad B-160
180
277001983
LH Housing Cover
181
211000023
Hex. Screw 10-14 X 7/8?
190
277002052
Push Button Red
200
277001944
Ручка газа
220
211000023
Hex. Screw 10-14 X 7/8?
230
234052600
Flat Washer 5 mm, Stainless
235
241142560
Hex. Flanged Screw K40 X 25
236
234042600
Flat Washer 4 mm, Stainless
240
277001945
Reverse Handle
260
211000023
Hex. Screw 10-14 X 7/8?
270
234052600
Flat Washer 5 mm, Stainless
275
241142560
Hex. Flanged Screw K40 X 25
276
234042600
Flat Washer 4 mm, Stainless
330
277002067
RH Housing Cover
331
211000023
Hex. Screw 10-14 X 7/8?
360
277002014
Handle Grip RH
365
277002015
Handle Grip LH
380
250001007
Screw Torx M6.81 X 30
390
277000203
Black Cap
400
277001985
Steering Cover
440
295501183
Arm Steering Kit
470
277001654
Проставка
540>540c
277001989
Steering Cable
540a
211100056
Hex. Nut 1/4
540b
277001582
Small Boot
540c
277001583
Large Boot
560
293830063
Rubber Washer
570
277001856
Ring Halves
580
250000399
Hexagonal Cap Screw M6 X35
630
277000775
Шаровая опора
640
250000970
Hex Sems Screw M6X35
690
250000399
Hexagonal Cap Screw M6 X35
710>710a
277001993
Steering Support Assembly
720
277001741
Wear Ring
750
277001605
Steering Support Pivot
760
207168060
Hex Screw M6 X 80
770
234062600
Flat Washer M6, Stainless
780
277001996
Adjustment Handle
781
293830005
Rubber Bumper
790
277002010
Lock
800
277001652
Втулка оси
810
207064060
Hex. Screw M6 X 40
820
234062600
Flat Washer M6, Stainless
880
414115200
Стяжка 180мм
