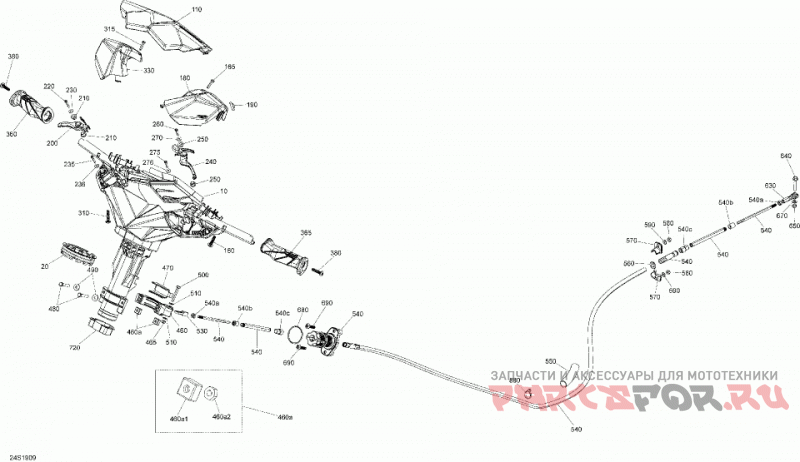

Рулевая

Sea-Doo (Bombardier) 002 - Spark 900 HO ACE

Sea-Doo (Bombardier)
#oem кодцена
10
277001952
Steering
20
277001874
Wear Ring
110
277001786
Steering Pad, Bright White
160
250001007
Screw Torx M6.81 X 30
165
211000023
Hex. Screw 10-14 X 7/8?
180
277001787
LH Cover
180
277001900
LH Cover
190
277001887
Red Knob Switch
200
277001944
Ручка газа
210
293900091
Втулка
220
241142560
Hex. Flanged Screw K40 X 25
230
234042600
Flat Washer 4 mm, Stainless
235
241142560
Hex. Flanged Screw K40 X 25
236
234042600
Flat Washer 4 mm, Stainless
240
277001945
Reverse Handle
250
293900091
Втулка
260
241142560
Hex. Flanged Screw K40 X 25
270
234042600
Flat Washer 4 mm, Stainless
275
241142560
Hex. Flanged Screw K40 X 25
276
234042600
Flat Washer 4 mm, Stainless
310
250001007
Screw Torx M6.81 X 30
315
211000023
Hex. Screw 10-14 X 7/8?
330
277001788
RH Cover
360
277001946
Handle Grip RH
365
277001958
Handle Grip LH
380
250001007
Screw Torx M6.81 X 30
465
232561200
Elastic Stop Nut M6, Brass
470
277001654
Проставка
480
207163560
Hex. Screw M6 X 35
490
234062600
Flat Washer M6, Stainless
500
207064060
Hex. Screw M6 X 40
510
234061600
Flat Washer M6, Stainless
530
277001180
Шаровая опора
540>540c
277002065
Steering Cable
540a
211100056
Hex. Nut 1/4
540b
277001582
Small Boot
540c
277001583
Large Boot
550
276000446
Sheat Corrugated 19 MM ID
560
293830063
Rubber Washer
570
277001856
Ring Halves
580
232561200
Elastic Stop Nut M6, Brass
590
234061600
Flat Washer M6, Stainless
630
277000775
Шаровая опора
640
207663560
Hex. Screw M6 X 35
650
232561200
Elastic Stop Nut M6, Brass
670
234061600
Flat Washer M6, Stainless
680
293300176
Уплотнительное кольцо
690
250001007
Screw Torx M6.81 X 30
720
277001741
Wear Ring
880
414115200
Стяжка 180мм
