Кузов

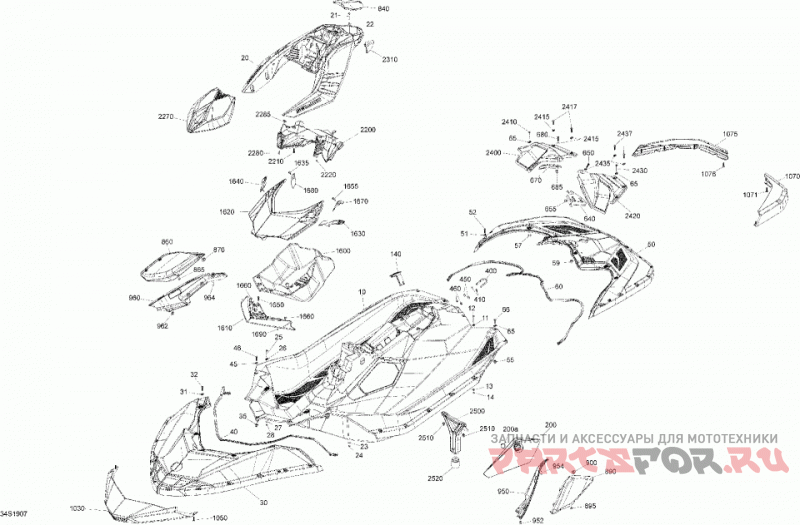

Sea-Doo (Bombardier) 001 - Spark 900 ACE

Sea-Doo (Bombardier)
#oem кодцена
10
291004646
Mid Deck
11
291003880
Oval Washer
12
250000827
Screw Torx M6 X 50
13
234062600
Flat Washer M6, Stainless
14
232561200
Elastic Stop Nut M6, Brass
20
291005057
Console Front
21
250000827
Screw Torx M6 X 50
22
250200150
Flat Washer M6, Stainless
23
234062600
Flat Washer M6, Stainless
24
232561200
Elastic Stop Nut M6, Brass
25
250000827
Screw Torx M6 X 50
26
291003880
Oval Washer
27
234062600
Flat Washer M6, Stainless
28
232561200
Elastic Stop Nut M6, Brass
30
291004581
Front Deck Bright White
30
291004725
Yellow, Front Deck
30
291004727
Black, Front Deck
30
291004863
Orange, Front Deck
30
291004978
Green, Front Deck
31
291003880
Oval Washer
32
250001007
Screw Torx M6.81 X 30
35
291003793
Вставка
40
293250341
Seal Joint
45
291003880
Oval Washer
46
250001007
Screw Torx M6.81 X 30
50
291004586
Rear Deck Bright White
50
291004728
Yellow, Rear Deck
50
291004730
Black, Rear Deck
50
291004864
Orange, Rear Deck
50
291004979
Green, Rear Deck
51
291003880
Oval Washer
52
250001007
Screw Torx M6.81 X 30
55
291003793
Вставка
59
291003793
Вставка
60
293250340
Seal Joint
65
291003880
Oval Washer
66
250001007
Screw Torx M6.81 X 30
140
291003390
Rear Access Cover
200>200a
291004155
Front Access Cover
200a
293300121
Уплотнительное кольцо
400
292000933
U-Clamp
410
293050001
Шайба
450
234082600
Flat Washer 8 mm, Stainless
460
232581200
Hex. Elastic Nut M8, Brass
640
291003883
LH Rear Panel Trim
640
291004545
Rear Support LH
650
250001007
Screw Torx M6.81 X 30
655
291003793
Вставка
670
291003884
RH Rear Panel Trim
670
291004546
Rear Support RH
680
250001007
Screw Torx M6.81 X 30
685
291003793
Вставка
840
291003378
Glove Box Cover
860
291004526
Knee Pads RH
860
291004731
Blue, RH Knee Pads
860
291004732
Green RH Knee Pads
860
291004733
Blue, RH Knee Pads
860
291004734
Orange, RH Knee Pads
865
293830005
Rubber Bumper
870
705000321
Oval Washer
890
291004528
Knee Pads LH
890
291004735
Blue, LH Knee Pads
890
291004736
Green LH Knee Pads
890
291004737
Blue, LH Knee Pads
890
291004738
Orange, LH Knee Pads
895
293830005
Rubber Bumper
900
705000321
Oval Washer
950
291004524
Panel Trim LH
950
291004576
Panel Trim LH
952
293150230
Tuflok Plastic Rivet
954
211000023
Hex. Screw 10-14 X 7/8?
960
291004525
Panel Trim RH
960
291004577
Panel Trim RH
962
293150230
Tuflok Plastic Rivet
964
211000023
Hex. Screw 10-14 X 7/8?
1030
291004567
Front Bumper
1050
250001007
Screw Torx M6.81 X 30
1070
291004568
Rear Bumper LH
1071
250001007
Screw Torx M6.81 X 30
1075
291004569
Rear Bumper RH
1076
250001007
Screw Torx M6.81 X 30
1630
269800472
LH Retaining Strap
1640
269800498
RH Retaining Strap
1650
250001007
Screw Torx M6.81 X 30
1655
250001007
Screw Torx M6.81 X 30
1660
293830005
Rubber Bumper
1670
269800541
LH Hook
1680
269800542
RH Hook
1690
269800662
Rubber Bumper
2200
291004575
Inferior Cover
2210
250001007
Screw Torx M6.81 X 30
2220
211000023
Hex. Screw 10-14 X 7/8?
2270
291004592
Front Trim Gulfstream Blue
2270
291004594
Front Trim Red
2270
291004739
Yellow, Front Trim
2270
291004741
Orange, Frontal Trim
2270
291004981
Green, Frontal Trim
2280
250000829
Torx-Truss M/S Stlss M6 X 20
2310
291003702
Крышка
2410
250000827
Screw Torx M6 X 50
2415
291003880
Oval Washer
2417
250001007
Screw Torx M6.81 X 30
2430
250000827
Screw Torx M6 X 50
2435
291003880
Oval Washer
2437
250001007
Screw Torx M6.81 X 30
2500
291003440
Rear Support
2510
291003793
Вставка
2520
291003694
Rear Support Mount
