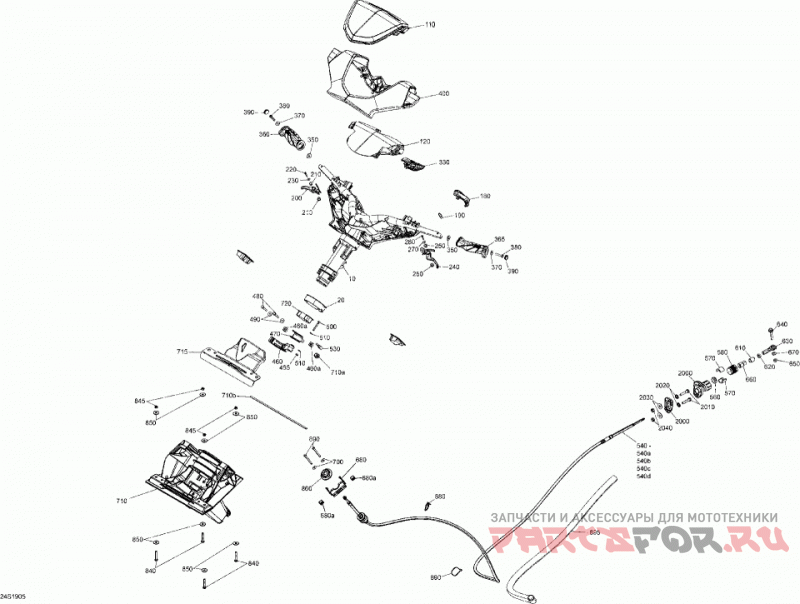

Рулевая

Sea-Doo (Bombardier) 001 - GTR 230

Sea-Doo (Bombardier)
#oem кодцена
10
277001963
Steering Column
20
277001653
Wear Ring
110
277001904
Black Steering Pad
120
277001921
Handle Bar Foam
180
277001626
Housing Cover LH
190
277001887
Red Knob Switch
200
277001944
Ручка газа
210
293900091
Втулка
220
241142560
Hex. Flanged Screw K40 X 25
230
234042600
Flat Washer 4 mm, Stainless
240
277001945
Reverse Handle
250
293900091
Втулка
260
241142560
Hex. Flanged Screw K40 X 25
270
234042600
Flat Washer 4 mm, Stainless
330
277001755
Housing Cover RH
350
277001863
Insert Grip Handle
360
277001946
Handle Grip RH
365
277001958
Handle Grip LH
370
234062600
Flat Washer M6, Stainless
380
250000002
Hex. Screw M6 X 30, Scotch Grip
390
277000203
Black Cap
400
277001969
Steering Cover
460a
232561200
Elastic Stop Nut M6, Brass
465
232561200
Elastic Stop Nut M6, Brass
470
277001654
Проставка
480
207163560
Hex. Screw M6 X 35
490
234062600
Flat Washer M6, Stainless
500
207064060
Hex. Screw M6 X 40
510
234061600
Flat Washer M6, Stainless
530
277001180
Шаровая опора
540a
277000782
Ajustment Knob
540b
211100056
Hex. Nut 1/4
540c
277001582
Small Boot
540d
277001583
Large Boot
560
293830063
Rubber Washer
570
277001527
Half Ring
580
277001729
Steering Cable Lock
610
277001582
Small Boot
620
211100056
Hex. Nut 1/4
630
277000775
Шаровая опора
640
207663560
Hex. Screw M6 X 35
650
232561200
Elastic Stop Nut M6, Brass
660
277001583
Large Boot
670
234061600
Flat Washer M6, Stainless
680a
232561200
Elastic Stop Nut M6, Brass
690
207165060
Hex. Screw M6 X 50
700
234062600
Flat Washer M6, Stainless
710a
517302716
Крышка
710b
296000392
Уплотнение
715
293000116
Deflector
720
277001741
Wear Ring
840
207164060
Hex. Screw M6 X 40
845
232561200
Elastic Stop Nut M6, Brass
850
250200022
Flat Washer M6.6 X 22
860
293720090
Cable Grommet
880
414115200
Стяжка 180мм
890
293750008
Tie-Rap 350 mm
895
276000470
Sheath Corrugated 22MM - 1100MM
2010
207063060
Hex. Screw M6 X 30
2020
250200114
Sealing Washer
2030
234062600
Flat Washer M6, Stainless
2040
232561200
Elastic Stop Nut M6, Brass
