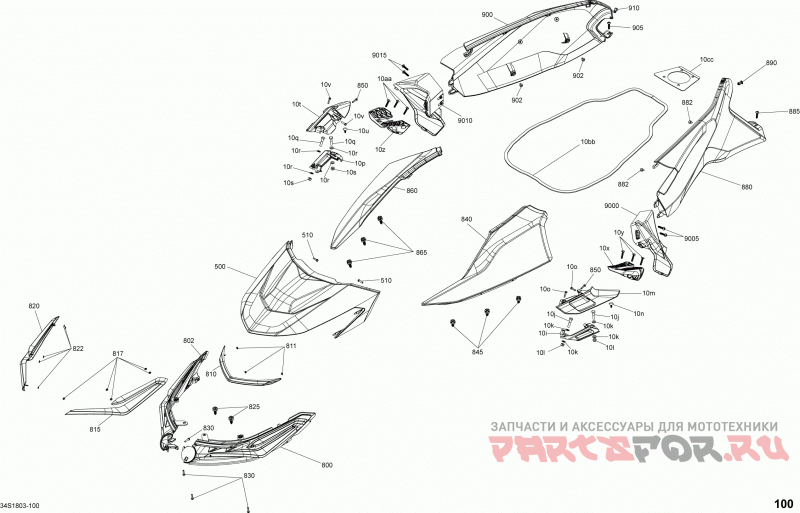

09- body front part - rxt package std

Sea-Doo (Bombardier) RXT 230

Sea-Doo (Bombardier)
#oem кодцена
10i
291004559
LH Cleat
10j
207083560
Hex. Screw M8 X 35
10k
234081600
Flat Washer 8 mm, Stainless
10l
232581200
Hex. Elastic Nut M8, Brass
10m
291004661
LH Shell Cleat
10n
293730011
Black Dart
10o
211000023
Hex. Screw 10-14 X 7/8
10p
291004720
RH Cleat
10q
207083560
Hex. Screw M8 X 35
10r
234081600
Flat Washer 8 mm, Stainless
10s
232581200
Hex. Elastic Nut M8, Brass
10t
291004719
RH Shell Cleat
10u
293730011
Black Dart
10v
211000023
Hex. Screw 10-14 X 7/8
10x
291004714
LH Support
10y
250001008
Torx Screw M6 X 3
10z
291004715
RH Support
10aa
250001008
Torx Screw M6 X 3
10bb
293250401
Прокладка
10cc
293250451
Прокладка
500
291004794
Hood B-160
510
211000023
Hex. Screw 10-14 X 7/8
800
291004942
LH Front Grille
802
291004943
RH Front Grille
810
291004822
Trim F B-352
811
250100206
Push Nut
815
291004834
Trim LH B-160
817
250100206
Push Nut
820
291004835
Trim RH B-160
822
250100206
Push Nut
825
293730071
Dard
830
211000023
Hex. Screw 10-14 X 7/8
840
291004777
Body Panel FL B-352
845
293730071
Dard
850
211000023
Hex. Screw 10-14 X 7/8
860
291004778
Body Panel FR B-352
865
293730071
Dard
880
291004779
Body Panel CTRL L B-352
882
293830005
Rubber Bumper
885
250001007
Torx Screw M6.81 X 30
890
293150230
Tuflok Plastic Rivet
900
291004783
Body Panel CTRL R B-352
902
293830005
Rubber Bumper
905
250001007
Torx Screw M6.81 X 30
910
293150230
Tuflok Plastic Rivet
9000
291004455
LH Side Grille
9005
250001007
Torx Screw M6.81 X 30
9010
291004456
RH Side Grille
9015
250001007
Torx Screw M6.81 X 30
