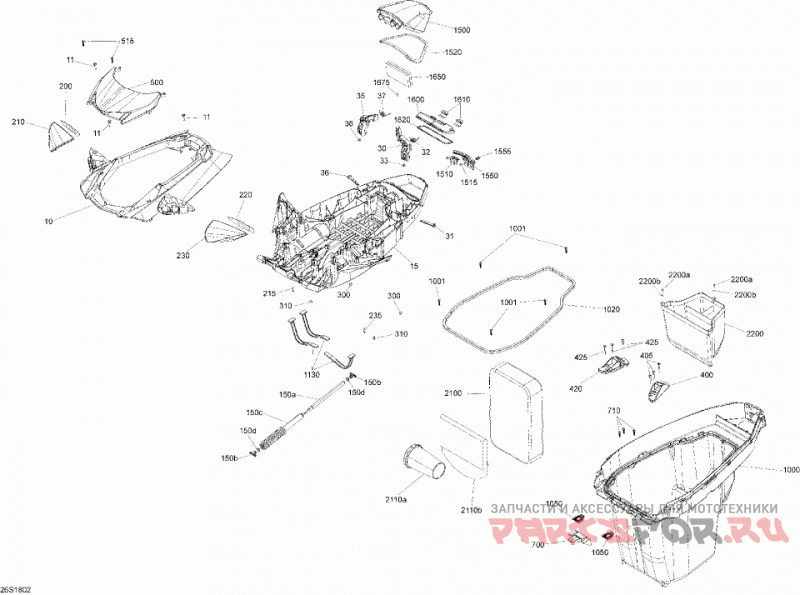

09- front cover - package ltd

Sea-Doo (Bombardier) 3- GTX 300

Sea-Doo (Bombardier)
#oem кодцена
10
269502394
Outer Skin
11
250000399
Hexagonal Cap Screw M6 X35
15
269502265
Inner Skin
30
269502267
LH Latch
31
269502326
Latch Axis
32
269502268
Latch Spring
33
293830005
Rubber Bumper
35
269502299
RH Latch
36
269502326
Latch Axis
37
269502268
Latch Spring
38
293830005
Rubber Bumper
150>150d
269502271
Gaz Shock
150b
269501717
Shock End Piece
150d
293750001
Tie-Rap 94 mm
200
269502276
RH Mirror Assembly
210
269502344
RH Mirror Cover B-413
215
211000023
Hex. Screw 10-14 X 7/8?
220
269502274
LH Mirror Assembly
230
269502343
LH Mirror Cover B-413
235
211000023
Hex. Screw 10-14 X 7/8?
300
293830005
Rubber Bumper
310
293830005
Rubber Bumper
400
269502385
LH Latch Base
405
250000827
Screw Torx M6 X 50
420
269502386
RH Latch Base
425
250000827
Screw Torx M6 X 50
500
269502283
Top Cover B-160
515
250001007
Torx Screw M6.81 X 30
700
269502282
Shock Base
710
250001007
Torx Screw M6.81 X 30
1000
264000144
Bin Compartement
1001
250001007
Torx Screw M6.81 X 30
1020
293250402
Прокладка
1050
269502325
Adjustment Hook
1130
269502145
Ремень
1500
264000132
Glove Box Door
1510
264000133
Glove Box Latch
1515
250100206
Push Nut
1520
293250403
Прокладка
1550
269502327
Glove Box Trim
1555
293150230
Tuflok Plastic Rivet
1600
264000134
Watertight Door
1610
269501718
Зажим
1620
293250412
Прокладка
1650
264000135
Sealed Compartment Foam
1675
264000137
Vent Membrane
2100
295100697
Trailering Cover
2110a
295100330
Safety Kit
2110b
269001936
Bag
2200 > 220
295100755
Rear Bin Organizer
2200a
250000287
Flanged Torx Screw K40 X 16
2200b
234042600
Flat Washer 4 mm, Stainless
