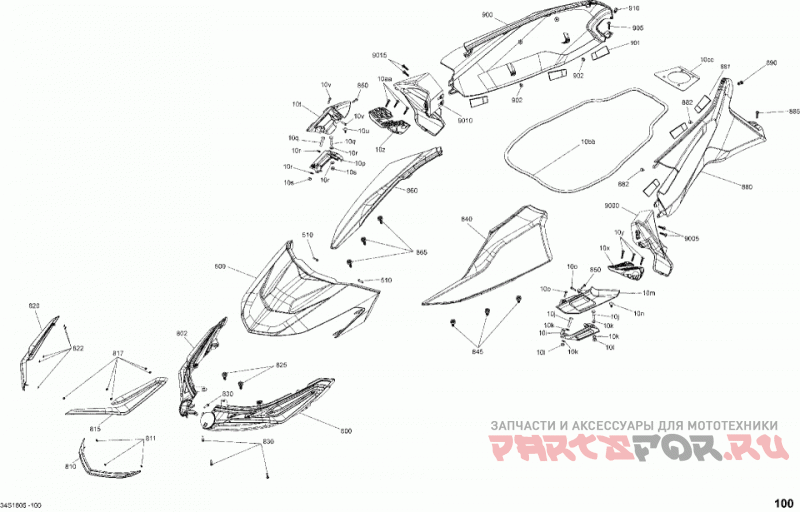

09- body front part - wake package pro

Sea-Doo (Bombardier) 2- WAKE PRO 230

Sea-Doo (Bombardier)
#oem кодцена
10i
291004559
LH Cleat
10j
207083560
Hex. Screw M8 X 35
10k
234081600
Flat Washer 8 mm, Stainless
10l
232581200
Hex. Elastic Nut M8, Brass
10m
291004661
LH Shell Cleat
10n
293730011
Black Dart
10o
211000023
Hex. Screw 10-14 X 7/8?
10p
291004720
RH Cleat
10q
207083560
Hex. Screw M8 X 35
10r
234081600
Flat Washer 8 mm, Stainless
10s
232581200
Hex. Elastic Nut M8, Brass
10t
291004719
RH Shell Cleat
10u
293730011
Black Dart
10v
211000023
Hex. Screw 10-14 X 7/8?
10x
291004714
LH Support
10y
250001008
Torx Screw M6 X 3
10z
291004715
RH Support
10aa
250001008
Torx Screw M6 X 3
10bb
293250401
Прокладка
10cc
293250451
Прокладка
500
291004793
Hood B-416 Painted
510
211000023
Hex. Screw 10-14 X 7/8?
800
291004942
LH Front Grille
802
291004943
RH Front Grille
810
291004814
Trim F B-160
811
250100206
Push Nut
815
291004551
Trim LH B-311
817
250100206
Push Nut
820
291004480
Trim RH B-311
822
250100206
Push Nut
825
293730071
Dard
830
211000023
Hex. Screw 10-14 X 7/8?
840
291004776
Body Panel FL B-160
845
293730071
Dard
850
211000023
Hex. Screw 10-14 X 7/8?
860
291004677
Body Panel FR B-160
865
293730071
Dard
880
291004780
Body Panel CTRL L B-160
881
278003618
Стопор
882
293830005
Rubber Bumper
885
250001007
Torx Screw M6.81 X 30
890
293150230
Tuflok Plastic Rivet
900
291004782
Body Panel CTRL R B-160
901
278003618
Стопор
902
293830005
Rubber Bumper
905
250001007
Torx Screw M6.81 X 30
910
293150230
Tuflok Plastic Rivet
9000
291004455
LH Side Grille
9005
250001007
Torx Screw M6.81 X 30
9010
291004456
RH Side Grille
9015
250001007
Torx Screw M6.81 X 30
