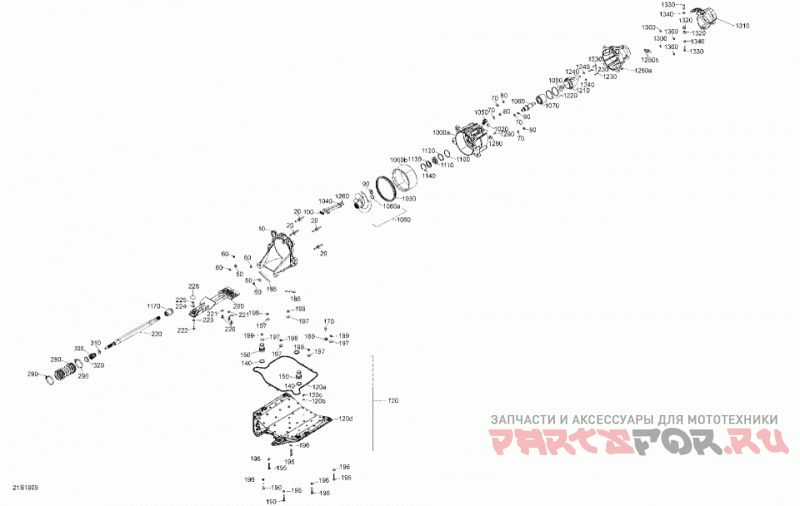

05- propulsion gts - 90

Sea-Doo (Bombardier) 1- GTS 90

Sea-Doo (Bombardier)
#oem кодцена
10
271001964
Pump Support
20
250300046
Square Stud
50
279000336
Шайба
60
232581200
Hex. Elastic Nut M8, Brass
70
293050001
Шайба
80
232581200
Hex. Elastic Nut M8, Brass
90
271002029
Reducer
100
293250084
Watertight Seal
120a
293250235
Уплотнение
120b
250200114
Sealing Washer
120c
250000384
Torx Screw M6 X 14
120d
250500005
Socket Drain Plug M6 X 12
140
293300121
Уплотнительное кольцо
150
293710166
Straight Fitting
160
271001920
Anode Zinc
170
250000965
Hex Screw M6 X 20
185
293250087
Gasket, Neoprene
190
250000782
Hexagonal Head Cap Screw M8 X 45
195
250000782
Hexagonal Head Cap Screw M8 X 45
196
293050001
Шайба
197
279000336
Шайба
199
232581200
Hex. Elastic Nut M8, Brass
200
271001969
Pump Grate
220
207381660
Hex. Screw M8 X 16, Scotch Grip
221
234081600
Flat Washer 8 mm, Stainless
222
250000782
Hexagonal Head Cap Screw M8 X 45
223
293050001
Шайба
224
279000336
Шайба
225
232581200
Hex. Elastic Nut M8, Brass
226
293830047
Protector Disk
230
271002059
Driveshaft
280
271001921
Bellow
290
293650079
Norma Clamp
310
509000442
Oeticker Gear Clamp, 25.6-706R
320
509000181
Oetiker Gear Clamp
1000a
271002018
Housing Impeller
1000b
267000897
Wear Ring
1020
267000469
Plug Plastic, Black
1030
293200087
Neoprene Seal
1040
271000785
Water Outlet
1050
267000282
Заглушка
1060
267000388
Impeller Shaft
1070
267000900
Angled Bearing
1080
250100104
Elastic Flanged Nut M20
1100
293300090
Уплотнительное кольцо
1110
271002071
Сальник
1120
271001393
Проставка
1130
293200089
Сальник
1140
293370038
Пружинное стопорное кольцо
1160a
293300044
Уплотнительное кольцо
1170
267000206
Impeller Boot
1210
267000428
Impeller Cover
1220
293300086
Уплотнительное кольцо
1230
205562560
Socket Head Screw M6 X 25, Scotch Grip
1240
234061600
Flat Washer M6, Stainless
1250a
267000789
Venturi
1250b
271001885
Siphon Tube
1260
293300013
Уплотнительное кольцо
1270
250000526
Hex. Screw M8 X 30, Scotch Grip
1280
271001920
Anode Zinc
1290
250000965
Hex Screw M6 X 20
1300
234081600
Flat Washer 8 mm, Stainless
1310
267000745
Steer Nozzle, Black
1320
293900001
Venturi Bushing
1330
250000526
Hex. Screw M8 X 30, Scotch Grip
1340
293050001
Шайба
300>320
295501148
Protector Sleeve Kit
