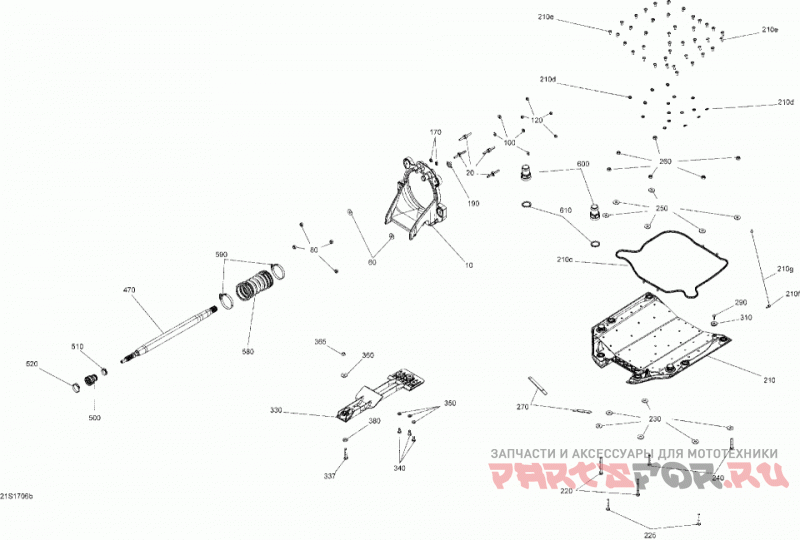

05- propulsion - 900 ho ace

Sea-Doo (Bombardier) GTI-GTR-GTS

Sea-Doo (Bombardier)
#oem кодцена
10
271001964
Pump Support
20
250300046
Square Stud
60
279000336
Шайба
80
232581200
Hex. Elastic Nut M8, Brass
100
293050001
Шайба
120
232581200
Hex. Elastic Nut M8, Brass
170
293250084
Watertight Seal
190
271002029
Reducer
210c
293250235
Уплотнение
210d
250200114
Sealing Washer
210e
250000384
Torx Screw M6 X 14
210f
250500005
Socket Drain Plug M6 X 12
220
250000782
Hexagonal Head Cap Screw M8 X 45
225
250000782
Hexagonal Head Cap Screw M8 X 45
230
293050001
Шайба
240
250000782
Hexagonal Head Cap Screw M8 X 45
250
279000336
Шайба
260
232581200
Hex. Elastic Nut M8, Brass
270
293250087
Gasket, Neoprene
290
207361660
Hex. Screw M6 X 16, Scotch Grip
310
271001920
Anode Zinc
330
271001969
Pump Grate
337
250000782
Hexagonal Head Cap Screw M8 X 45
340
207381660
Hex. Screw M8 X 16, Scotch Grip
350
234081600
Flat Washer 8 mm, Stainless
360
279000336
Шайба
365
232581200
Hex. Elastic Nut M8, Brass
380
293050001
Шайба
470
271002059
Driveshaft
500
295501148
Protector Sleeve
510
509000442
Oetiker Gear Clamp
520
509000181
Oetiker Gear Clamp
580
271001921
Bellow
590
293650079
Norma Clamp
600
293710166
Straight Fitting
610
293300121
Уплотнительное кольцо
