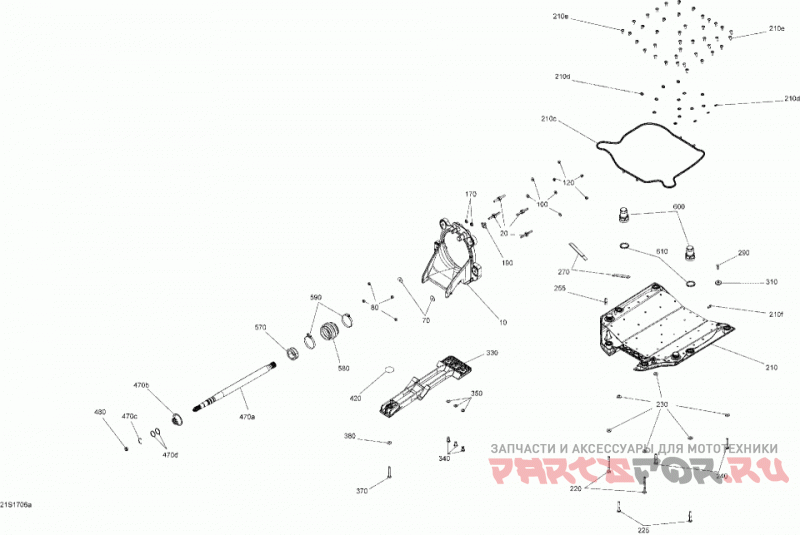

05- propulsion - 130-155-215

Sea-Doo (Bombardier) GTI-GTR-GTS

Sea-Doo (Bombardier)
#oem кодцена
10
271001964
Pump Support
20
250300046
Square Stud
70
279000326
Шайба
80
232581200
Hex. Elastic Nut M8, Brass
100
293050001
Шайба
120
232581200
Hex. Elastic Nut M8, Brass
170
293250084
Watertight Seal
190
271002029
Reducer
210c
293250235
Уплотнение
210d
250200114
Sealing Washer
210e
250000384
Torx Screw M6 X 14
210f
250500005
Socket Drain Plug M6 X 12
220
250000812
Hexagonal Head Cap Screw M8 X 75
225
250000782
Hexagonal Head Cap Screw M8 X 45
230
293050001
Шайба
240
250000782
Hexagonal Head Cap Screw M8 X 45
255
293000105
Cap Plug
270
293250087
Gasket, Neoprene
290
207361660
Hex. Screw M6 X 16, Scotch Grip
310
271001920
Anode Zinc
330
271001969
Pump Grate
340
207381660
Hex. Screw M8 X 16, Scotch Grip
350
234081600
Flat Washer 8 mm, Stainless
370
250000782
Hexagonal Head Cap Screw M8 X 45
380
293050001
Шайба
420
293830047
Protector Disk
470a
271001719
Drive Shaft
470a
271001724
Drive Shaft
470b
295501174
Support Ring
470c
271001577
C-Clip
470c
271001575
C-Clip
470d
293300107
Уплотнительное кольцо
470d
293300044
Уплотнительное кольцо
480
272000173
Drive Shaft Plug
570
295501174
Carbon Ring
580
271001933
Bellow
590
293650079
Norma Clamp
600
293710166
Straight Fitting
610
293300121
Уплотнительное кольцо
