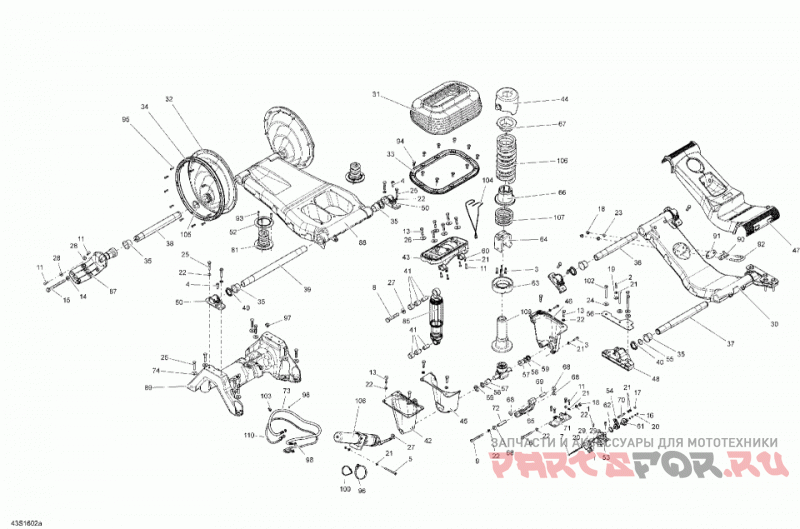

08- suspension - gtx ltd

Sea-Doo (Bombardier) GTX

Sea-Doo (Bombardier)
#oem кодцена
1
205561260
Socket Head Screw M6 X 12, Scotch Grip
2
205562060
Socket Head Screw M6 X 20, Scotch Grip
3
205562560
Socket Head Screw M6 X 25, Scotch Grip
4
205582060
Socket Head Screw M8 X 20, Scotch Grip
5
207067060
Hex. Screw M6 X 70
6
207086060
Hex. Screw M8 x 60
7
207144060
Hex. Screw M4 X 40
8
207227060
Hex. Screw M12 X 70, Scotch Grip
9
207287560
Hex. Screw M8 x 75, Scotch Grip
11
207362060
Hex. Screw M6 X 20, Scotch Grip
13
207383060
Hex. Screw M8 X 30, Scotch Grip
14
211200051
Шайба
15
230201060
Hex. Screw M10 X 110, Scotch Grip
16
232541200
Elastic Stop Nut M4
17
232561200
Elastic Stop Nut M6, Brass
18
232581200
Hex. Elastic Nut M8, Brass
19
234001600
Flat Washer 10 mm, Stainless
20
234041600
Flat Washer 4 mm, Stainless
21
234061600
Flat Washer M6, Stainless
22
234080600
Flat Washer M8, Stainless
23
234081600
Flat Washer 8 mm, Stainless
24
234082600
Flat Washer 8 mm, Stainless
25
250000729
Hex. Screw M8 X 40, SOtch Grip
26
250200175
Flat Washer 8 mm, Stainless
27
250200053
Flat Washer M12
28
250200115
Flat Washer M6
31
279000008
Central Bellows
32
279000009
Lateral Bellows
33
279000010
Retaining Plate
34
279000011
Retaining Ring
35
279000019
Втулка
36
279000031
Pivot Tube
37
279000033
Pivot Tube
38
279000038
Pivot Tube
39
279000041
Pivot Tube
40
279000047
Rubber Bumper
41
279000051
Втулка
42
279000055
Shock Lower Holder
43
279000057
Shock Upper Holder
44
279000061
Upper Spring Holder
45
279000070
LH Spring Holder
46
279000074
RH Spring Holder
47
279000080
Rear Arm Moulding
48
279000083
LH Rear Base
50
279000092
RH Clamp
50
279000089
LH Clamp
52
279000115
Retaining Ring
53
279000098
Position Sensor Bracket
54
279000099
Sensor Lever
55
279000100
Retaining Ring
56
279000114
Retaining Plate
57
279000103
Втулка
58
279000104
Уплотнительное кольцо
59
279000105
Втулка
60
279000106
Зажим
61
279000107
Position Sensor Cover
62
279000108
Уплотнительное кольцо
63
279000121
Lower Spring Protector
64
279000154
Spring Alignment Adaptor
65
279000157
Spring Alignment Arm
66
279000130
Spring Spacer
67
279000134
Upper Spring Protector
68
279000137
Втулка
69
279000138
Проставка
70
279000139
Threaded Rod
71
279000155
Держатель
72
279000153
Проставка
73
515175442
Tubing 6 mm
74
279000336
Шайба
81
279000193
Rubber Bumper
85
279000247
Shock
87
279000306
Foot Rest
89
279000316
Front Arm Base
90
291002351
Замок
91
291001386
Finition Plate, Black
92
292000933
U-Clamp
93
293150005
Pop Rivet 3/16
94
293150123
Pop Rivet 3/16
95
293150176
Pop Rivet 3/16
96
293650079
Norma Clamp
97
293730040
Mount Dart
98
293750001
Tie-Rap 94 mm
100
293750008
Tie-Rap 350 mm
102
207285060
Hex. Screw M8 X 50, Scotch Grip
103
414115200
Стяжка 180мм
104
708200118
Retaining Cable
105
293650242
Oetiker Clamp
106
279000128
Painted Spring
107
279000131
Painted Spring
110
279000162
Connector Hose
29a
270000544
Уплотнительное кольцо
