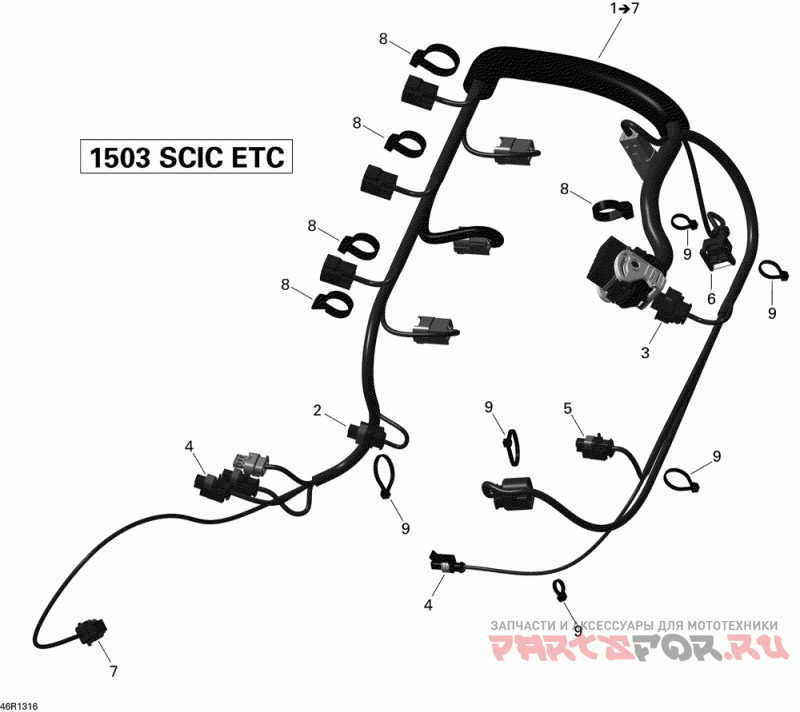

Жгут проводов двигателя
Sea-Doo (Bombardier) GTR 215
| # | oem код | название | цена |
|---|---|---|---|
1 | 420665206 Cablage *wiring Harness Assy.
(inclus 1 7 ) | Cablage *wiring Harness Assy.
(inclus 1 7 ) | |
2 | 710001136 Корпус | Корпус | |
3 | 278001829 Bloc Connect. *connector | Bloc Connect. *connector | |
4 | 278001005 Bloc 2 Circ.mal*housing-tab | Bloc 2 Circ.mal*housing-tab | |
5 | 278001005 Bloc 2 Circ.mal*housing-tab | Bloc 2 Circ.mal*housing-tab | |
6 | 415128566 Housing-tab | Housing-tab | |
7 | 278001005 Bloc 2 Circ.mal*housing-tab | Bloc 2 Circ.mal*housing-tab | |
8 | 420866716 Attache *tie Rap | Attache *tie Rap | |
9 | 420866714 Attache *tie Rap | Attache *tie Rap |
