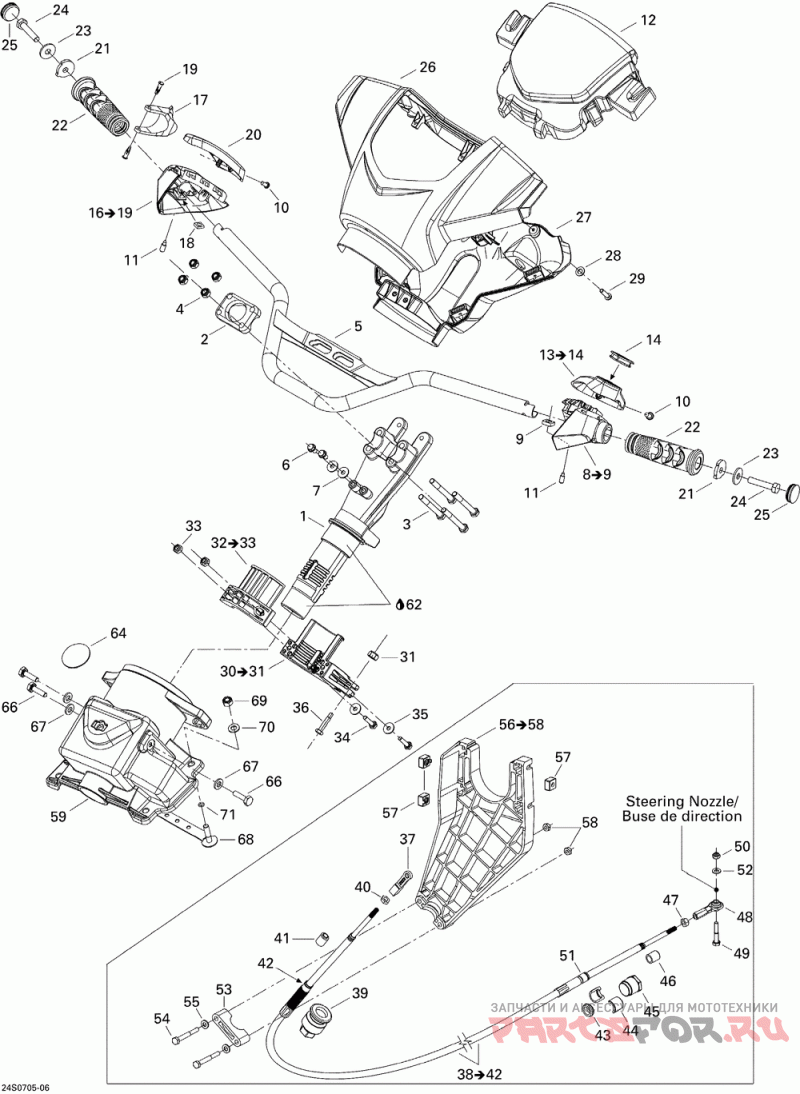

Рулевая система

Sea-Doo (Bombardier) GTI 4-TEC RENTAL, 1503 DT

Sea-Doo (Bombardier)
#oem кодцена
1
277001507
Arbre Direction*steering Shaft ( )
2
277000142
Bride Direction*steering Clamp ( )
3
207087060
Screw-hex.cap Din.931a2 ( )
4
232581200
Nut-stop Elastic Din.985 ( )
5
277001498
Guidon Soude *handle Bar ( )
6
211000036
Screw-forming Hex.hd. ( )
7
234062600
Washer-flat Din.9021b-a2 ( )
8
277001481
Корпус кнопки стоп
9
232860600
Nut-square Thin M6 Din.562a2 ( )
10
209630960
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
11
250000036
Screw-socket Set M6x16 Ss304-a2 ( )
12
277001543
Tampon G.. Ass *handle Pad Ass ( )
13
277001440
Couvercle *housing-cover (includes 13 To 14 )
14
278001713
Bouton D Arret *knob-stop ( )
16
277001483
Log.man.acc.ass*housing-thrott (includes 16 To 19 )
17
277001485
Manette Acc. *throttle Handle ( )
19
277000381
Goupille *pin ( )
20
277001023
Couvercle *housing-cover ( )
21
277000554
Ajout Gaine *insert-grip ( )
22
277001336
Gaine Guidon *handle Grip ( )
24
250000002
Винт Din.933a2 (отпуск.по 10шт)
25
277000203
Capuchon Gaine *cap-grip Black ( )
26
277001518
Couvre Guidon *steer. Cover ( )
27
277001519
Couvre Guidon *steer. Cover ( )
28
234051600
Washer-flat Din.125a-a2 ( )
29
241141660
Screw-pt.hex.flange K40 X 16 ( )
30
277001520
Кронштейн крепления
31
232561200
Nut-stop Elastic Din.985 ( )
32
277001521
Palier Bras *thrust-arm (includes 32 To 33 )
34
207162560
Screw-hex.cap Din.933a2 ( )
36
211000081
Screw-hex.cap ( )
37
277001180
Joint Rotule *ball Joint ( )
38
277001474
Cable Direction*steering Cable (includes 38 To 42 )
39
277000782
Bouton Ajust. *knob-ajust. ( )
40
211100056
Nut-hex. 1/4-28 Ss-304 ( )
41
277000849
Embout Petit *boot-small ( )
42
277000846
Embout Grand *boot-large ( )
43
293830063
Rondelle Caout.*rubber Washer ( )
44
277001527
Demi-bague *half-ring ( )
45
277000784
Barrure Cable *lock-cable ( )
48
277000775
Joint Rotule *ball Joint ( )
49
207063560
Screw-hex.cap Din.931a2 ( )
52
234061600
Washer-flat Din.125a-a2 ( )
53
277001528
Palier Support *thrust Support ( )
54
207065060
Screw-hex.cap Din.931a2 ( )
56
277001522
Держатель троса
57
269500252
Logement Ecrou *housing-nut As ( )
59
277001471
Support Direct.*support-steer. ( )
62
293550010
Graisse Synth. *grease-synth. ( )
64
293250169
Joint Etanche *gasket ( )
66
207162060
Screw-hex.cap Din.933a2 ( )
68
277001072
Support Direct.*support-steer. ( )
70
234081600
Washer-flat Din.125a-a2 ( )
71
293300123
Кольцо
