07- steering system 1 для гидроциклов Sea-Doo (Bombardier) 3D 947 DI (2007)

Москва и регионы России

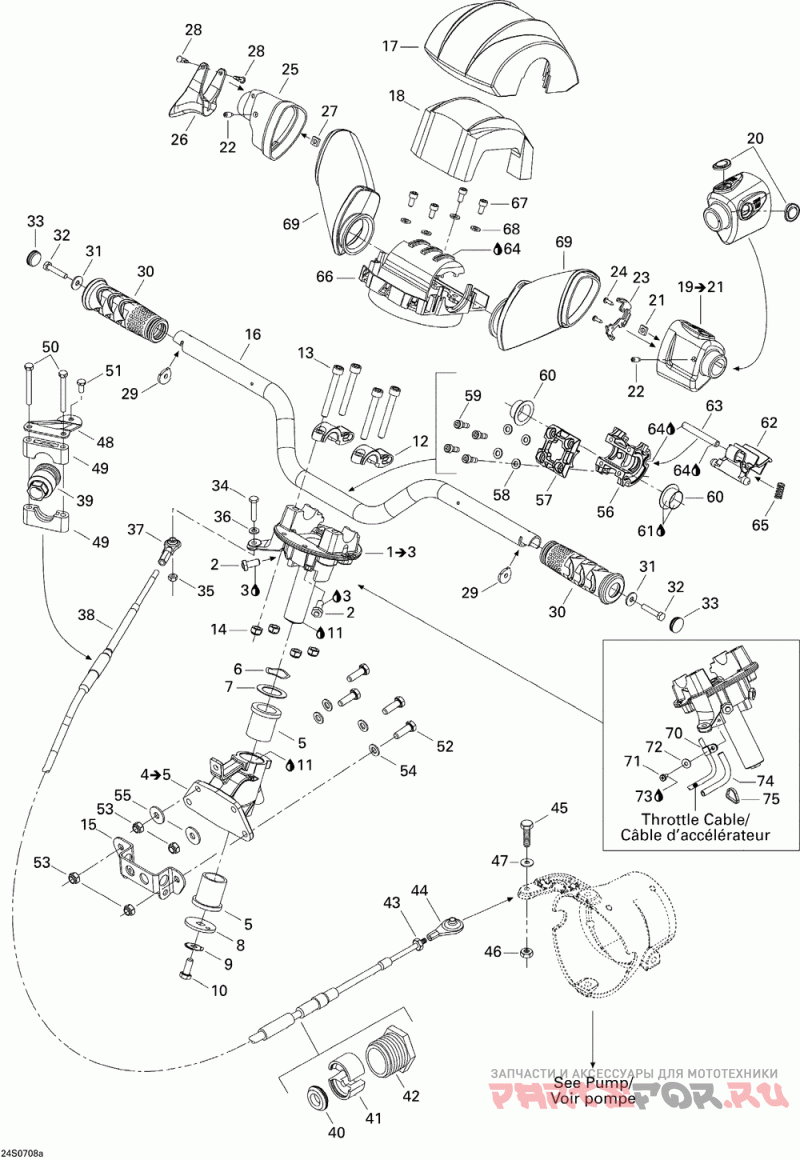

07- steering system 1

Sea-Doo (Bombardier) 3D 947 DI

07- steering system 1

#

oem код

название

цена

1

Tige Assemble *rod Ass Y (includes 1 To 3 )

Tige Assemble *rod Ass Y (includes 1 To 3 )

2

Actuateur Otas*otas Magnet ( )

Actuateur Otas*otas Magnet ( )

3

Loctite 425 *loctite-425 ( )

Loctite 425 *loctite-425 ( )

4

Palier *pillow Block (includes 4 To 5 )

Palier *pillow Block (includes 4 To 5 )

5

Douille *bushing ( )

Douille *bushing ( )

6

Spring Washer ( )

Spring Washer ( )

7

Cale Epaisseur *shim ( )

Cale Epaisseur *shim ( )

8

Rondelle Reten *washer-retain ( )

Rondelle Reten *washer-retain ( )

9

Rondelle *washer ( )

Rondelle *washer ( )

10

Screw-hex.cap Din.933a2 ( )

Screw-hex.cap Din.933a2 ( )

11

Graisse Synth. *grease-synth. ( )

Graisse Synth. *grease-synth. ( )

12

Bride Direction*steering Clamp ( )

Bride Direction*steering Clamp ( )

13

Screw-socket Hd.din.912a2 ( )

Screw-socket Hd.din.912a2 ( )

14

Nut-stop Elastic Din.985a2 ( )

Nut-stop Elastic Din.985a2 ( )

15

Support De Bride *latch Support ( )

Support De Bride *latch Support ( )

16

Guidon *bar-handle ( )

Guidon *bar-handle ( )

17

Tampon Guidon *steering Pad ( )

Tampon Guidon *steering Pad ( )

18

Mousse De Tamp *pad Foam ( )

Mousse De Tamp *pad Foam ( )

19

Logement *housing (includes 19 To 21 )

Logement *housing (includes 19 To 21 )

20

Bouton Inter. *knob-switch ( )

Bouton Inter. *knob-switch ( )

21

Nut-square Thin M6 Din.562a2 ( )

Nut-square Thin M6 Din.562a2 ( )

22

Screw-socket Set M6x16 Ss304-a2 ( )

Screw-socket Set M6x16 Ss304-a2 ( )

23

Plaque *plate ( )

Plaque *plate ( )

24

Screw-tapp.pan Hd.ph.din.7981c-a2 ( )

Screw-tapp.pan Hd.ph.din.7981c-a2 ( )

25

Log.man.acc. *housing-thrott ( )

Log.man.acc. *housing-thrott ( )

26

Manette *handle ( )

Manette *handle ( )

28

Goupille *pin ( )

Goupille *pin ( )

29

Ajout Gaine *insert-grip ( )

Ajout Gaine *insert-grip ( )

30

Gaine Guidon *handle Grip ( )

Gaine Guidon *handle Grip ( )

31

Washer-flat Din.9021b-a2 ( )

Washer-flat Din.9021b-a2 ( )

32

Винт Din.933a2 (отпуск.по 10шт)

Винт Din.933a2 (отпуск.по 10шт)

33

Capuchon Gaine *cap-grip Black ( )

Capuchon Gaine *cap-grip Black ( )

34

Screw-hex.cap Din.931a2 ( )

Screw-hex.cap Din.931a2 ( )

35

Nut-stop Elastic Din.985-a2 ( )

Nut-stop Elastic Din.985-a2 ( )

36

Washer-flat Din.125a-a2 ( )

Washer-flat Din.125a-a2 ( )

37

Joint Rotule *ball Joint ( )

Joint Rotule *ball Joint ( )

38

Cable Direction*cable-steering ( )

Cable Direction*cable-steering ( )

39

Bouton Ajust. *knob-ajust. ( )

Bouton Ajust. *knob-ajust. ( )

40

Rondelle Caout.*rubber Washer ( )

Rondelle Caout.*rubber Washer ( )

41

Demi-bague *half-ring ( )

Demi-bague *half-ring ( )

42

Barrure Cable *lock-cable ( )

Barrure Cable *lock-cable ( )

43

Nut-hex. 1/4-28 Ss-304 ( )

Nut-hex. 1/4-28 Ss-304 ( )

45

Screw-hex.cap Din.931a2 ( )

Screw-hex.cap Din.931a2 ( )

48

Support Cable *support-cable ( )

Support Cable *support-cable ( )

49

Palier Support *thrust Support ( )

Palier Support *thrust Support ( )

50

Screw-hex.cap Din.931a2 S.grip ( )

Screw-hex.cap Din.931a2 S.grip ( )

51

Винт Din.933a2 (отпуск.по 10шт)

Винт Din.933a2 (отпуск.по 10шт)

52

Screw-hex.cap Din.933a2 ( )

Screw-hex.cap Din.933a2 ( )

54

Washer-flat Din.125a-a2 ( )

Washer-flat Din.125a-a2 ( )

55

Washer-flat Din.9021b-a2 ( )

Washer-flat Din.9021b-a2 ( )

56

Bloc Indexation*block Indexing ( )

Bloc Indexation*block Indexing ( )

57

Support *support ( )

Support *support ( )

59

Screw-socket Din.912a2 S.grip ( )

Screw-socket Din.912a2 S.grip ( )

60

Douille. Rebord*flange Bushing ( )

Douille. Rebord*flange Bushing ( )

62

Levier *lever ( )

Levier *lever ( )

63

Tige Blocage *rod Lock ( )

Tige Blocage *rod Lock ( )

65

Ressort *spring ( )

Ressort *spring ( )

66

Support Tampon *support-pad ( )

Support Tampon *support-pad ( )

67

Screw-socket Din.912a2 S.grip ( )

Screw-socket Din.912a2 S.grip ( )

69

Couvercle *cover ( )

Couvercle *cover ( )

70

Attache Collier*open Clamp ( )

Attache Collier*open Clamp ( )

71

Screw-pan Hd.ph.din.7985a-a2 ( )

Screw-pan Hd.ph.din.7985a-a2 ( )

72

Washer-flat Din.9021b-a2 ( )

Washer-flat Din.9021b-a2 ( )

73

Loctite 243

Loctite 243

74

Gaine *housing ( )

Gaine *housing ( )

75

Tie Rap 142mm *tie-rap 142mm ( )

Tie Rap 142mm *tie-rap 142mm ( )
