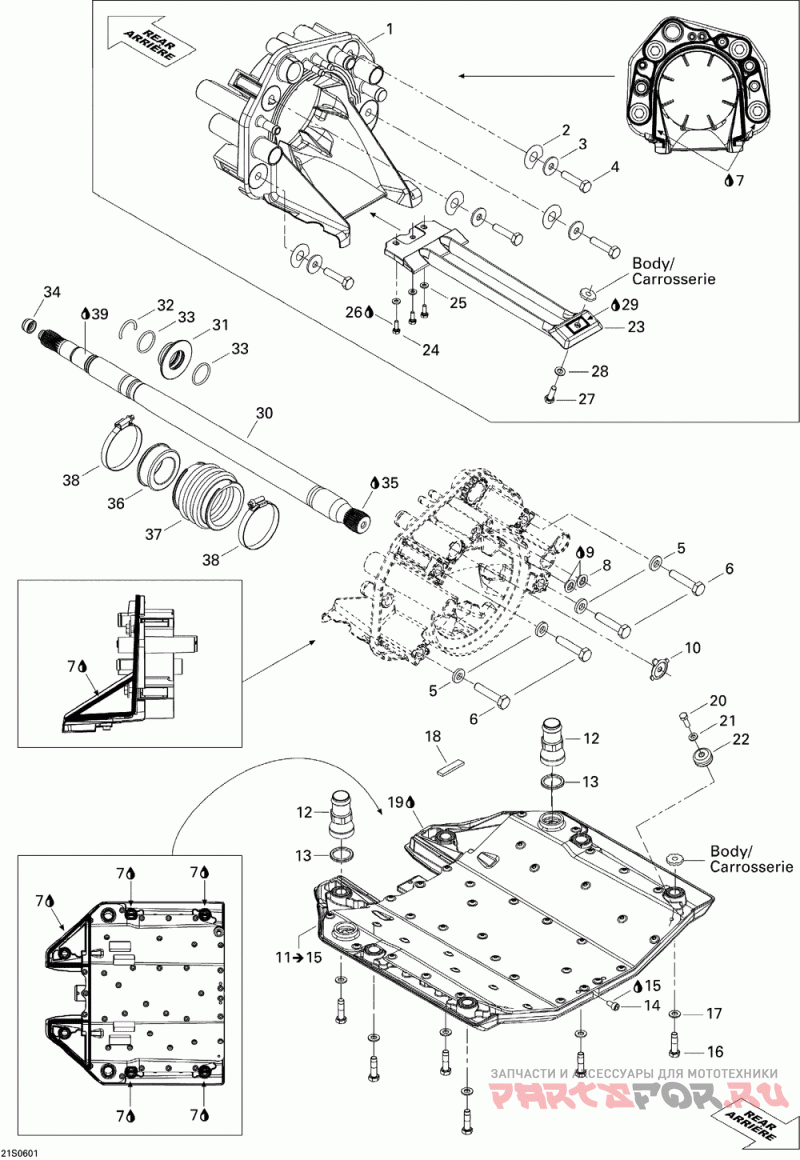

Вал водомета

Sea-Doo (Bombardier) RXP, 2006

Sea-Doo (Bombardier)
#oem кодцена
1
271001546
Support Pompe *support-pump ( )
2
272000053
Cale Epaisseur *shim ( )
3
234002600
Washer-flat Din.9021b-a2 ( )
4
250000189
Screw-hex.cap Din.931a2 S.grip ( )
5
211200051
Rondelle *washer-flat ( )
6
250000188
Screw-hex.cap Din.931a2 S.grip ( )
7
293800066
Scellant 5900 *sealant-5900 ( )
8
293250084
Кольцо
9
293800038
Loctite 518 *loctite-518 ( )
10
291001887
Reducteur *reducer ( )
11
271001557
Plaque *riding Plate (includes 11 To 15 )
11
293300121
Joint Torique *o-ring (includes 11 To 15 )
11
293710111
Raccord Droit *fitting-strait (includes 11 To 15 )
14
250500005
Plug-drain M6x12 Din.912a2 Ss-304 ( )
15
293800013
Scellant Tuyau *sealant-pipe ( )
16
250000230
Винт Din.933a2 (отпуск.по 10шт)
17
234081600
Washer-flat Din.125a-a2 ( )
18
293250087
Joint Etanche *gasket ( )
20
207362060
Винт Din.933a2 (отпуск.по 10шт)
21
234061600
Washer-flat Din.125a-a2 ( )
22
271001487
Anode Zinc *anode Zinc ( )
23
271001476
Grille Pompe *grate-pump ( )
24
207161660
Screw-hex.cap Din.933a2 ( )
26
293800005
Loctite 271 *loctite-271 ( )
27
207383060
Винт Din.933a2 (отпуск.по 10шт)
30
271001601
Arbre Transm. *shaft-drive ( )
31
271001434
Bague Supp.flot*support Ring ( )
32
271001433
"pince En ""c"" *""c"" Clip" ( )
33
293300107
Кольцо
34
272000173
Bouchon *plug ( )
35
293550010
Graisse Synth. *grease-synth. ( )
36
271001420
Bague Carbone *carbon Ring ( )
37
271001422
Soufflet *bellow ( )
38
293650079
Bride Serrage *clamp-norma ( )
