Связь рулевого управления для гидроциклов Sea-Doo (Bombardier) GTX 4-TEC, STD (2006)

Москва и регионы России

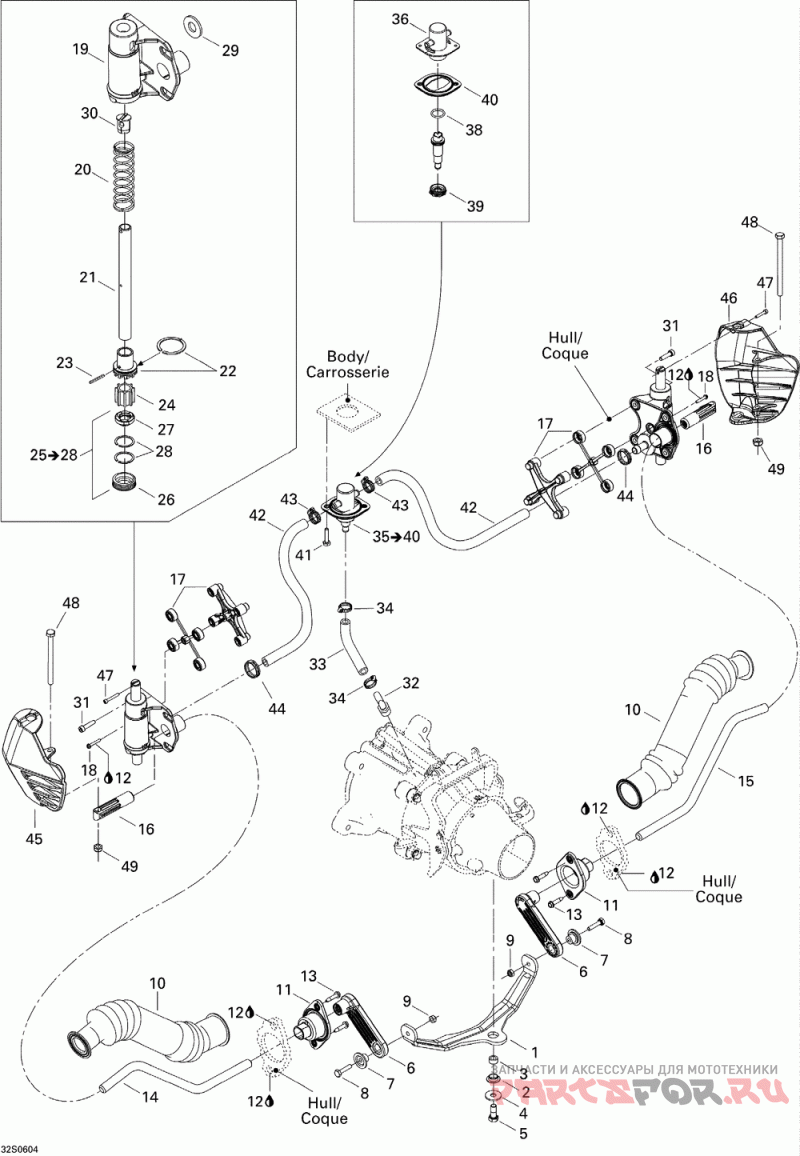

Связь рулевого управления

Sea-Doo (Bombardier) GTX 4-TEC, STD

Связь рулевого управления

#

oem код

название

цена

1

"bras En ""u"" *lever ""u""" ( )

"bras En ""u"" *lever ""u""" ( )

2

Douil.venturi*bushing-venturi ( )

Douil.venturi*bushing-venturi ( )

3

Douille *bushing ( )

Douille *bushing ( )

4

Washer-flat Din.9021b-a2 ( )

Washer-flat Din.9021b-a2 ( )

5

Винт Din.933a2 (отпуск.по 10шт)

Винт Din.933a2 (отпуск.по 10шт)

6

Levier *lever ( )

Levier *lever ( )

7

Douille Epaul. *bushing-flange ( )

Douille Epaul. *bushing-flange ( )

8

Screw-hex.cap Din.933a2 ( )

Screw-hex.cap Din.933a2 ( )

9

Nut-stop Elastic Din.985 ( )

Nut-stop Elastic Din.985 ( )

10

Tube Etanche*seal Tube ( )

Tube Etanche*seal Tube ( )

11

Passe Tige *grommet-rod ( )

Passe Tige *grommet-rod ( )

13

Screw-plastite Hex.wr.hd.unsl ( )

Screw-plastite Hex.wr.hd.unsl ( )

14

Tige Gauche *lh.tie Rod ( )

Tige Gauche *lh.tie Rod ( )

15

Tige Droite *tie-rod Rh. ( )

Tige Droite *tie-rod Rh. ( )

16

Raccord *adaptor ( )

Raccord *adaptor ( )

17

Plaque Supp.*support Plate ( )

Plaque Supp.*support Plate ( )

18

Screw-pt.hex.flange K40 X 25 ( )

Screw-pt.hex.flange K40 X 25 ( )

19

Support Gauche *lh.support ( )

Support Gauche *lh.support ( )

19

Support Droit *rh.support ( )

Support Droit *rh.support ( )

20

Ressort *spring ( )

Ressort *spring ( )

21

Tige-pivot *pivot-rod ( )

Tige-pivot *pivot-rod ( )

22

Piston Ass. *piston-assy. ( )

Piston Ass. *piston-assy. ( )

23

Spring-pin Iso.8752 M3 X 20 ( )

Spring-pin Iso.8752 M3 X 20 ( )

24

Entretoise *spacer ( )

Entretoise *spacer ( )

25

Couver.ass.*cover Ass Y (includes 25 To 28 )

Couver.ass.*cover Ass Y (includes 25 To 28 )

26

Couvercle *cover-threaded ( )

Couvercle *cover-threaded ( )

27

Bague D Usure *wear Ring ( )

Bague D Usure *wear Ring ( )

29

Joint Etanche*seal-lh. ( )

Joint Etanche*seal-lh. ( )

30

Ajout *insert ( )

Ajout *insert ( )

31

Screw-socket Din.912a2 S.grip ( )

Screw-socket Din.912a2 S.grip ( )

32

Raccord Coude *elbow-ass Y ( )

Raccord Coude *elbow-ass Y ( )

33

Boyau *hose ( )

Boyau *hose ( )

34

Bride Serrage *clamp-norma ( )

Bride Serrage *clamp-norma ( )

35

Soupape Ass. *valve Ass Y (includes 35 To 40 )

Soupape Ass. *valve Ass Y (includes 35 To 40 )

38

Кольцо

Кольцо

40

Joint Etanche *seal ( )

Joint Etanche *seal ( )

42

Boyau 12.5mm. *hose-12.5mm. ( )

Boyau 12.5mm. *hose-12.5mm. ( )

43

Bride Serrage *hose Clamp ( )

Bride Serrage *hose Clamp ( )

44

Bride Serrage*clamp-oetiker ( )

Bride Serrage*clamp-oetiker ( )

45

Derive Gauche *lh.rudder ( )

Derive Gauche *lh.rudder ( )

46

Derive Droite *rh.rudder ( )

Derive Droite *rh.rudder ( )

47

Screw-socket Hd.din.912a2 ( )

Screw-socket Hd.din.912a2 ( )

48

Screw-hex.cap M8 X 110 ( )

Screw-hex.cap M8 X 110 ( )

49

Nut-stop Elastic Din.985 ( )

Nut-stop Elastic Din.985 ( )
