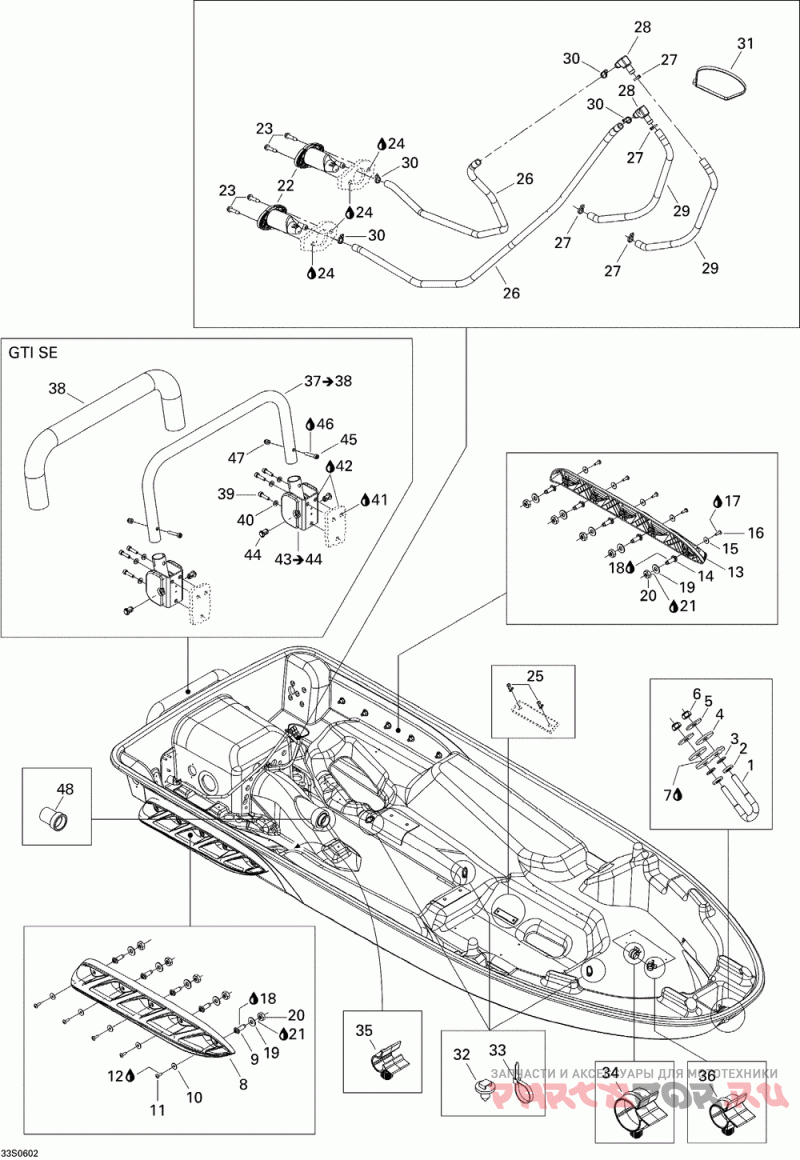

09- hull gti se

Sea-Doo (Bombardier) GTI SE

Sea-Doo (Bombardier)
#oem кодцена
1
292000933
Bride En U *u-clamp ( )
2
293050001
Rondelle Plate *flat Washer ( )
3
234081100
Washer-flat Din.125a ( )
4
293830037
Rondelle Caout.*washer-rubber ( )
5
250200011
Washer-flat Stlss. M8 ( )
6
232581200
Nut-stop Elastic Din.985 ( )
8
292001174
Stabilisateur D*sponson Rh ( )
9
292001046
Adaptateur *adapter ( )
10
250200022
Washer-flat M6.6 X 22 ( )
11
250000234
Torx-truss M/s M6 X 20 Stlss ( )
12
293800060
Loctite 243
13
292001175
Stabilisateur G* Sponson Lh ( )
19
250200053
Rondelle M12 *flat Washer ( )
20
250100078
Nut-stop Elastic Din.985a2 ( )
22
292001252
Bouch.purge*drain Plug Ass Y ( )
23
211000023
Screw-plastite Hex.wr.hd.unsl ( )
25
293150037
Rivet Avdel *rivet-avdel 3/16 ( )
26
275000007
Boyau 8mm. *hose-8mm. ( )
27
293750001
Tie Rap 94mm *tie-rap 94mm ( )
28
293710057
Raccord Coude90*fitting-elbow ( )
31
293750008
Tie Rap 350mm *tie-rap 350mm ( )
32
293730018
Dard D Ancrage *dart-mount ( )
33
414115200
Tie-rap 180 Mm ( )
34
275500590
Attache *retainer ( )
35
275500528
Attache Boyau*hose-retainer ( )
36
275500527
Attache *retainer ( )
37
292001038
Tube Echelle *ladder Tube (gti Se, Includes 37 To 38 )
39
250000076
Screw-socket Din.912a2 S.grip (gti Se )
40
234061600
Washer-flat Din.125a-a2 (gti Se )
42
293800066
Scellant 5900 *sealant-5900 (gti Se )
43
292001115
Support Echelle*support-stair (gti Se, Includes 43 To 44 )
44
293150089
Plastique Rivet Tuflok (gti Se )
45
205063560
Screw-socket Hd.din.912a2 (gti Se )
47
232361600
Nut-domed Hexagonal Din.1587-a2 (gti Se )
48
292000975
Passe Coque *insert Hull ( )
