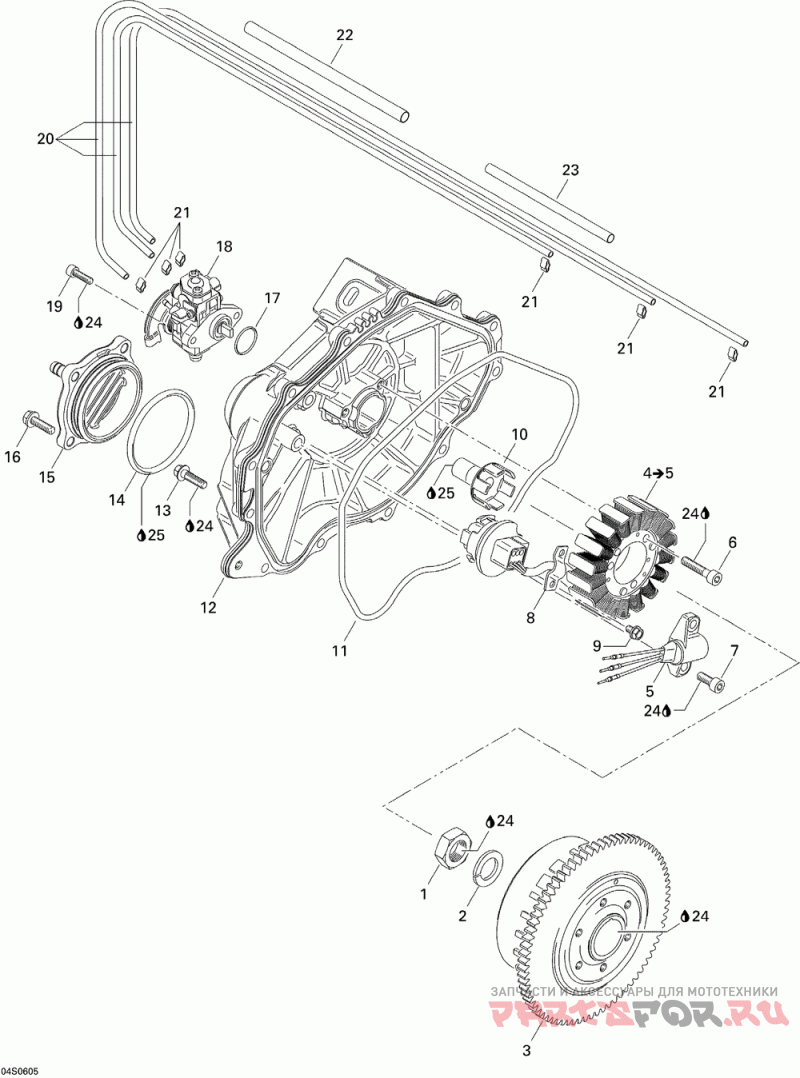

03- magneto and oil pump

Sea-Doo (Bombardier) 3D 947 DI

Sea-Doo (Bombardier)
#oem кодцена
1
420942220
Nut-hex.m18 ( )
2
420945757
Rondelle-frein *washer-lock#18 ( )
3
420966822
Flywheel Hub ( )
4
420888656
Plaque Reacteur*plate-stator ( )
5
420966760
Capteur Ass. *sensor-assy. ( )
6
420640051
Vis Allen *screw-socket ( )
7
420940566
Screw-hex.m6 X 20 ( )
8
420853080
Plaque Retenue *plate-retainer ( )
9
207150844
Screw-hex.cap Din.933 ( )
10
420837395
Arbre Pompe Hui*shaft-pump Oil ( )
11
420931690
Кольцо
12
420811425
Carter Ignition*ignition Cover ( )
13
420240033
Flange Din.6921 ( )
14
420850390
O-ring ( )
15
420811225
Couv.circ.eau *cover-waterchannel ( )
16
420941253
Vis Taptite *screw-taptite ( )
17
293300018
Кольцо
18
420888541
Pomp.huile Ass.*pump-oil Assy. ( )
19
205051660
Screw-socket Hd.din.912a2 ( )
20
414413800
Boyau D Huile *hose-oil ( )
21
293650105
Bride Serrage *clamp-oetiker ( )
22
420960205
Boyau Protect. *hose-protector ( )
23
420260465
Boyau Protect. *hose-protector ( )
24
293800060
Loctite 243
25
413707000
Dow Corning 111*dow Corning 111 ( )
