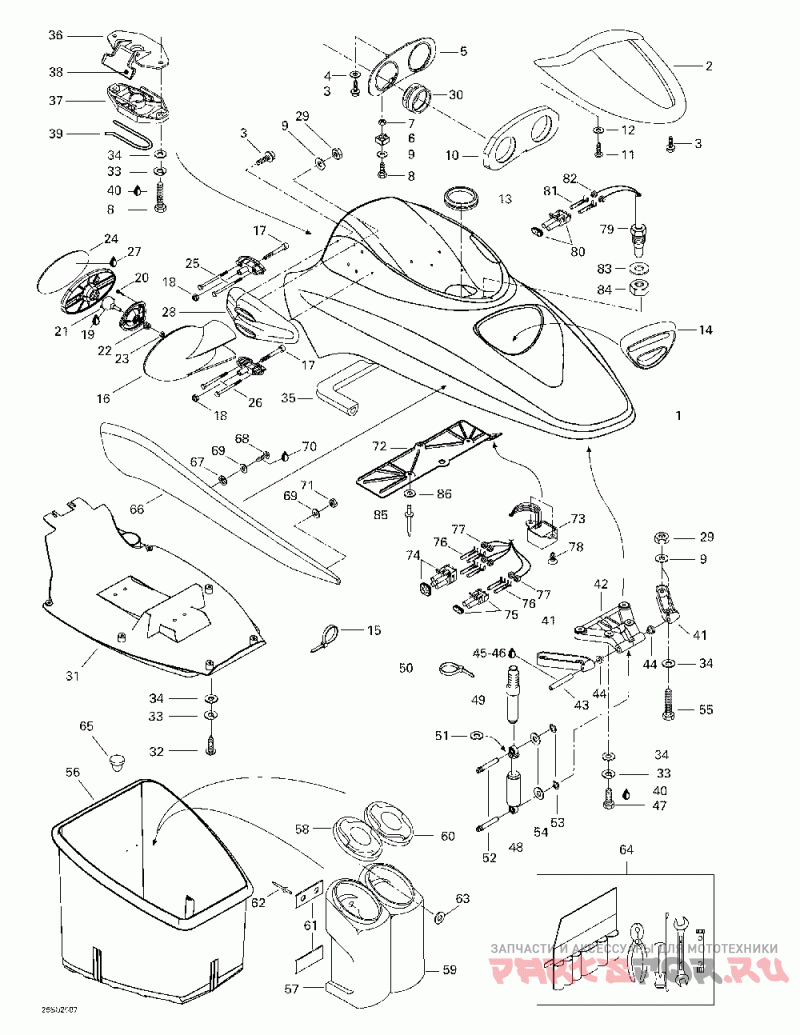

Передний капот

Sea-Doo (Bombardier) GTX RFI, 5648/5658/5515/5516

Sea-Doo (Bombardier)
#oem кодцена
1
269500729
Couv.bagage Sup*cover-stor.upp Gtx Rfi 5648/5658 (gold).
269500860
Couv.bagage Sup*cover-stor.upp Gtx Rfi 5515/5516 (cozumel).
2
269500730
Deflecteur *deflector Gtx Rfi 5648/5658 (gold).
269500765
Deflecteur *deflector Gtx Rfi 5515/5516 (cozumel).
3
241141660
Винт K40 X 16
4
234041600
Шайба
5
269500588
Tableau De Bord*dashboard-assy Includes 5 - 7.
6
269500725
Logement Ecrou *housing-nut As Includes 6 - 7.
7
232561600
Гайка стопорная эластичная 985-A2
8
207162560
Винт
9
234062600
Шайба
10
269500585
Support Jauge *support-gauge
11
211000098
Винт
12
211200007
Шайба
13
570276900
Bague Caout. *ring-rubber
14
269500694
Grille Adm. *grill-adm.
15
293750002
Стяжка 142мм
16
269500734
Miroir Droit *mirror-rh. Includes 16 - 27. Gtx Rfi 5648/5658 (gold).
269500767
Miroir Droit *mirror-rh. Gtx Rfi 5515/5516 (cozumel).
269500737
Miroir Gauche *mirror-lh. Gtx Rfi 5648/5658 (gold).
269500778
Miroir Gauche *mirror-lh. Gtx Rfi 5515/5516 (cozumel).
17
205087560
Винт DIN.912A2
18
232581600
Гайка
19
293550010
Graisse Synth. *grease-synth.
21
269500079
Rotule Miroir *mirror Joint
22
269500453
Ressort Miroir *spring-mirror
24
269500454
Miroir *mirror
25
207068060
Винт
26
207067060
Винт
28
269500738
Support D.peint*support Rh Gtx Rfi 5648/5658 (gold).
269500780
Support Droit *support Rh Gtx Rfi 5515/5516 (cozumel).
269500740
Support Gauche *support Lh Gtx Rfi 5648/5658 (gold).
269500782
Support Gauche *support-lh Gtx Rfi 5515/5516 (cozumel).
30
293720047
Support Jauge *support-gauge
31
269500660
Couv.bagage Inf*cover-stor.low
32
208661660
Винт
33
234161601
Шайба Din.127b-a2
34
234061600
Шайба
35
293250047
Anneau Neoprene*seal-neoprene
36
269700076
Couv.loquet *cover-latch
37
269700109
Loquet Assemble*latch Ass Y
38
269700077
Levier Loquet *lever-latch
39
269700017
Ressort Loquet *spring-latch
40
293800060
Фиксатор резьбы loctite-243
41
269700022111
Charniere Dr. *hinge-rh.
269700023111
Charniere Ga. *hinge-lh.
42
269700038
Charniere Couv.*hinge-cover
43
269700024
Axe Rotation *axle
44
293350016
Втулка уплотнительная
46
293800041
Appret Loctite *primer-loctite
47
207162060
Винт
48
269500261
Amortisseur *shock Includes 48 - 51.
49
291000919
Сапун
50
293750001
Стяжка 94 мм
51
211200034
Washer-aluminum
52
211400006
Pin Short
53
293370008
Стопорное кольцо
54
234081600
Шайба
55
207063560
Винт
56
269500269
Coffre Bag.av. *tray-front
57
269500606
Boitier Extinct*housing-exting
58
269500603
Cap Extincteur *cap-extinguish
60
269500604
Capuchon Rang. *cap-storage
61
293250037
Прокладка
62
293150033
Заклепка
63
234032600
Шайба
64
294000743
Trousse Outil *kit-tool Owner
65
293830005
Резиновый буфер
66
269500712
Enjoliveur Ga. *moulding-lh. Includes 66 - 67.
269500713
Enjoliveur Dr. *moulding-rh.
67
293100003
Гайка
68
205461660
Screw-socket Bn.hd.iso.7380a2
71
232061600
Гайка
72
278000857
Plaque Montage *plate-mounting
73
278001243
Boussole *compass Includes 73 - 77.
74
278000891
Клемма 4 контакта
75
278000220
Bloc 2 Circ.mal*housing-tab(m)
76
278000223
Электрическая клемма "мама"
77
278000218
Уплотнитель-провода
78
293730016
Пистон черный
79
278000851
Capteur Temp. *sensor-temp. Includes 79 - 82.
83
234000600
Шайба DIN.433A2 (отпуск.по 10 шт)
84
250100004
Nut-hex.plastic M10 X 1.5
85
293150008
Заклепка 3/16
86
234051500
Шайба
20
241141660
Screw-pt.hex.flange K40 X 16 (5.000 Per Pack)
23
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
29
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
36
269700109
Loquet Assemble*latch Ass Y
38
269700109
Loquet Assemble*latch Ass Y
59
269500606
Boitier Extinct*housing-exting
69
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
70
293800060
Клей loctite-243
80
278000220
Bloc 2 Circ.mal*housing-tab(m)
81
278000223
Cosse Femelle *terminal-femal (5.000 Per Pack)
82
278000218
Joint De Fil *seal-wire (10.000 Per Pack)
