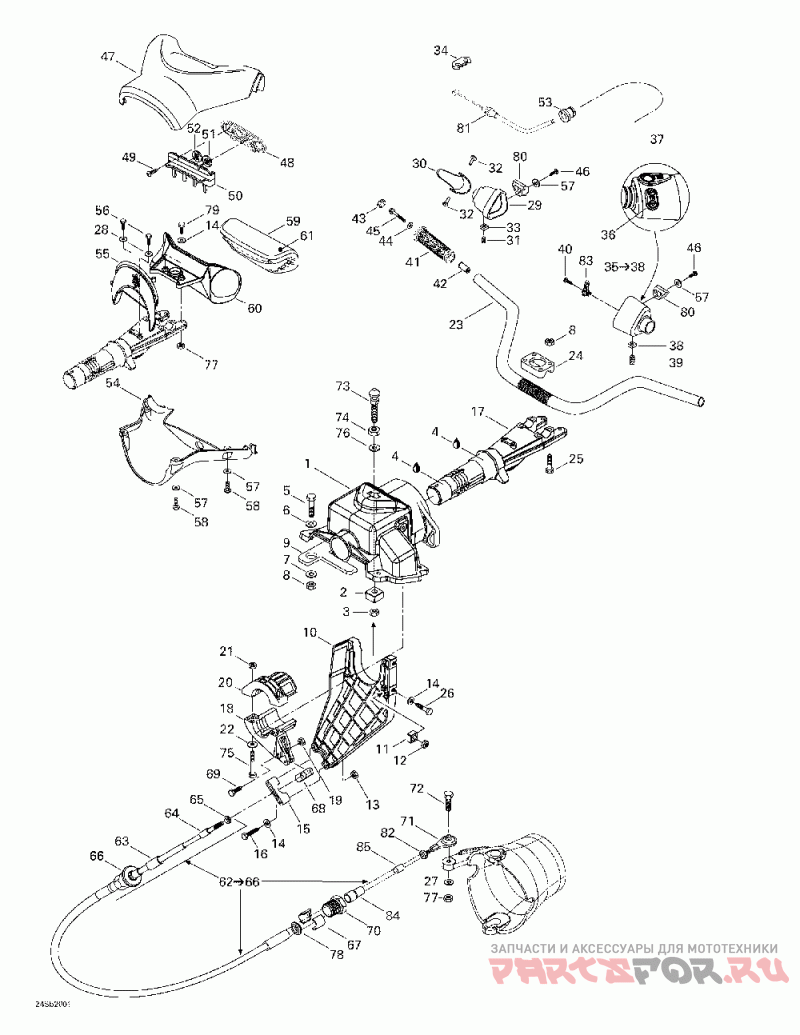

Рулевая система

Sea-Doo (Bombardier) GSX RFI, 5645/5654

Sea-Doo (Bombardier)
#oem кодцена
1
277000645
Support Direct.*support-steer. Includes 1 - 3.
2
271000598
Logement Ecrou *housing-nut Includes 2 - 3.
3
232501600
Гайка
4
293550010
Graisse Synth. *grease-synth.
5
207083560
Винт
6
234081600
Шайба
7
234082600
Шайба
8
232581650
Nut-stop Elastic Din.985a2 Wax/lube
9
293250069
Прокладка
10
277000516
Support Cable *support-cable Includes 10 - 13.
11
269500252
Logement Ecrou *housing-nut As Includes 11 - 12.
12
232561600
Гайка стопорная эластичная 985-A2
14
234061600
Шайба
15
277000162
Palier Support *thrust Support
16
207065060
Винт
17
277000562400
Tige Direction *stem-steering
18
277001472
Support *support Includes 18 - 19.
20
277001473
Palier Bras *thrust-arm Includes 20 - 21.
22
234062600
Шайба
23
277001450
Руль
24
277000142
Крепеж руля
25
207085060
Винт
26
207162060
Винт
29
277000872
Log.man.acc. *housing-thrott
30
277001485
Рычаг Газа
31
250000036
Винт M6x16
32
277000381
Палец
33
232860600
Гайка М6
34
277000279
Patte Verrouil.*lock-tab
35
277000877
Log.gauche Ass.*housing-assy. Includes 35 - 38.
36
277000497
Bouton De Vts *knob-vts
37
277000306
Bouton Inter. *knob-switch
40
209631360
Винт
41
295500691
Black Handle Grip Kit Includes 41 - 45.
43
277000203
Крышка ,черная
45
250000002
Винт
46
209630960
Винт
47
277000632
Couvre Guidon *cover-steering
48
277000688
Plaque Retenue *plate-retainer
49
241140060
Винт K40 X 10
50
277000563
Support Inter *support-switch
51
293000099
Bouton Set *knob-set
53
293720046
Люверс
54
277000811
Couvre Guidon *cover-stee.int
55
277000549
Plaque Mar.noir*plate-mar.blac
56
211000036
Винт
57
234051600
Шайба
58
241141660
Винт K40 X 16
59
277000627
Tampon Guidon *pad-handle Includes 59 - 61.
60
277000687
Support Tampon *support-pad
62
277001321
Cable Direction*cable-steering Includes 62 - 66.
63
277000846
Embout Grand *boot-large
64
277000849
Embout Petit *boot-small
65
211100056
Nut-hex. 1/4-28 Ss-304
66
277000782
Bouton Ajust. *knob-ajust.
67
277000783
Полукольцо
68
277001180
Шаровой наконечник
69
211000081
Винт
70
277000784
Стопор троса
71
277000775
Шаровой наконечник
72
207063060
Винт
73
291000689
Ergot D Ancrage*stud-latch
74
232100600
Гайка шестиугольная DIN.439B-A2
75
207162560
Винт
76
234002600
Шайба
80
293450153
Вставка
81
277000894
Трос газа
83
277001213
Пластина
1
277001471
Support Direct.*support-steer. Includes 1 - 3.
8
232581600
Nut-stop Elastic Din.985a2 (5.000 Per Pack)
10
277001522
Support Cable *support-cable Includes 10 - 13.
13
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
15
277001528
Palier Support *thrust Support
19
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
21
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
27
234061600
Washer-flat Din.125a-a2 (25.000 Per Pack)
28
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
30
277000872
Log.man.acc. *housing-thrott
38
232860600
Nut-square Thin M6 Din.562a2 (10.000 Per Pack)
39
250000036
Screw-socket Set M6x16 Ss304-a2 (5.000 Per Pack)
44
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
52
293000099
Bouton Set *knob-set (5.000 Per Pack)
64
277001582
Embout Petit *wiper Rod
67
277001527
Полукольцо
70
277001729
Стопор троса
77
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
79
207063060
Screw-hex.cap Din.931a2 (5.000 Per Pack)
82
211100056
Nut-hex. 1/4-28 Ss-304 (10.000 Per Pack)
84
277000846
Embout Grand *boot-large
85
277001582
Embout Petit *wiper Rod
