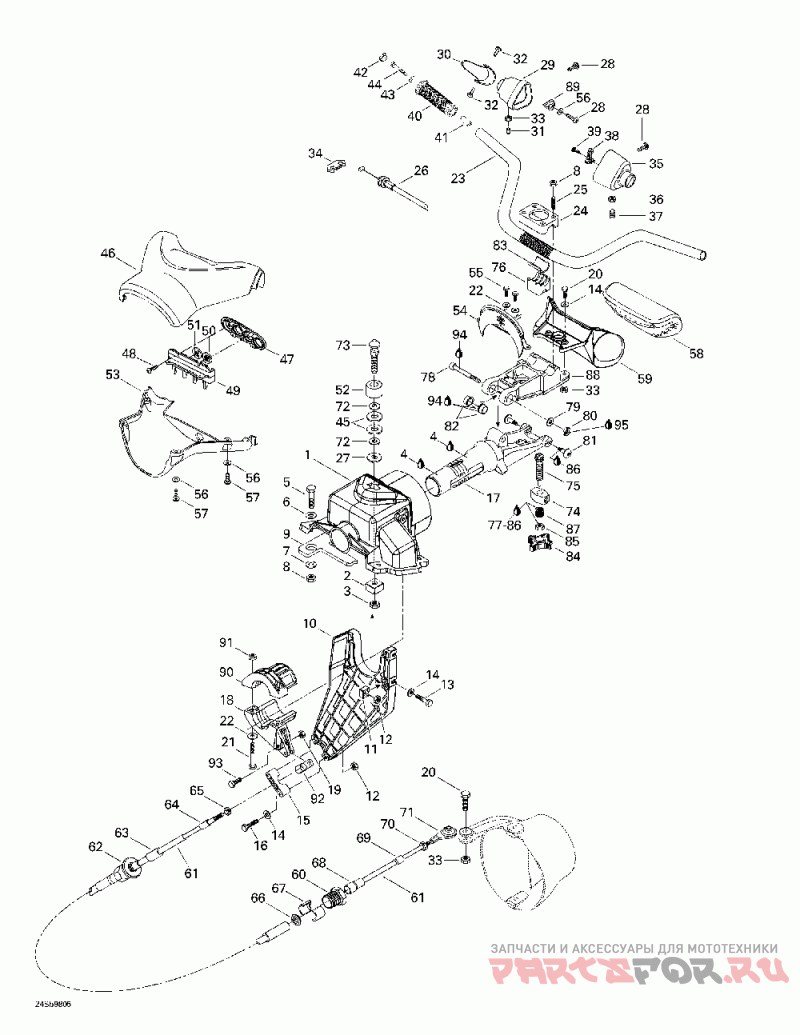

Рулевая система

Sea-Doo (Bombardier) GTX RFI, 5666/5843

Sea-Doo (Bombardier)
#oem кодцена
1
277001471
Support Direct.*support-steer. Includes 1 - 3.
2
271000598
Logement Ecrou *housing-nut Includes 2 - 3.
3
232501600
Гайка
4
293550010
Graisse Synth. *grease-synth.
5
207083560
Винт
6
234081600
Шайба
7
234082600
Шайба
8
232581600
Гайка
9
293250171
Прокладка
10
277000516
Support Cable *support-cable Includes 10 - 12.
11
269500252
Держатель гайки
12
232561600
Гайка стопорная эластичная 985-A2
13
207162060
Винт
14
234061600
Шайба
15
277000162
Palier Support *thrust Support
16
207065060
Винт
17
277000758400
Tige Direction *stem-steering
18
277001472
Support *support Includes 18 - 19.
20
207063060
Винт
21
207162560
Винт
22
234062600
Шайба
23
277000768
Руль
24
277000142
Крепеж руля
26
277000716
Трос газа
27
293450152
Вставка
28
209630960
Винт
29
232860600
Гайка М6
29
250000036
Винт M6x16
29
277000872
Log.man.acc. *housing-thrott
30
277001485
Рычаг Газа
31
206361260
Screw-set Socket Din.914a2
32
277000381
Палец
34
277000279
Patte Verrouil.*lock-tab
35
277000869
Log.gauche Ass.*housing-assy. Includes 35 - 37.
38
277000219
Plaque Retenue *plate-retainer
39
209631360
Винт
40
295500110
Black Handle Grip Kit Includes 40 - 44.
42
277000203
Крышка ,черная
44
243164560
Винт
45
291000628
Шайба
46
277000753
Couvre Guidon *cover-stee.sup Includes 46 - 51.
47
277000688
Plaque Retenue *plate-retainer
48
241140060
Винт K40 X 10
49
277000563
Support Inter *support-switch
50
293000099
Bouton Set *knob-set
52
293830025
Прокладка резиновая
53
277000765
Couvre Guidon *cover-stee.
54
277000766
Plaque Mar.noir*plate-mar.black
55
211000036
Винт
56
234051600
Шайба
57
241141660
Винт K40 X 16
58
277000723
Tampon Guidon *pad-handle Includes 58 - 59.
59
277000687
Support Tampon *support-pad
60
277000052
Стопор троса
61
277000769
Cable Direction*cable-steering Includes 61 - 65.
62
277000167
Bouton Ajust. *knob-ajust.
63
277000473
Embout Grand *boot-large
64
277000466
Embout Petit *boot-small
65
212100005
Nut-hexagonal
66
211100009
Шайба
67
277000055
Полукольцо
71
277000153
Шаровой наконечник
72
234002600
Шайба
73
291000664
Ergot D Ancrage*stud-latch
74
277000761
Bloc Filete *block
75
211000145
Screw-adjuster
76
277000762
Butee D Arret *stopper
77
293800041
Appret Loctite *primer-loctite
78
205207560
Screw-socket Hd.din.7984-a2
79
234000600
Шайба DIN.433A2 (отпуск.по 10 шт)
80
232100600
Гайка шестиугольная DIN.439B-A2
81
277000763
Pivot Filete *pivot-threaded
82
277000818
Douille D Appui*bushing-support
83
293830070
Tampon *rubber Pad
84
277000764
Poignee Ajust. *handle-adjus.
85
232180600
Jam Nut Hexagonal Din.439b-a2
86
293800060
Фиксатор резьбы loctite-243
87
277000786
Douille D Arret*bushing-stopper
88
277000796
Support Direct.*support Steer.
89
293450153
Вставка
90
277001473
Palier Bras *thrust-arm Includes 90 - 91.
92
277000646
Rotule *joint
93
211000081
Винт
95
293800005
Смазка Loctite 271
