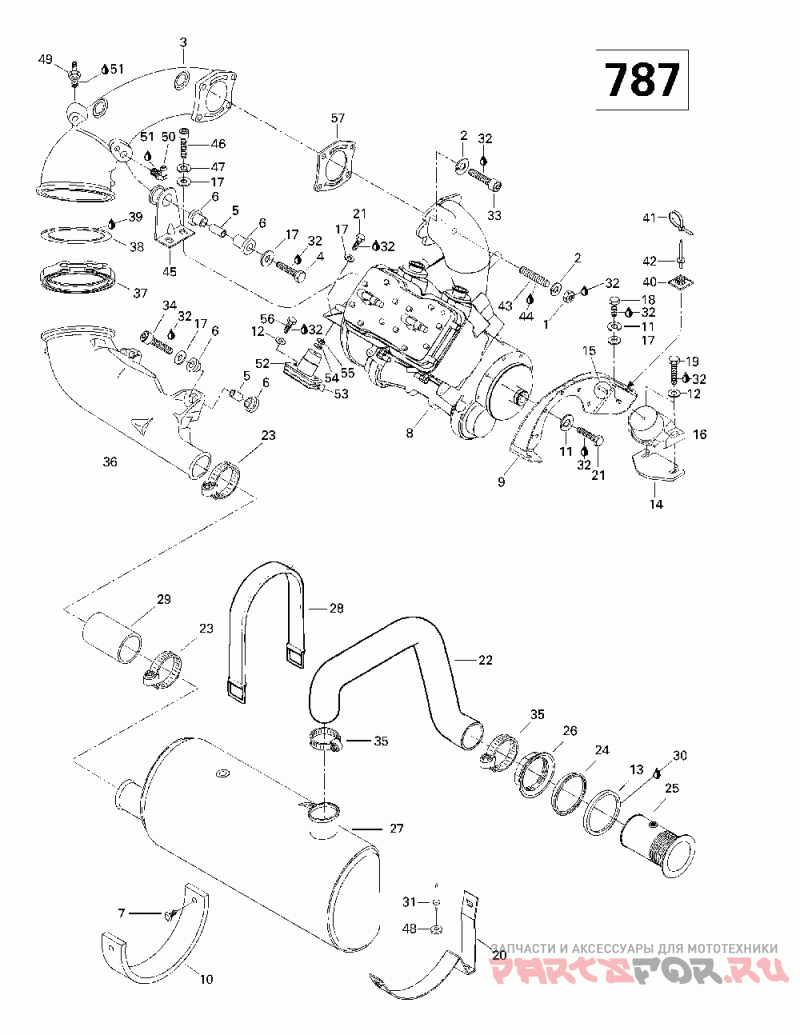

01- engine support and muffler (787)

Sea-Doo (Bombardier) SP, 5879

Sea-Doo (Bombardier)
#oem кодцена
1
232001600
Nut-hexagonal Din.934a2 Spx 5661/5834.
2
234100602
Washer-lock Spring Din.128a-a2 Spx 5661/5834.
3
274000941
Tuyau Collect. *pipe-head (incl. It. 48-51) Spx 5661/5834.
4
207084060
Screw-hex.cap Din.931a2 Spx 5661/5834.
5
274000254
Douille *bushing Spx 5661/5834.
6
293830036
Douille Caout. *bushing-rubber Spx 5661/5834.
7
293730011
Dard Noir *dart-black Spx 5661/5834.
9
270000359
Support Moteur *support-engine Spx 5661/5834.
10
293830055
Tampon Caout. *pad-rubber Spx 5661/5834.
11
234181601
Washer-lock Helical Din.127b-a2 Spx 5661/5834.
12
234081600
Washer-flat Din.125a-a2 Spx 5661/5834.
13
293250041
Joint Etanche *gasket Spx 5661/5834.
14
270000122
Cale Epaisseur *shim-0.3mm Spx 5661/5834.
270000123
Cale Epaisseur *shim-1.3mm. Spx 5661/5834.
15
207182560
Screw-hex.cap Din.933a2 Spx 5661/5834.
16
270000720
Tampon Ancrage *mount-rubber Spx 5661/5834.
17
234082600
Washer-flat Din.9021b-a2 Spx 5661/5834.
18
207181660
Screw-hex.cap Din.933a2 Spx 5661/5834.
19
207184060
Screw-hex.cap Din.933a2 Spx 5661/5834.
20
274000352
Support Echapp.*support-muffle Spx 5661/5834.
21
207182060
Screw-hex.cap Din.933a2 Spx 5661/5834.
22
274000355
Boyau Echapp. *hose-exhaust Spx 5661/5834.
23
293650036
Bride Serrage *clamp-tridon Spx 5661/5834.
24
274000225
Rondelle Stab. *washer-stabilizing Spx 5661/5834.
25
274000222
Sortie Echapp. *outlet-exhaust Spx 5661/5834.
26
274000224
Ecrou 72mm *nut-72mm Spx 5661/5834.
27
274000494
Silenc.echapp. *muffler-black Spx 5661/5834.
28
293850077
Sangle Retenue *strap-rubber Spx 5661/5834.
29
274000170
Boyau Raccord *hose-exhaust Spx 5661/5834.
31
293150037
Rivet Avdel *rivet-avdel 3/16 Spx 5661/5834.
32
293800060
Loctite 243 *loctite-243 Spx 5661/5834.
33
205003060
Screw-socket Hd.din.912a2 Spx 5661/5834.
34
205084060
Screw-socket Hd.din.912a2 Spx 5661/5834.
35
293650064
Bride Serrage *clamp-tridon Spx 5661/5834.
36
274000210
Tuyau Conique *pipe-cone Spx 5661/5834.
37
274000357
Bride Serrage *clamp-exhaust Spx 5661/5834.
38
274000169
Rondelle Cuivre*copper Washer Spx 5661/5834.
39
293800090
Enduit Etanche *sealant Spx 5661/5834.
40
293750015
Ancrage Tie Rap*mount-tie Rap Spx 5661/5834.
41
293750001
Tie Rap 94mm *tie-rap 94mm Spx 5661/5834.
42
293150016
Rivet-pop 1/8 *rivet-pop 1/8 Spx 5661/5834.
43
211300017
Stud-m10 Spx 5661/5834.
44
293800005
Loctite 271 *loctite-271 Spx 5661/5834.
45
274001104
Supp.tuyau *supp-pipe Spx 5661/5834.
46
205082060
Screw-socket Hd.din.912a2 Spx 5661/5834.
48
234052600
Washer-flat Din.9021b-a2 Spx 5661/5834.
49
293710021
Raccord Male *connector-male Spx 5661/5834.
50
293710048
Raccord Coude90*fitting-elbow Spx 5661/5834.
51
293800013
Scellant Tuyau *sealant-pipe Spx 5661/5834.
52
270000722
Tampon Ancrage *mount-rubber Spx 5661/5834.
54
270000024
Cale Epaisseur *shim-0.4mm Spx 5661/5834.
55
270000025
Cale Epaisseur *shim-1.3mm Spx 5661/5834.
56
207183060
Screw-hex.cap Din.933a2 Spx 5661/5834.
57
420931503
Exhaust Gasket Spx 5661/5834.
