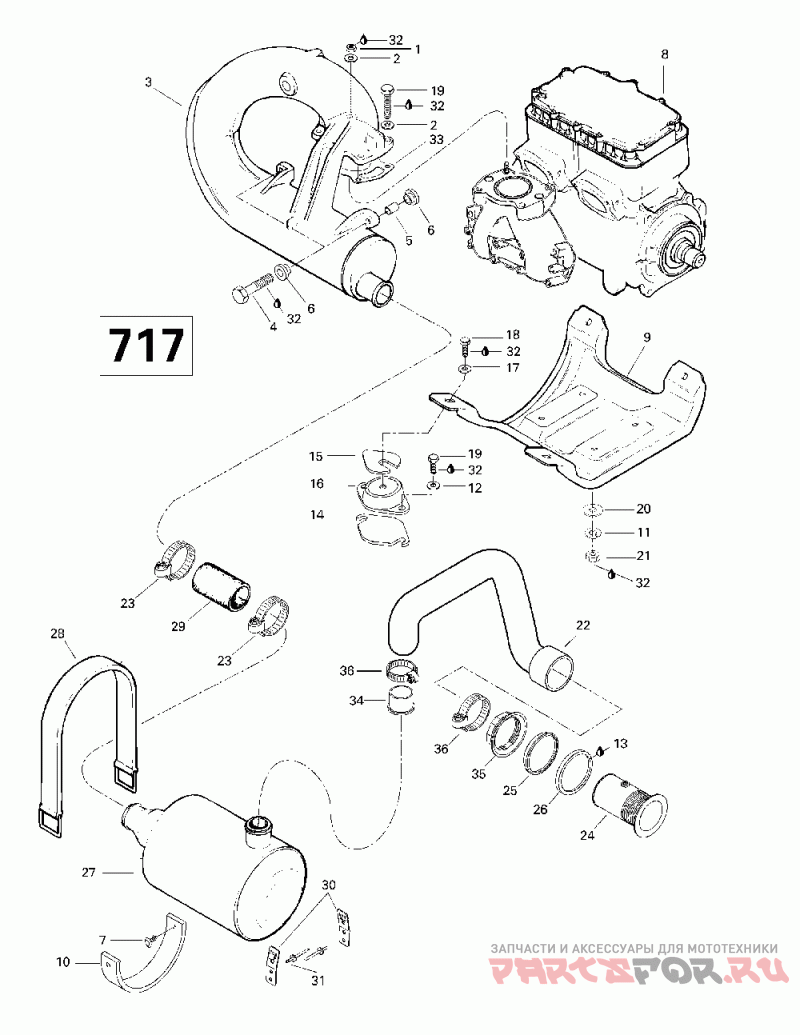

01- engine support and muffler (717)

Sea-Doo (Bombardier) SP, 5879

Sea-Doo (Bombardier)
#oem кодцена
1
232081600
Nut-hexagonal Din.934a2 Sp 5879.
2
293050001
Rondelle Plate *flat Washer Sp 5879.
3
274000374
Tuyau Echapp. *pipe-tuned Sp 5879.
4
207084060
Screw-hex.cap Din.931a2 Sp 5879.
5
274000114
Douille *bushing Sp 5879.
6
293830031
Douille Caout. *bushing-rubber Sp 5879.
7
293730006
Dard Noir *dart-black Sp 5879.
9
204250074
Support Moteur *support-eng.(painted) Sp 5879.
10
293830055
Tampon Caout. *pad-rubber Sp 5879.
11
234101601
Washer-lock Helical Din.127b-a2 Sp 5879.
12
234081600
Washer-flat Din.125a-a2 Sp 5879.
14
270000006
Cale Epaisseur *shim-0.40mm Sp 5879.
270000007
Cale Epaisseur *shim-1.3mm. Sp 5879.
15
270000024
Cale Epaisseur *shim-0.4mm Sp 5879.
270000025
Cale Epaisseur *shim-1.3mm Sp 5879.
16
270000425
Tampon Ancrage *mount-rubber Sp 5879.
17
234082600
Washer-flat Din.9021b-a2 Sp 5879.
18
207182060
Screw-hex.cap Din.933a2 Sp 5879.
19
207183060
Screw-hex.cap Din.933a2 Sp 5879.
20
234001600
Washer-flat Din.125a-a2 Sp 5879.
21
232001600
Nut-hexagonal Din.934a2 Sp 5879.
22
274000228
Boyau Echapp. *hose-exhaust Sp 5879.
23
293650036
Bride Serrage *clamp-tridon Sp 5879.
24
274000222
Sortie Echapp. *outlet-exhaust Sp 5879.
25
274000225
Rondelle Stab. *washer-stabilizing Sp 5879.
26
293250041
Joint Etanche *gasket Sp 5879.
27
274000491
Silenc.echapp. *muffler-black Sp 5879.
28
293850077
Sangle Retenue *strap-rubber Sp 5879.
29
274000032
Boyau Raccord *hose-exhaust Sp 5879.
30
293850024
Pince Courroie *clip-strap Sp 5879.
31
293150037
Rivet Avdel *rivet-avdel 3/16 Sp 5879.
32
293800060
Loctite 243 *loctite-243 Sp 5879.
33
420950253
Exhaust Gasket Sp 5879.
34
274000383
Adap.boyau *adap-hose Sp 5879.
35
274000224
Ecrou 72mm *nut-72mm Sp 5879.
36
293650064
Bride Serrage *clamp-tridon Sp 5879.
