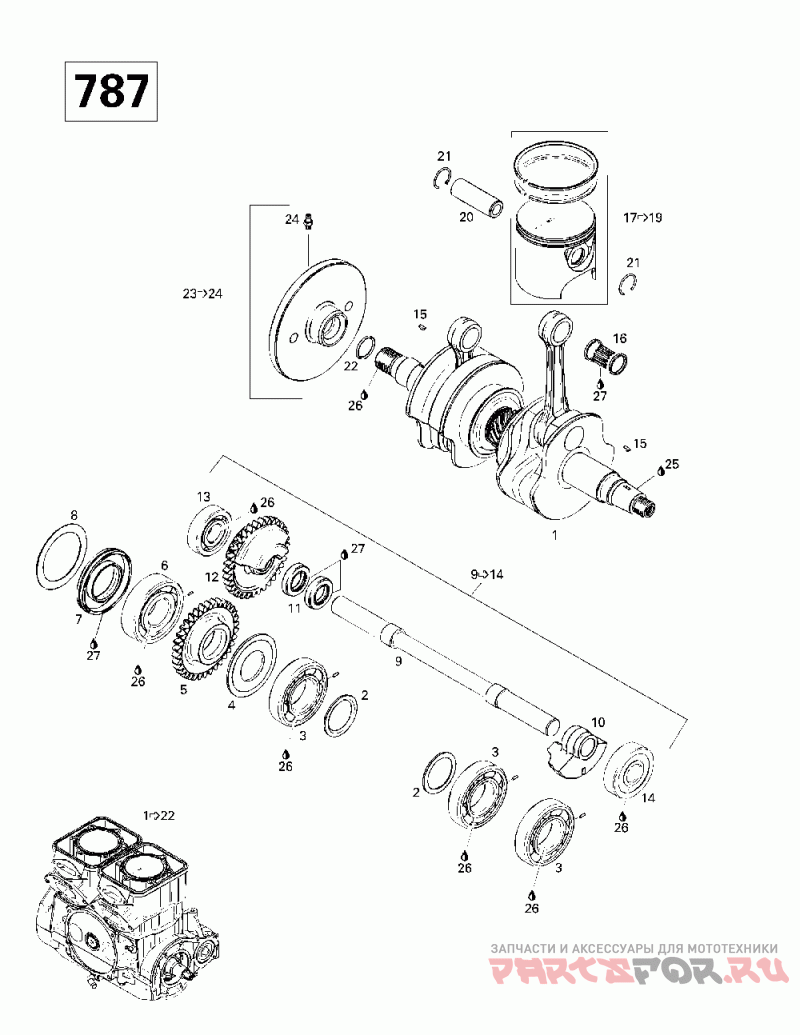

01- crankshaft and pistons (787)

Sea-Doo (Bombardier) SP, 5879

Sea-Doo (Bombardier)
#oem кодцена
1
421000100
Ens.carter-cyl.*short Block 787 Includes 1 - 22. Spx 5661/5834.
1
420837392
Shaft-pump Oil Includes 1 - 6. Spx 5661/5834.
2
420827760
Bague Ecart. *ring-distance Spx 5661/5834.
3
420832573
Roulement Bille*ball Bearing Spx 5661/5834.
4
420926140
Rondelle Labyr.*washer-labyrin Spx 5661/5834.
5
420834315
Gear-balance Spx 5661/5834.
6
420932579
Ball Bearing Spx 5661/5834.
7
420830638
Anneau Etanche *seal-oil Spx 5661/5834.
8
420926060
Cale De Retenue*shim-retaining Spx 5661/5834.
9
420837406
Shaft-bal.assy Includes 9 - 14. Spx 5661/5834.
13
420932095
Ball Bearing Spx 5661/5834.
14
420932098
Roulement Bille*ball Bearing Spx 5661/5834.
15
420246055
Clavette *key-woodruff Spx 5661/5834.
16
420832421
Roul.aiguille *needle Bearing Spx 5661/5834.
17
420887300
Piston Ass. 81.89mm *piston-assy. Includes 17 - 19. Spx 5661/5834.
420887301
Piston Ass. 82.14mm *piston-assy. Spx 5661/5834.
18
420815080
Segment R 82.00*r-ring 82.00 Spx 5661/5834.
420815081
Segment R 82.25*r-ring 82.25 Spx 5661/5834.
19
420815100
Segment L 82.00*l-ring 82.00 Spx 5661/5834.
420815101
Segment L 82.25*l-ring 82.25 Spx 5661/5834.
20
420916404
Piston Pin Spx 5661/5834.
21
420845100
Circlip #20 *circlip-#20 Spx 5661/5834.
22
420430782
Joint Torique *o Ring Spx 5661/5834.
23
420958057
Volant Inertie *clutch-fly.pto Includes 23 - 24. Spx 5661/5834.
24
420499113
Graisseur *fitting-grease Spx 5661/5834.
25
293800060
Loctite 243 *loctite-243 Spx 5661/5834.
27
413707000
Dow Corning 111*dow Corning 111 Spx 5661/5834.
28
420886390
Ens.joint Etanc*set-gasket Spx 5661/5834.
29
420886396
Set-gasket Cyl Spx 5661/5834.
30
413802900
Масло минеральное 2Т 1 литр Х12 шт
