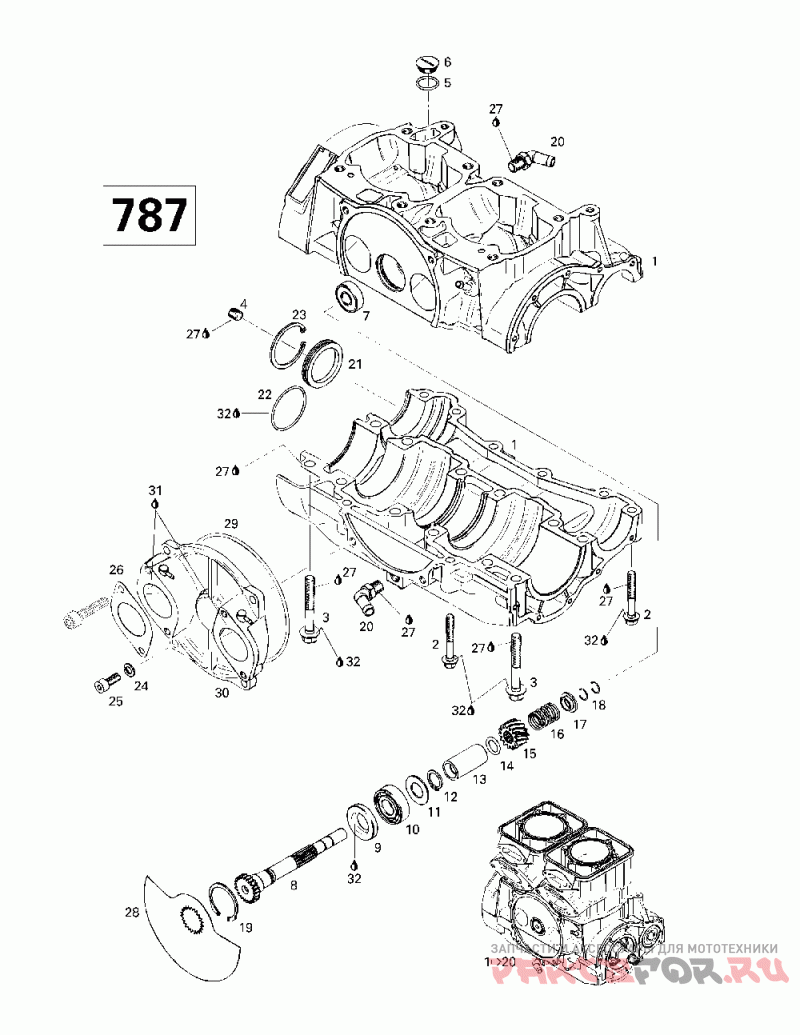

01- crankcase, rotary valve (787)

Sea-Doo (Bombardier) SP, 5879

Sea-Doo (Bombardier)
#oem кодцена
1
421000100
Ens.carter-cyl.*short Block 787 Includes 1 - 20. Spx 5661/5834.
1
420891140
Carter Moteur *crankcase-assy Includes 1 - 6. Spx 5661/5834.
2
420240328
Screw-hex.flan Spx 5661/5834.
3
420941333
Vis Hex.flasque*screw-hex.flan Spx 5661/5834.
4
420240483
Bouchon Purge *plug-drain Spx 5661/5834.
5
420250890
Joint Torique *o-ring Spx 5661/5834.
6
420241801
Bouchon Purge *plug Screw Spx 5661/5834.
7
420932797
Roulement Bille*ball Bearing Spx 5661/5834.
8
420837352
Shaft-rotary Spx 5661/5834.
9
420930580
Anneau Etanche *seal-oil Spx 5661/5834.
10
293350051
Roulement Bille*ball Bearing Spx 5661/5834.
11
420227439
Cale Epaisseur *shim Spx 5661/5834.
12
420845450
Bague D Arret *ring-lock Spx 5661/5834.
13
420847287
Manchon Ecart. *sleeve-distanc Spx 5661/5834.
14
293300024
Joint Torique *o-ring Spx 5661/5834.
15
420935736
Roue Dentee 14d*sprocket 14th Spx 5661/5834.
16
420938810
Ressort *spring Spx 5661/5834.
17
420827430
Siege Ressort *seat-spring Spx 5661/5834.
18
420845160
Circlip *circlip Spx 5661/5834.
19
420845260
Bague D Arret *ring-lock Spx 5661/5834.
20
420922242
Tube Angulaire *tube-angular Spx 5661/5834.
21
420810745
Couvercle *cover Spx 5661/5834.
22
420230300
Joint Torique *o-ring Spx 5661/5834.
24
234180602
Washer-lock Spring Din.128a-a2 Spx 5661/5834.
25
205082060
Screw-socket Hd.din.912a2 Spx 5661/5834.
26
293250134
Joint Etanche *gasket Spx 5661/5834.
27
293800038
Loctite 518 *loctite-518 Spx 5661/5834.
28
420924502
Valve Rotative *valve-rotary Spx 5661/5834.
29
420831767
Joint Torique *o-ring Spx 5661/5834.
30
420811306
Couvercle Rotar*cover-rotary Spx 5661/5834.
32
413707000
Dow Corning 111*dow Corning 111 Spx 5661/5834.
33
420886390
Ens.joint Etanc*set-gasket Spx 5661/5834.
