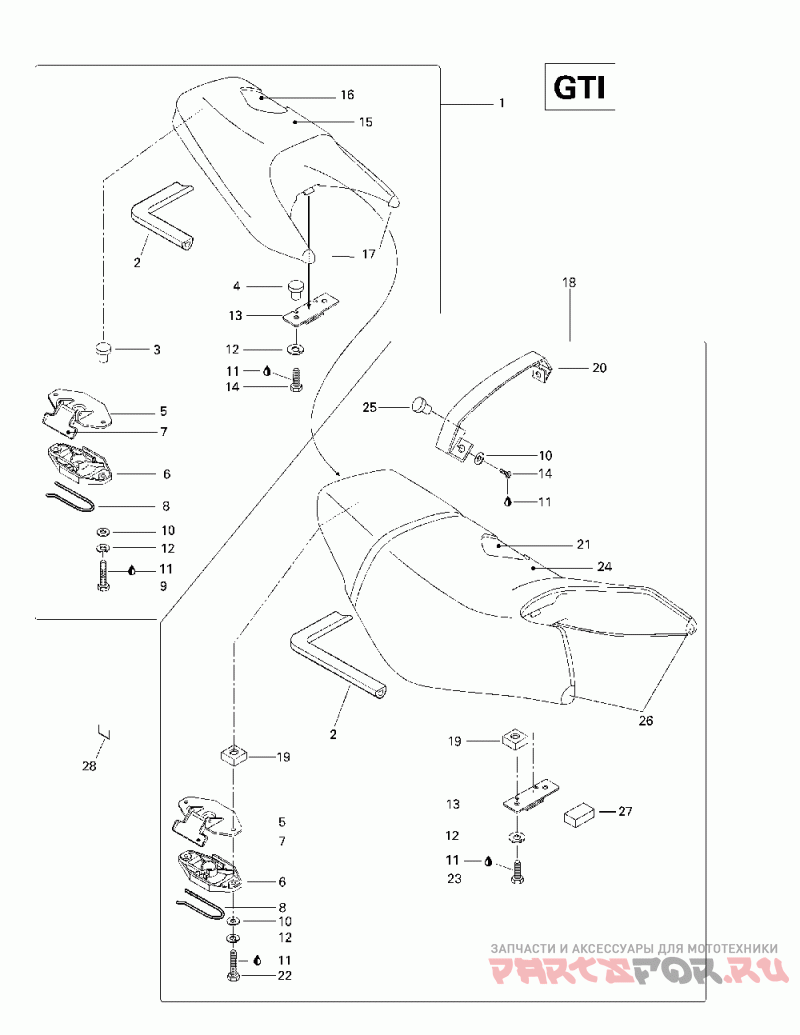

09- seat and engine cover (gti)

Sea-Doo (Bombardier) GTI, 5641

Sea-Doo (Bombardier)
#oem кодцена
1
269000436
Siege Arr.ass. *seat-yellow Includes 1 - 17. Gti 5641.
2
293200093
Anneau Neoprene*neoprene Seal Gti 5641.
4
211100035
Threaded Insert Gti 5641.
5
269700076
Couv.loquet *cover-latch Gti 5641.
6
269700109
Loquet Assemble*latch Ass Y Gti 5641.
7
269700077
Levier Loquet *lever-latch Gti 5641.
8
269700017
Ressort Loquet *spring-latch Gti 5641.
9
207163560
Screw-hex.cap Din.933a2 Gti 5641.
10
234061600
Washer-flat Din.125a-a2 Gti 5641.
11
293800060
Loctite 243 *loctite-243 Gti 5641.
12
234161601
Washer-lock Helical Din.127b-a2 Gti 5641.
13
291000174
Reteneur Base *keeper-base Gti 5641.
14
207161660
Screw-hex.cap Din.933a2 Gti 5641.
15
269000437
Housse Siege Ar*cover-seat Rea Gti 5641.
16
269000353
Mousse Arriere *foam-rear Gti 5641.
17
269000438
Coin Siege Dr. *corner-seat Rh Gti 5641.
269000439
Coin Siege Ga. *corner-seat Lh Gti 5641.
18
269000440
Siege Avant Ass*seat-yellow Includes 18 - 27. Gti 5641. (incl. 2, 5, 6, 7, 8, 10, 11, 12, 13, 14)
19
269500252
Logement Ecrou *housing-nut As Gti 5641.
20
269000442
Sangle De Siege*strap-yellow Gti 5641.
21
269000358
Mousse Avant *foam-front Gti 5641.
22
207163060
Screw-hex.cap Din.933a2 Gti 5641.
23
207162060
Screw-hex.cap Din.933a2 Gti 5641.
24
269000441
Housse Siege Av*cover-seat Fro Gti 5641.
25
293100003
Ecrou A Souder *nut-weld. Gti 5641.
26
269000459
Coin Siege *corner-seat Gti 5641.
27
269000446
Butee Caout. *stopper-rubber Gti 5641.
28
293730005
Agrafe Monelle *staple-monelle Gti 5641.
