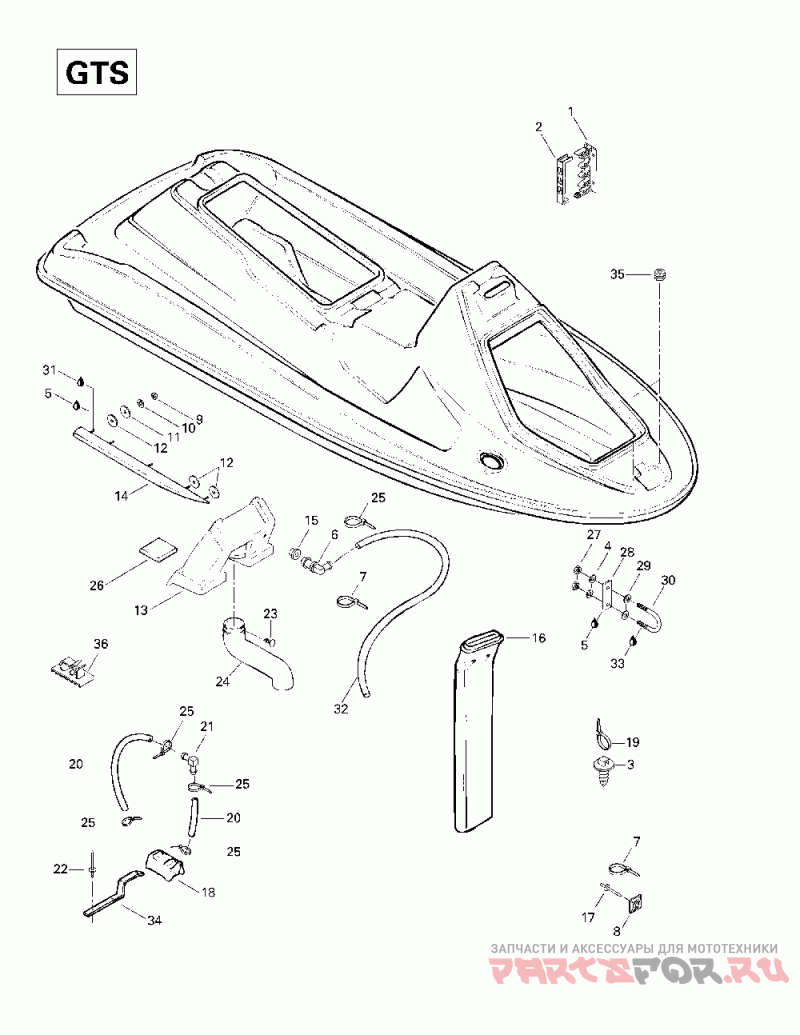

09- body (gts)

Sea-Doo (Bombardier) GTI, 5641

Sea-Doo (Bombardier)
#oem кодцена
1
293750013
Ancrage Attache*mount-tie Gts 5818.
1
293150034
Rivet Avdel *rivet-avdel Gts 5818.
2
291000523
Tapis Droit *carpet-rh. Gts 5818.
2
293750012
Couv.attache *top-mount Tie Gts 5818.
291000524
Tapis Gauche *carpet-lh. Gts 5818.
3
293730018
Dard D Ancrage *dart-mount Gts 5818.
4
234181601
Washer-lock Helical Din.127b-a2 Gts 5818.
3
291000525
Tapis Centre *carpet-center Gts 5818.
4
232081600
Nut-hexagonal Din.934a2 Gts 5818.
6
293710023
Raccord Coude90*fitting-elbow Gts 5818.
5
291000307
Plaque Retenue *plate-retainer Gts 5818.
6
293050001
Rondelle Plate *flat Washer Gts 5818.
7
293750002
Tie Rap 142mm *tie-rap 142mm Gts 5818.
8
293750015
Ancrage Tie Rap*mount-tie Rap Gts 5818.
7
292000063
Bride En U *u-clamp Gts 5818.
8
293150013
Rivet-pop 3/16 *rivet-pop 3/16 Gts 5818.
9
232061600
Nut-hexagonal Din.934a2 Gts 5818.
10
234161601
Washer-lock Helical Din.127b-a2 Gts 5818.
9
291000394
Coin Pare-chocs*corner-bumper Gts 5818.
10
291000508
Pare-chocs Arr.*bumper-rear Gts 5818.
11
234062600
Washer-flat Din.9021b-a2 Gts 5818.
12
293250026
Joint Etanche *gasket Gts 5818.
11
204050279
Moulure Parecho*trim-bumper/rear Gts 5818.
12
204050271
Moulure Parecho*trim-bump.side Gts 5818.
13
291000234
Chicane Ventil.*baffle-vent Gts 5818.
14
292000268
.stabilisat.dr. *sponson-rh. Gts 5818.
14
292000269
Stabilisat.ga. *sponson-lh. Gts 5818.
13
291000507
Pare-chocs Lat.*bumper-side Gts 5818.
15
570135100
Passe-fils *grommet Gts 5818.
15
293150014
Rivet-pop 3/16 *rivet-pop 3/16 Gts 5818.
16
291000528
Grille Arr.viol*grill-int.rear Gts 5818.
16
291000332
Boyau Ventilat.*hose-vent Gts 5818.
17
293150033
Rivet-pop 1/8 *rivet-pop 1/8 Gts 5818.
17
293800060
Loctite 243 *loctite-243 Gts 5818.
18
291000223
Nez Pare-chocs *nose-bumper Gts 5818.
18
292000688
Tamis Declenche*screen-bailer Gts 5818.
19
414115200
Tie-rap 180 Mm Gts 5818.
19
207162060
Screw-hex.cap Din.933a2 Gts 5818.
20
295500162
Grab Handle Kit Violet Gts 5818.
20
275000007
Boyau 8mm. *hose-8mm. Gts 5818.
21
293710057
Raccord Coude90*fitting-elbow Gts 5818.
21
293750008
Tie Rap 350mm *tie-rap 350mm Gts 5818.
22
293150036
Rivet-pop 1/8 *rivet-pop 1/8 Gts 5818.
22
293150037
Rivet Avdel *rivet-avdel 3/16 Gts 5818.
23
293730006
Dard Noir *dart-black Gts 5818.
23
292000187
Bouchon Purge *plug-drain Gts 5818.
24
291000726
Boyau Vent.arr.*hose-vent Rear Gts 5818.
25
293750001
Tie Rap 94mm *tie-rap 94mm Gts 5818.
25
204130080
Rivet Plastiq.*rivet-plastic Gts 5818.
26
291000185
Flotteur *float Gts 5818.
27
293800005
Loctite 271 *loctite-271 Gts 5818.
28
291000339
Bouchon Parecho*plug-bumper Gts 5818.
29
291000426
Plaque Finition*plate-finition Gts 5818.
30
292000011
Bride En U *u-clamp Gts 5818.
31
295500282
Mirror Rh.kit Includes 31 - 37. Gts 5818.
295500283
Mirror Lh.kit Gts 5818.
32
415110000
Boyau Polyure *hose-polyurethane Gts 5818.
32
291000679
Plaque Renf.dr.*plate-reinf.rh Gts 5818.
291000680
Plaque Sout.ga.*plate-reinf.lh Gts 5818.
34
292000392
Pince Ressort *clip-spring Gts 5818.
35
293720035
Passe-fils *grommet Gts 5818.
34
234061600
Washer-flat Din.125a-a2 Gts 5818.
36
293750005
Attache Collier*tie-clamp Gts 5818.
36
293250032
Joint Etanche *gasket-lh. Gts 5818.
293250035
Joint Etanche *gasket-rh Gts 5818.
37
291000785
Plaque Support *plate-support Gts 5818.
38
293000014
Capuchon Press.*cap-snap Black Gts 5818.
40
293250030
Joint Etanche *gasket Gts 5818.
41
211000021
Screw-tri.plask Pan.hd.phil. Gts 5818.
