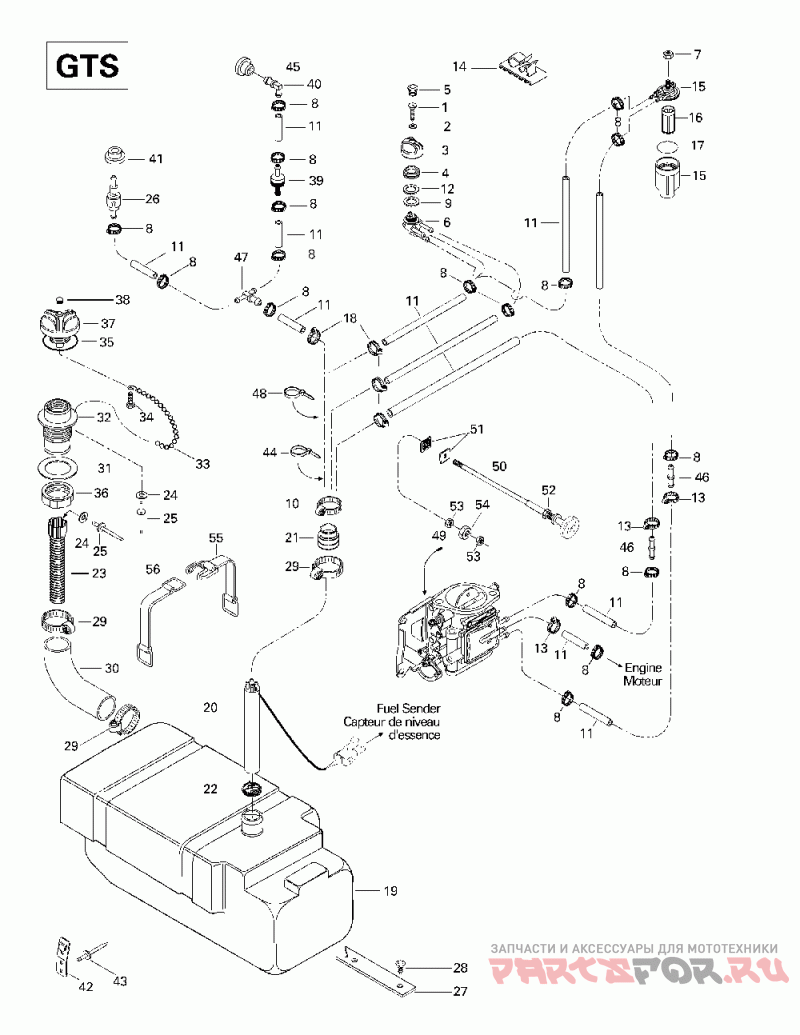

02- fuel system (gts)

Sea-Doo (Bombardier) GTI, 5641

Sea-Doo (Bombardier)
#oem кодцена
1
208640860
Screw-pan Hd.ph.din.7985a-a2 Gts 5818.
2
234040600
Washer-flat Din.433a2 Gts 5818.
3
275500299
Bouton Valve Es*knob-valv.fuel Gts 5818.
4
212100009
Nut-hex.plastic Gts 5818.
5
275500241
Bouchon Bouton *plug-cap Fuel Valve Gts 5818.
6
275500098
Soupape Essence*valve-fuel Gts 5818.
7
232561600
Nut-stop Elastic Din.985-a2 Gts 5818.
8
293650042
Bride Serrage *clamp-oetiker Gts 5818.
9
293250004
Joint Etanche *gasket Gts 5818.
10
293650035
Bride Serrage *clamp-tridon Gts 5818.
11
275500139
Boyau 6mm. *hose-6mm. Gts 5818.
12
293250005
Joint Etanche *gasket Gts 5818.
13
293650170
Bride Serrage *hose Clamp Gts 5818.
14
293750005
Attache Collier*tie-clamp Gts 5818.
15
275500088
Filtre Ess.ass.*filter-fuel As Includes 15 - 17. Gts 5818.
16
275500089
Filtre Essence *filter-fuel Gts 5818.
17
275500090
Joint Torique *o-ring Gts 5818.
19
275500183
Reservoir Ess. *tank-fuel Gts 5818.
20
275500470
Chicane Triage *baffle-pick Up Includes 20 - 22. Gts 5818.
21
275500111
Adap.tube Ess. *adap-tube Fuel Gts 5818.
22
275500397
Filtre Essence *filter-fuel Gts 5818.
23
275500316
Boyau Remp.int.*hose-fil.neck Gts 5818.
24
234032600
Washer-flat Din.9021b-a2 Gts 5818.
25
293150032
Rivet-pop 1/8 *rivet-pop 1/8 Gts 5818.
26
275500479
Soupape Retenue*valve-check Gts 5818.
27
293830033
Tampon Caout. *pad-rubber Gts 5818.
28
293730006
Dard Noir *dart-black Gts 5818.
29
293650023
Bride Serrage *clamp-tridon Gts 5818.
30
275500211
Boyau Remp.ext.*hose-fil.neck Gts 5818.
31
293250029
Joint Etanche *gasket Gts 5818.
32
275500247
Goulot Remplis.*neck-filler Gts 5818.
33
275500015
Chaine Bouchon *chain-cap Oil Gts 5818.
34
241140060
Screw-pt.hex.flange K40 X 10 Gts 5818.
35
293250017
Joint Etanche *gasket Gts 5818.
36
211100012
Nut-neck Filler Fuel Gts 5818.
37
275500430
Bouchon Ess.sub*cap-fuel Sub. Includes 37 - 38. Gts 5818.
38
293000034
Capuchon Press.*cap-snap Black Gts 5818.
39
275500398
Soupape Retenue*valve-check Gts 5818.
40
414580700
Raccord Male *connector-male Gts 5818.
41
293720029
Passe-fils *grommet Gts 5818.
42
293850024
Pince Courroie *clip-strap Gts 5818.
43
293150037
Rivet Avdel *rivet-avdel 3/16 Gts 5818.
44
293750008
Tie Rap 350mm *tie-rap 350mm Gts 5818.
45
570135100
Passe-fils *grommet Gts 5818.
46
293710039
Raccord Droit *fitting-straig Gts 5818.
47
293710024
Raccord En T *fitting-t Gts 5818.
48
414115200
Tie-rap 180 Mm Gts 5818.
49
206540660
Screw-set Socket Din.916a2 Gts 5818.
50
270000295
Ble Etrang. *cable-choke Includes 50 - 52. Gts 5818.
51
291000457
Plaque Etrang. *plate-choke Gts 5818.
52
211100030
Nut-hexagonal Hi-lex Gts 5818.
53
232160600
Nut-jam Hexagonal Din.439b-a2 Gts 5818.
54
211100007
Nut-hexagonal Hi-lex Gts 5818.
55
293850037
Sangle Res.ess.*strap-fuel Tank Gts 5818.
56
293850082
Sangle Ass`e *strap Ass`y Gts 5818.
